BAG2-180 Stelelementen
BAG2-180 1
BAG2-180 2

BAG2-180
Stelelementen

Bekijk volledig
__logo__INOX__ __logo__RoHS__ __logo__PA__ __logo__g10030__

Omschrijving

1Main specifications

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Standard executions

  • BAG2-180-A: zinc-plated steel M10 screws, nuts and washers.
  • BAG2-180-SST: AISI 304 stainless steel M10 screws, nuts and washers.

Assembly on levelling elements

The bipod support bases are supplied with brass bosses, threaded pass-through hole for the assembly of the stem of the levelling element series LS.A, LV.A, LV.F.

2General information

Features

The absence of cavities and the slightly round shapes offer modern and elegant aesthetics and guarantee the easy cleaning.

Maximum tightening torque for screw assembly 35 Nm.

Uitvoering

BAG2-180
BAG2-180 Stelelement , Technopolymeer
Sleep voor meer info
Toon alleen voorraad
Filters resetten 		Filter:

Code

Product omschrijving

Aantal

Prijs

Bestel

CAD
201306150 BAG2-180-42-42-A
€ 33,99
201306155 BAG2-180-42-42-SST
€ 35,97
201306160 BAG2-180-48-42-A
€ 33,99
201306165 BAG2-180-48-42-SST
€ 35,97
201306170 BAG2-180-48-48-A
€ 33,99
201306175 BAG2-180-48-48-SST
€ 35,97
201306180 BAG2-180-60-42-A
€ 33,99
201306185 BAG2-180-60-42-SST
€ 35,97
201306190 BAG2-180-60-48-A
€ 33,99
201306195 BAG2-180-60-48-SST
€ 35,97

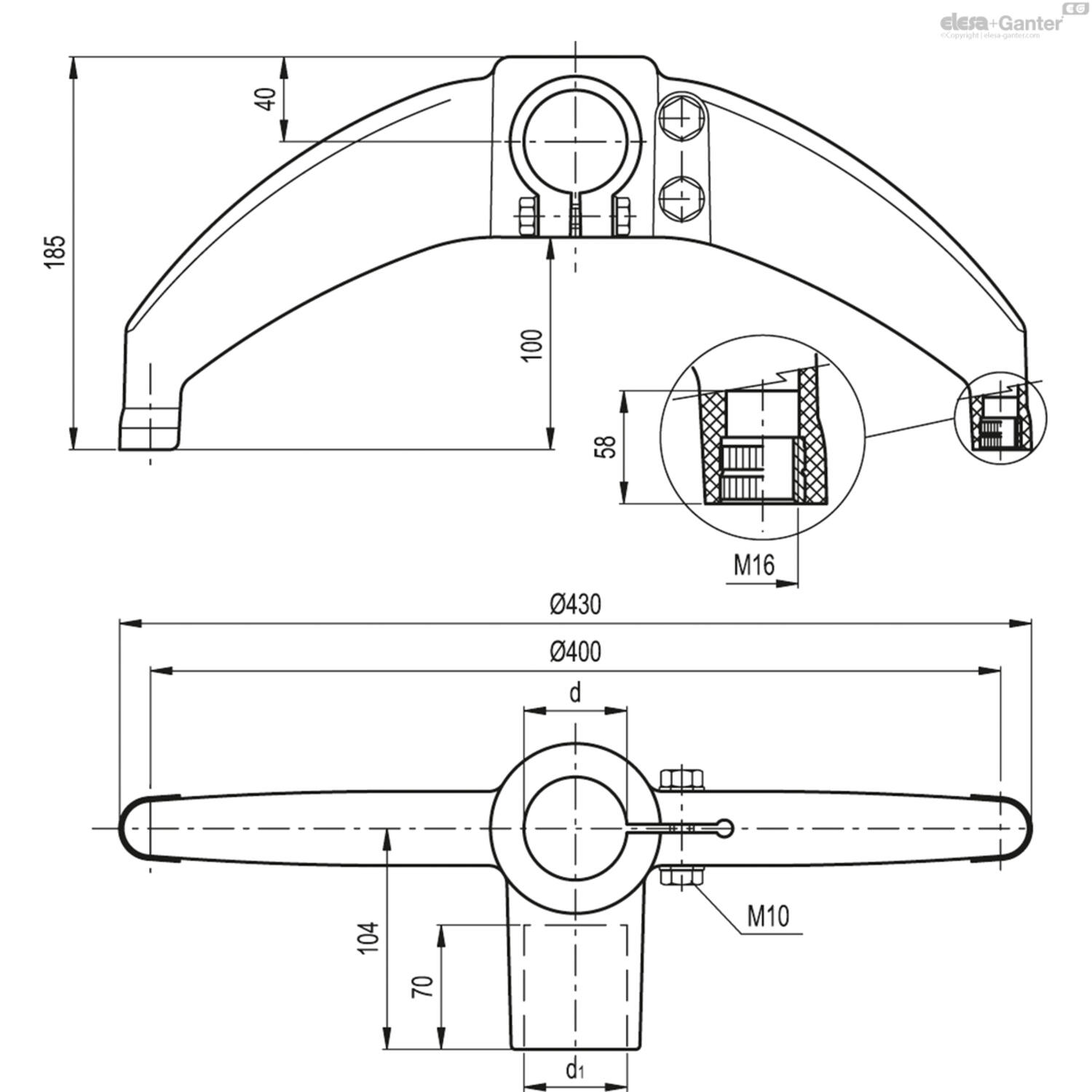

D1

d1 buis (BSP/GAS)

Gewicht (g)

d1

D buis

d buis (BSP/GAS)
42.4 1"1/4 720 42.4 42.4 1"1/4
42.4 1"1/4 720 42.4 42.4 1"1/4
n.v.t. 1"1/4 710 42.4 48.3 1"1/2
n.v.t. 1"1/4 710 42.4 48.3 1"1/2
n.v.t. 1"1/2 700 48.3 48.3 1"1/2
n.v.t. 1"1/2 700 48.3 48.3 1"1/2
n.v.t. 1"1/4 690 42.4 60.3 2"
n.v.t. 1"1/4 690 42.4 60.3 2"
n.v.t. 1"1/2 680 48.3 60.3 2"
n.v.t. 1"1/2 680 48.3 60.3 2"
