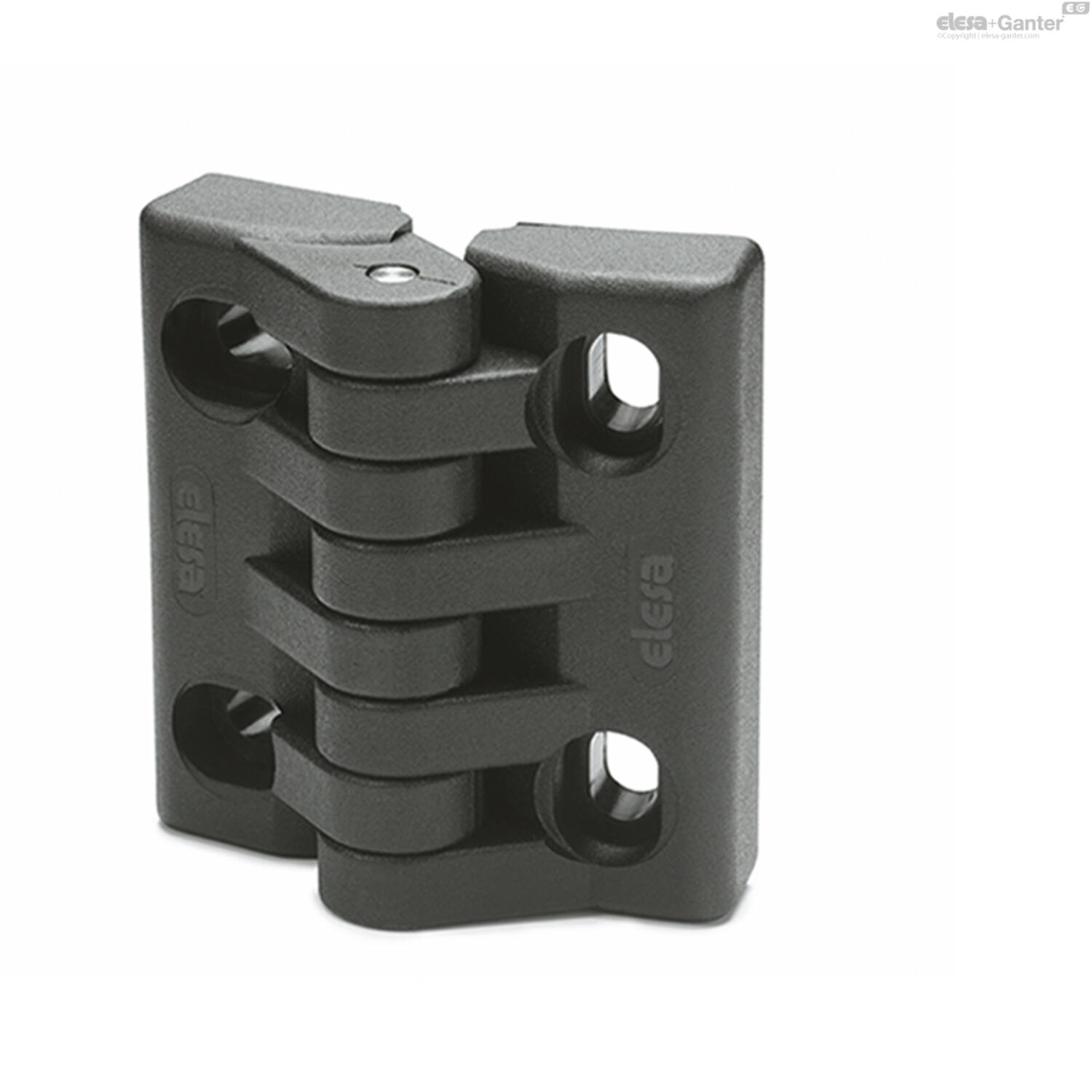

CFA-SL Verstelbare scharnieren
CFA-SL-H 1

CFA-SL
Verstelbare scharnieren

Zeer veerkrachtig techno-polymeer op polyamide (PA) basis, as: RVS (AISI 303)

Bekijk volledig
__logo__profile__ __logo__RoHS__ __logo__PA__ __logo__g8020__ __logo__FM__

Omschrijving

1Main specifications

Material

High-resilience polyamide based (PA) technopolymer, black colour, matte finish.

Rotating pin

AISI 303 stainless steel.

Standard executions

Pass-through slotted holes for cylindrical head screws which allow the adjustment during assembly.

  • CFA-SL-H: for horizontal adjustments.
  • CFA-SL-V: for vertical adjustments.
  • CFA-SL-HV: for both horizontal and vertical adjustments.
2General information

Rotation angle (approximate value)

Max 215° (-35° and +180° being 0° the condition where the two interconnected surfaces are on the same plane).

Do not exceed the rotation angle limit so as not to prejudice the hinge mechanical performance.

To choose the convenient type and the right number of hinges for your application, see the Guidelines.



Resistance tests
AXIAL STRESSRADIAL STRESS90° ANGLED STRESS
Maximum working load
Ea [N]		Load at breakage
Ra [N]		Maximum working load
Er [N]		Load at breakage
Rr [N]		Maximum working load
E90 [N]		Load at breakage
R90 [N]
510528049057902603190

Uitvoering

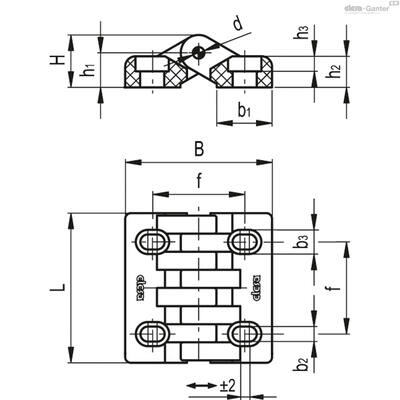

CFA-SL-H
CFA-SL-H Scharnier, kunststof, RVS as, met doorlopende verzonken montagesleufgaten, voor horizontale verstelling
CFA-SL-V
CFA-SL-V Scharnier, kunststof, RVS as, met doorlopende verzonken montagesleufgaten, voor verticale verstelling
CFA-SL-HV
CFA-SL-HV Scharnier, kunststof, RVS as, met doorlopende verzonken montagesleufgaten, voor horizontale en verticale verstelling
Sleep voor meer info
Toon alleen voorraad
Filters resetten 		Filter:

Code

Product omschrijving

Aantal

Prijs

Bestel

CAD
201400101 CFA.65-SL-H
€ 6,22

b2

h2

L

f

Gewicht (g)

d

b1

h1

h3

b3

B

C#[Nm]

H
6.5 13.5 65 40 60 5 24 15 6.5 10.5 64 3 23
