CFQ. Scharnieren met afdekkap
CFQ-EH 1

CFQ.
Scharnieren met afdekkap

POM, as: POM

Bekijk volledig
__logo__RoHS__ __logo__POM__ __logo__g6020__ __logo__FM__

Omschrijving

1Main specifications

Material

Acetal resin based (POM) technopolymer, black colour, matte finish.

Rotating pin

Acetal based (POM) technopolymer, black colour.

Screw-covers

Polyester based (PBT) technopolymer, black colour, matte finish, snap-in assembly.

Standard executions

  • CFQ-SH: pass-through holes for countersunk head screws.
  • CFQ-CH: pass-through holes for cylindrical head screws.
  • CFQ-EH: pass-through holes for hexagonal head screws.
2General information

Rotation angle (approximate value)

Max 195° (-15° and +180° being 0° the condition where the interconnected surfaces are on the same plane).

Do not exceed the rotation angle limit so as not to prejudice the hinge mechanical performance.

To choose the convenient type and the right number of hinges for your application, see the Guidelines-.



Resistance tests
AXIAL STRESSRADIAL STRESS90° ANGLED STRESS
Maximum working loadLoad at breakageMaximum working loadLoad at breakageMaximum working loadLoad at breakage
Ea [N]Ra [N]Er [N]Rr [N]E90 [N]R90 [N]
30012203501970290720

Uitvoering

CFQ-SH
CFQ-SH Scharnier, kunststof, kunststof as, doorlopende verzonken montagegaten en kunststof afdekkapjes
CFQ-CH
CFQ-CH Scharnier, kunststof, kunststof as, doorlopende verzonken montagegaten voor cilinderkopbout en kunststof afdekkapjes
CFQ-EH
CFQ-EH Scharnier, kunststof, kunststof as, doorlopende verzonken montagegaten voor 6-kant bout en kunststof afdekkapjes
Sleep voor meer info
Toon alleen voorraad
Filters resetten 		Filter:

Code

Product omschrijving

Aantal

Prijs

Bestel

CAD

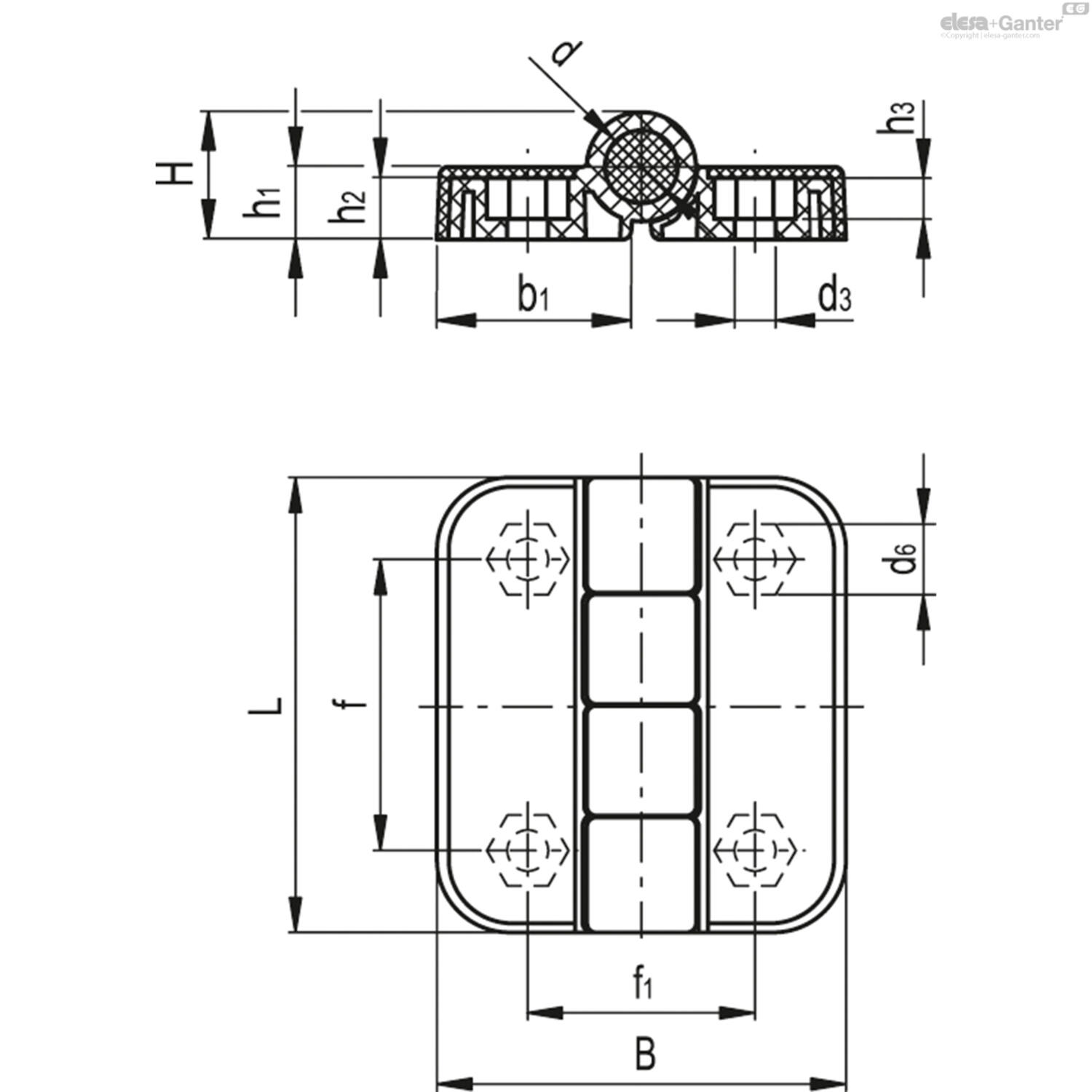

201401050 CFQ.50 EH-4-C9
€ 3,78

h2

d4

L

f

Gewicht (g)

d6

d

b1

f1

h1

h3

d3

d5

B

C#[Nm]

H
7 N.v.t. 50 32 17 7 8 21.5 25 8 4.5 4.5 N.v.t. 45 1.5 14
