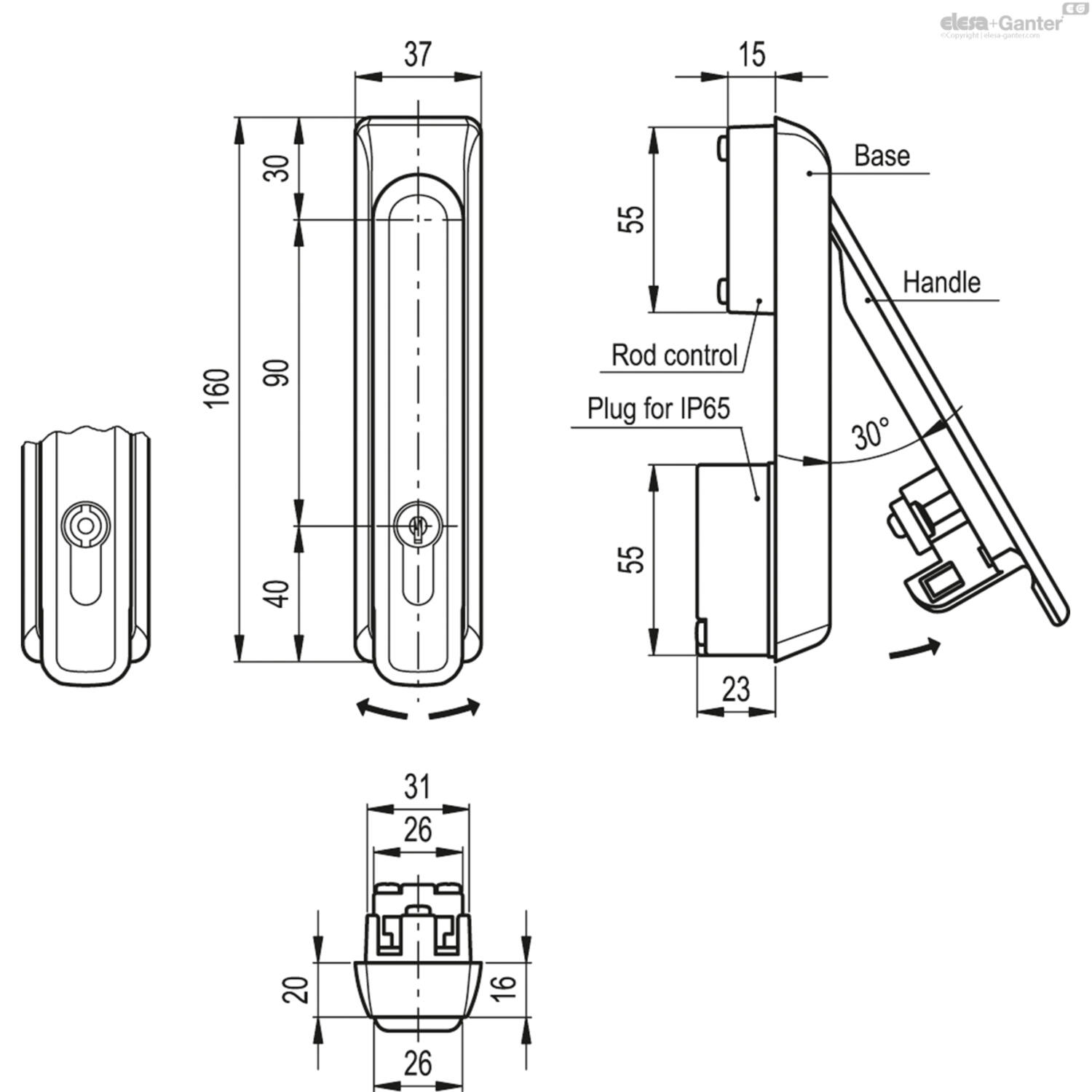

CLC.

Vergrendelingen voor kasten

Handle

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Base

Nickel-plated zamac.

Packing ring

Silicon directly applied under the handle base.

Handle shank

Chrome-plated zinc alloy with NBR synthetic rubber O-ring.

Rod control

Chrome-plated zinc alloy.

Standard executions

European style stator.

• CLC-EU.: lock with different combinations. Each lock has two nickel-plated brass keys, with different combination, removable at 180°.
• CLCU-EU: lock with one combination. All locks have a couple of keys in nickel-plated brass and the same combination which can be opened with the same key removable at 180°.

Index to add to the above mentioned executions:

• IP: executions with protection plug and packing ring with IP 65 protection class, according to table EN 60529, with two zinc-plated setting screws, supplied.

Accessories on request

• One pair of black technopolymer rod guides.
• One pair of flat galvanised steel rods.
• One pair of zinc-alloy connecting bars.
