CTD

Draaimoment vleugelmoeren en -bouten

Glasvezelversterkt techno-polymeer op polyamide (PA) basis

Omschrijving

1Main specifications

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, black (C9) or orange (C2) colour, matte finish.

Torque limiting mechanism

Nickel-plated steel.

Standard executions

  • CTD-B-2: nickel-plated steel boss with threaded blind hole, maximum torque 2Nm.
  • CTD-B-3: nickel-plated steel boss with threaded blind hole, maximum torque 3Nm.
  • CTD-p-2: nickel-plated steel threaded screw, maximum torque 2Nm.
  • CTD-p-3: nickel-plated steel threaded screw, maximum torque 3Nm.
2General information

Features and applications

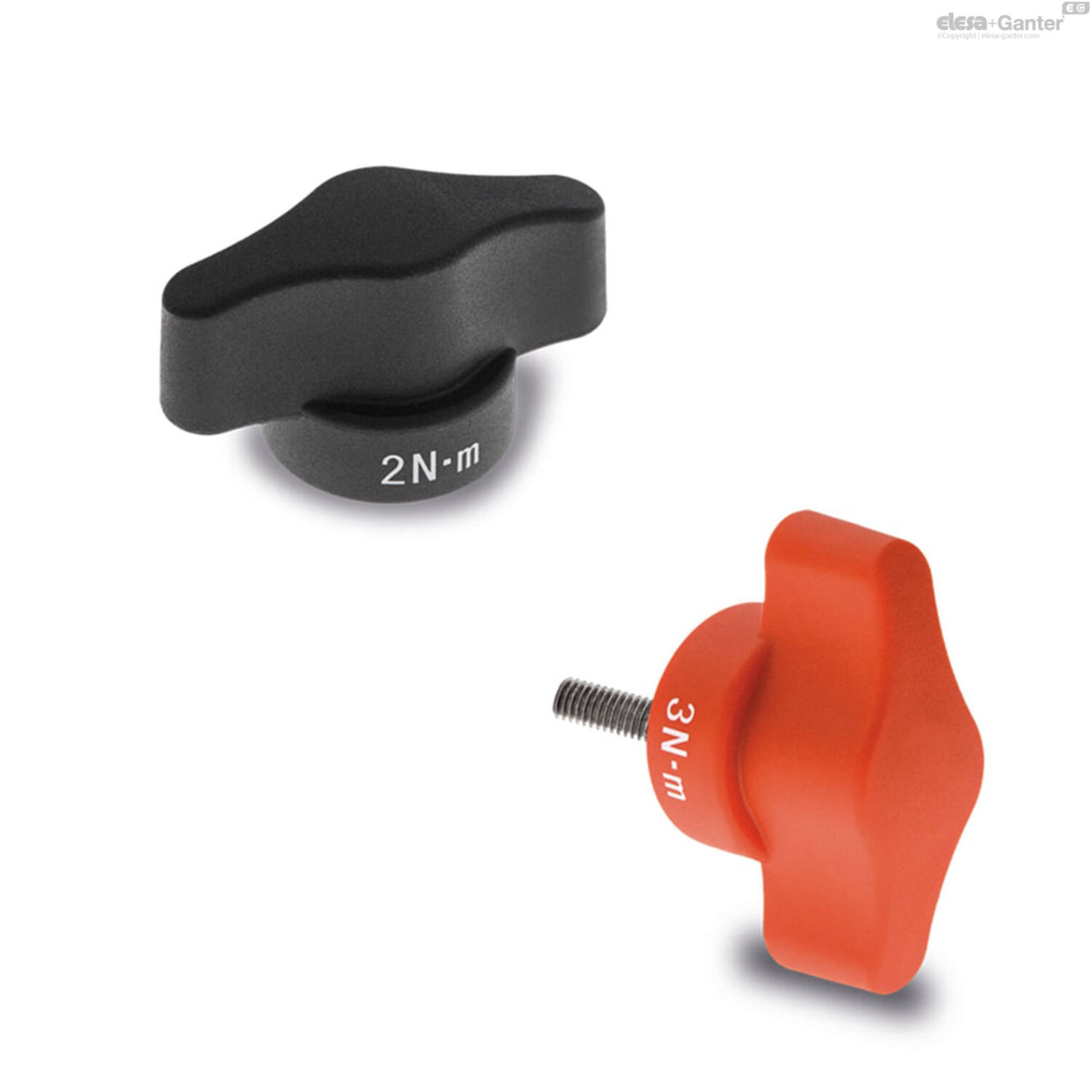

CTD wing knobs are used when the applied tightening torque must not exceed a preset value.

The torque transmission from the wing knob to the clamping element takes place by means of a spring-based mechanical system which prevents the overcoming of the established torque. Upon exceeding the established torque, a ""click"" sound will be heard to indicate that the maximum tightening has been reached. By turning the knob anticlockwise the mechanism unlocks.



Scroll horizontaal onderaan de tabel en / of selecteer filters voor het gewenste resultaat

Code

Omschrijving

Aantal

Prijs

Bestel

CAD

L#

h

d2

Gewicht (g)

D

d

d1

B

C#[Nm]

l2

Selecteer
460114477 CTD.48 B-M5-2-C2
€ 57,75
28 8 10 35 48 M5 26 20 2 9
460114474 CTD.48 B-M5-2-C9
€ 57,75
28 8 10 35 48 M5 26 20 2 9
460114475 CTD.48 B-M5-3-C2
€ 61,02
28 8 10 36 48 M5 26 20 3 9
460114478 CTD.48 B-M5-3-C9
€ 61,02
28 8 10 36 48 M5 26 20 3 9
460114476 CTD.48 B-M6-2-C2
€ 59,39
28 8 10 34 48 M6 26 20 2 9
460114487 CTD.48 B-M6-2-C9
€ 59,39
28 8 10 34 48 M6 26 20 2 9
460114488 CTD.48 B-M6-3-C2
€ 62,68
28 8 10 35 48 M6 26 20 3 9
460114489 CTD.48 B-M6-3-C9
€ 62,68
28 8 10 35 48 M6 26 20 3 9
