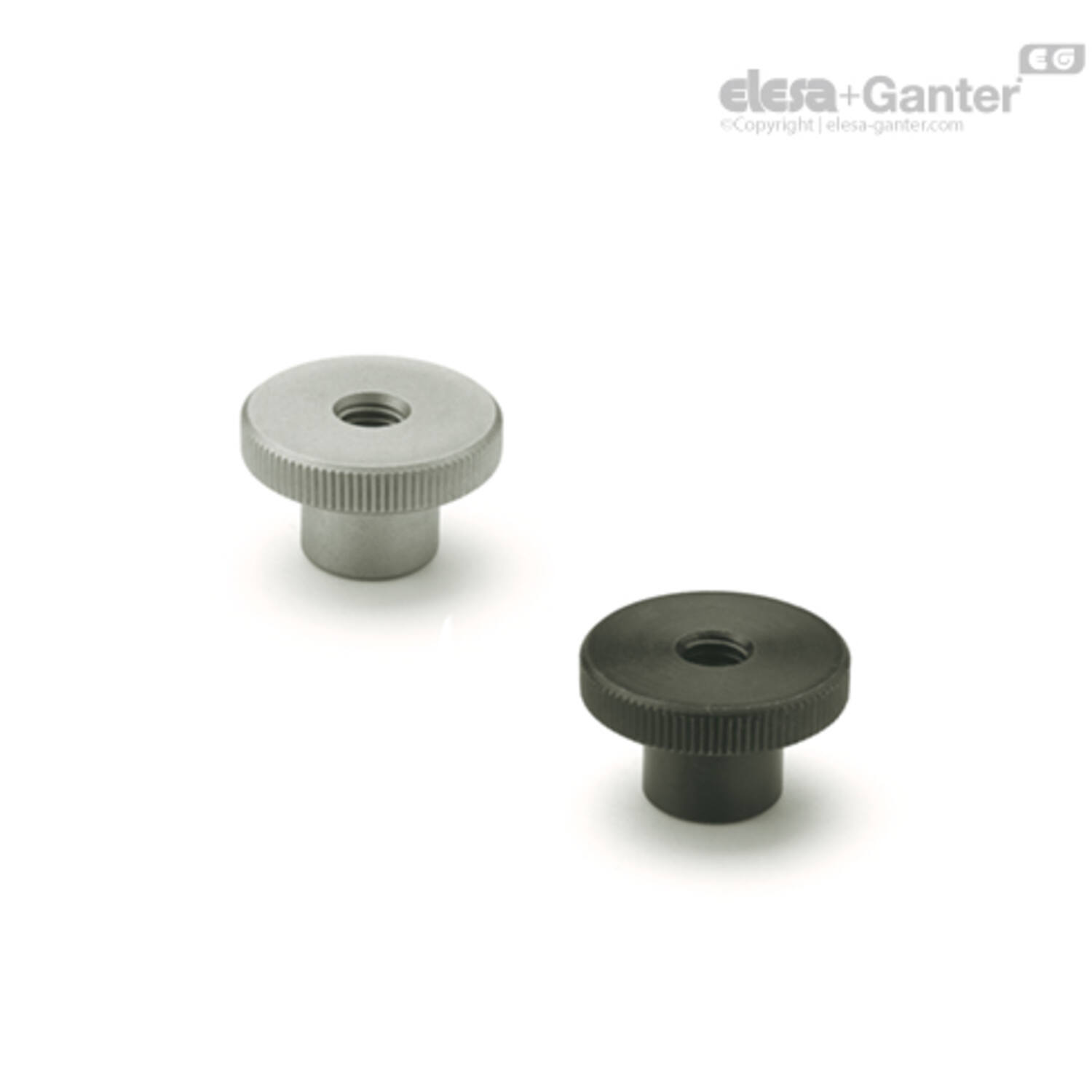

DIN 466
Kartelknoppen
Omschrijving
Version in Steel
- Tensile strength class 5
- visible face fine turned
- blackened
- zinc plated, blue passivated ZB
Version in Stainless Steel AISI 303 NI
- matte shot-blasted
Flat knurled nuts DIN 466 are suitable for universal use and can be tightened and loosened easily without tools. A nut with thread M12 is also available in addition to the types defined in the DIN standard.
| Filters resetten | Filter: | ||||
Code |
Product omschrijving |
Aantal |
Prijs |
Bestel |
CAD |
|---|---|---|---|---|---|
| 470025190 | DIN 466-M10-ZB |
|
|||
| 470025191 | DIN 466-M12-ZB |
|
|||
| 470025195 | DIN 466-M2,5-ZB |
|
|||
| 470025197 | DIN 466-M2-ZB |
|
|||
| 470025199 | DIN 466-M3-ZB |
|
|||
| 470025200 | DIN 466-M4-ZB |
|
|||
| 470025201 | DIN 466-M5-ZB |
|
|||
| 470025202 | DIN 466-M6-ZB |
|
|||
| 470025203 | DIN 466-M8-ZB |
|
|||
|
|
|
|
|
|
|
|
h |
d2 |
k |
Gewicht (g) |
d1 |
d3 |
|---|---|---|---|---|---|
| 23 | 36 | 8 | 84 | M 10 | 20 |
| 25 | 40 | 10 | 119 | M12 | 22 |
| 6.5 | 11 | 2.5 | 2 | M 2.5 | 5 |
| 5.3 | 9 | 2 | 1 | M 2 | 4.5 |
| 7.5 | 12 | 2.5 | 3 | M 3 | 6 |
| 9.5 | 16 | 3.5 | 7 | M 4 | 8 |
| 11.5 | 20 | 4 | 12 | M 5 | 10 |
| 15 | 24 | 5 | 22 | M 6 | 12 |
| 18 | 30 | 6 | 44 | M 8 | 16 |
