Omschrijving
Material
Glass-fibre reinforced polyamide based (PA) technopolymer, grey-black colour, matte finish.
Standard executions
- ERFW-B: brass boss, threaded blind hole.
- ERFW-N: cylindrical blind hole, brass reinforcement and transversal semi-machined hole for pinning to shaft.
| Filters resetten | Filter: | ||||
Code |
Product omschrijving |
Aantal |
Prijs |
Bestel |
CAD |
|---|---|---|---|---|---|
| 201518920 | ERFW.44 N-6-C1 |
|
|||
| 201518930 | ERFW.63 N-8-C1 |
|
|||
| 201518940 | ERFW.78 N-10-C1 |
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|

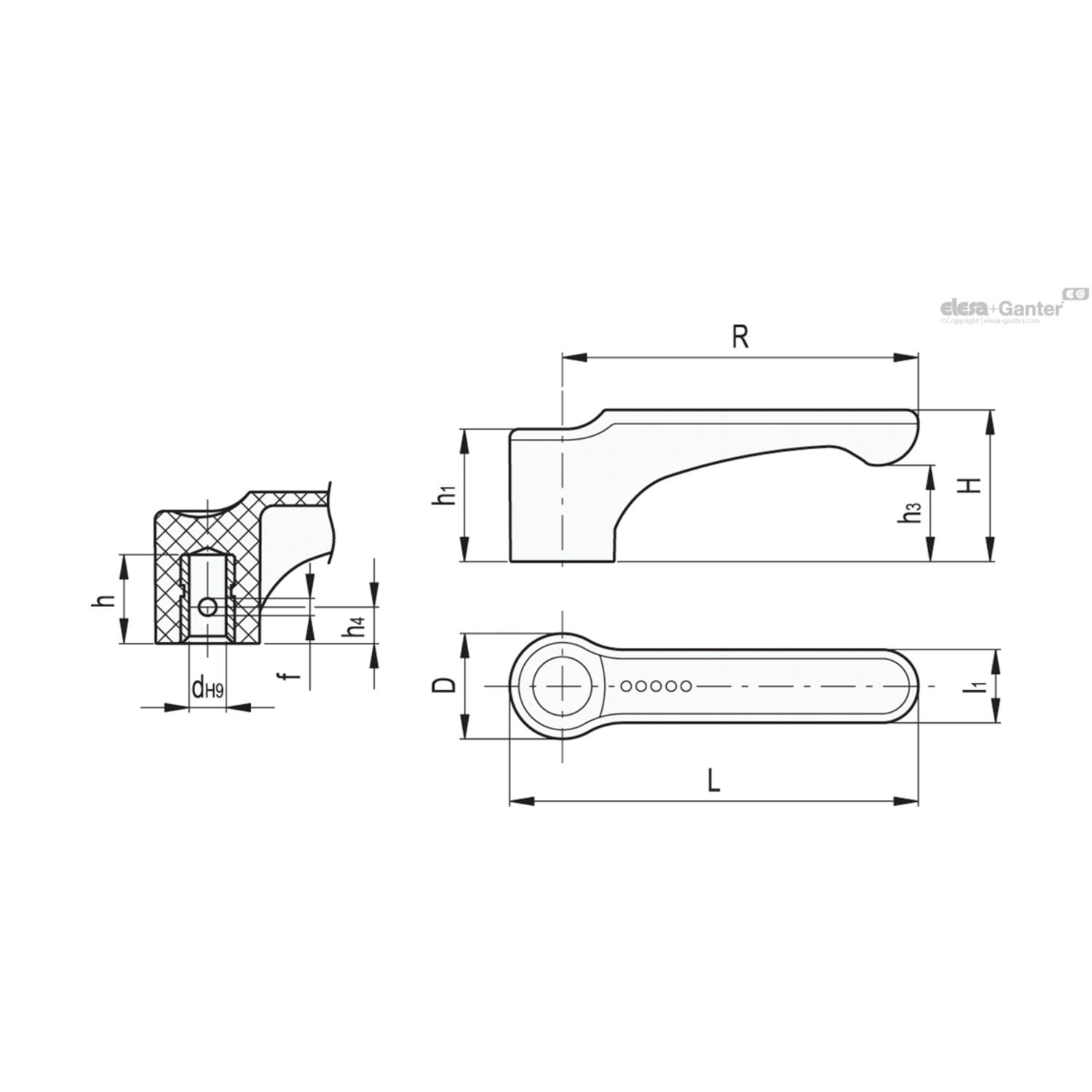

L |
h |
l1 |
dH9 |
f |
Gewicht (g) |
D |
R |
h1 |
h3 |
h4 |
H |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 52 | 15 | 11 | 6 | 3 | 5 | 15.5 | 44 | 19 | 13 | 7 | 21 |
| 73 | 20 | 13.5 | 8 | 4 | 11 | 19 | 63 | 25 | 18 | 8 | 28 |
| 90.5 | 25 | 16 | 10 | 4 | 31 | 23 | 78 | 30 | 21 | 9 | 33 |
