EWN.

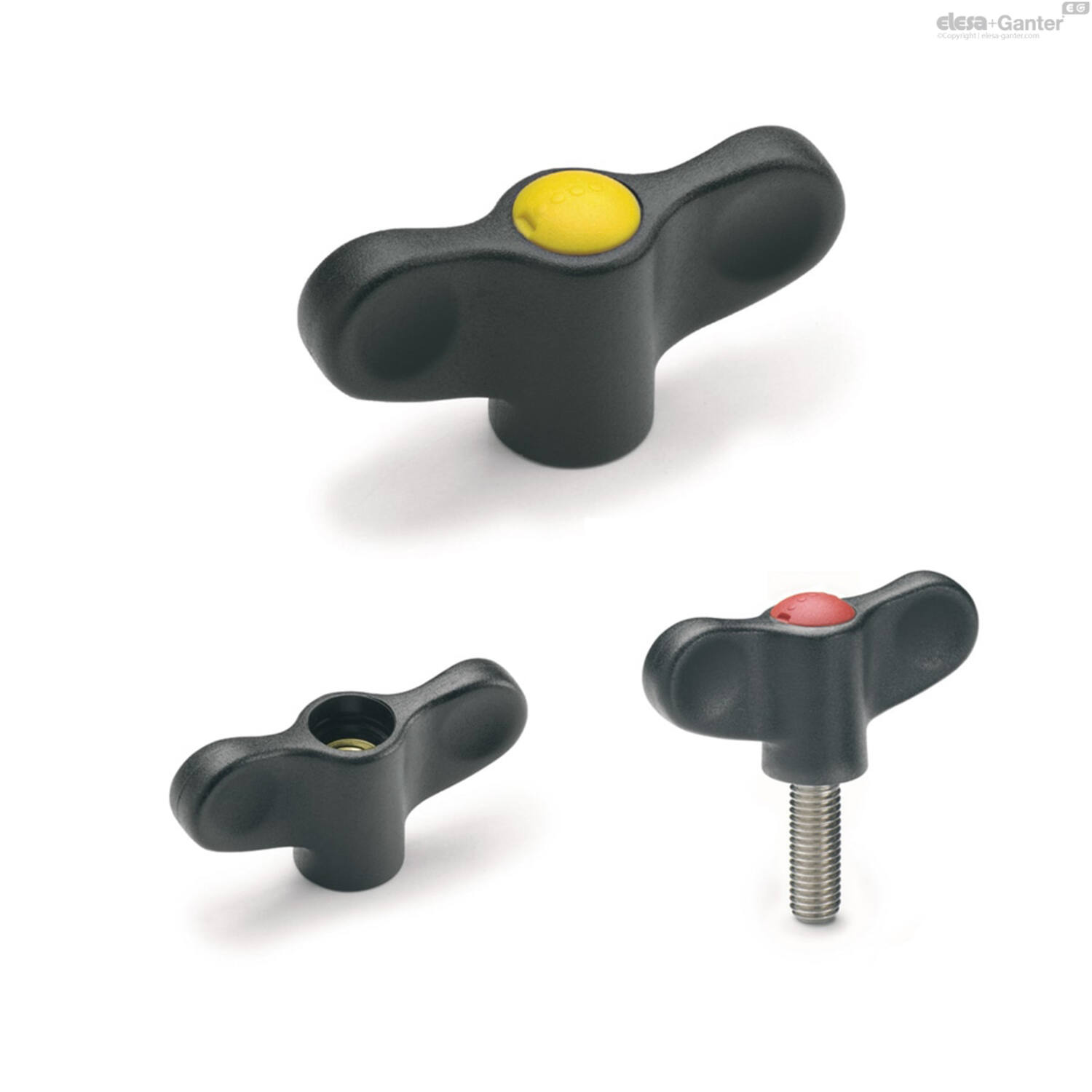

Vleugelmoeren en -bouten, kunststof, ERGOSTYLE

Glasvezelversterkt techno-polymeer op polyamide (PA) basis

Omschrijving

1Main specifications

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, grey-black colour, matte finish.

Boss cap

  • ECA.W: glass-fibre reinforced polyamide based (PA) technopolymer, in Elecolors colours, matte finish, press-fit assembly. Supplied, removable by a screwdriver.

Available also as accessory sold separately (see table).

Standard executions

  • EWN-B: brass boss, threaded pass-through hole, with cap.
  • EWN-SST: AISI 303 stainless steel boss, threaded-pass hole, with cap.
  • EWN-FP: brass boss, threaded pass-through hole, without cap.
  • EWN-SST-FP: AISI 303 stainless steel boss, threaded pass-through hole without cap.
  • EWN-p: zinc-plated steel threaded stud with chamfered flat end as in UNI 947 : ISO 4753 (see Technical data), with closing cap.
  • EWN-SST-p: AISI 303 stainless steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data), with closing cap.
2Accessories on request

Accessories on request

  • ECA.W: glass-fibre reinforced polyamide based (PA) technopolymer boss cap, in Elecolors colours, matte finish, press-fit assembly (see table).

Scroll horizontaal onderaan de tabel en / of selecteer filters voor het gewenste resultaat

Code

Omschrijving

Aantal

Prijs

Bestel

CAD

D1

h

L#

Gewicht (g)

d1

l2

D

d6H

B

C#[Nm]

Selecteer
470014176 EWN.40 B-M5-C1
€ 1,56
n.v.t. 12 20 10 13.5 4 40 M5 6 10
470014182 EWN.40 B-M5-C17
€ 1,56
n.v.t. 12 20 10 13.5 4 40 M5 6 10
470014177 EWN.40 B-M5-C2
€ 1,56
n.v.t. 12 20 10 13.5 4 40 M5 6 10
470014178 EWN.40 B-M5-C3
€ 1,56
n.v.t. 12 20 10 13.5 4 40 M5 6 10
470014179 EWN.40 B-M5-C4
€ 1,56
n.v.t. 12 20 10 13.5 4 40 M5 6 10
470014180 EWN.40 B-M5-C5
€ 1,56
n.v.t. 12 20 10 13.5 4 40 M5 6 10
470014181 EWN.40 B-M5-C6
€ 1,56
n.v.t. 12 20 10 13.5 4 40 M5 6 10
470014183 EWN.40 B-M6-C1
€ 1,61
n.v.t. 12 20 9 13.5 4 40 M6 6 11
470014189 EWN.40 B-M6-C17
€ 1,61
n.v.t. 12 20 9 13.5 4 40 M6 6 11
470014184 EWN.40 B-M6-C2
€ 1,61
n.v.t. 12 20 9 13.5 4 40 M6 6 11
470014185 EWN.40 B-M6-C3
€ 1,61
n.v.t. 12 20 9 13.5 4 40 M6 6 11
470014186 EWN.40 B-M6-C4
€ 1,61
n.v.t. 12 20 9 13.5 4 40 M6 6 11
470014187 EWN.40 B-M6-C5
€ 1,61
n.v.t. 12 20 9 13.5 4 40 M6 6 11
470014188 EWN.40 B-M6-C6
€ 1,61
n.v.t. 12 20 9 13.5 4 40 M6 6 11
470014190 EWN.40 B-M8-C1
€ 1,88
n.v.t. 12 20 8 13.5 4 40 M8 6 13
470014196 EWN.40 B-M8-C17
€ 1,88
n.v.t. 12 20 8 13.5 4 40 M8 6 13
470014191 EWN.40 B-M8-C2
€ 1,88
n.v.t. 12 20 8 13.5 4 40 M8 6 13
470014192 EWN.40 B-M8-C3
€ 1,88
n.v.t. 12 20 8 13.5 4 40 M8 6 13
470014193 EWN.40 B-M8-C4
€ 1,88
n.v.t. 12 20 8 13.5 4 40 M8 6 13
470014194 EWN.40 B-M8-C5
€ 1,88
n.v.t. 12 20 8 13.5 4 40 M8 6 13
470014195 EWN.40 B-M8-C6
€ 1,88
n.v.t. 12 20 8 13.5 4 40 M8 6 13
200804957 EWN.48 B-M5-C1
€ 1,85
13.5 12 24 11 13.5 5.5 47 M5 7 10
460121537 EWN.48 B-M5-C17
€ 1,85
13.5 12 24 11 13.5 5.5 47 M5 7 10
200804958 EWN.48 B-M5-C2
€ 1,85
13.5 12 24 11 13.5 5.5 47 M5 7 10
200804959 EWN.48 B-M5-C3
€ 1,85
13.5 12 24 11 13.5 5.5 47 M5 7 10
200804960 EWN.48 B-M5-C4
€ 1,85
13.5 12 24 11 13.5 5.5 47 M5 7 10
200804961 EWN.48 B-M5-C5
€ 1,85
13.5 12 24 11 13.5 5.5 47 M5 7 10
200804962 EWN.48 B-M5-C6
€ 1,85
13.5 12 24 11 13.5 5.5 47 M5 7 10
200804963 EWN.48 B-M6-C1
€ 1,90
13.5 12 24 10 13.5 5.5 47 M6 7 11
460121456 EWN.48 B-M6-C17
€ 1,90
13.5 12 24 10 13.5 5.5 47 M6 7 11
200804964 EWN.48 B-M6-C2
€ 1,90
13.5 12 24 10 13.5 5.5 47 M6 7 11
200804965 EWN.48 B-M6-C3
€ 1,90
13.5 12 24 10 13.5 5.5 47 M6 7 11
200804966 EWN.48 B-M6-C4
€ 1,90
13.5 12 24 10 13.5 5.5 47 M6 7 11
200804967 EWN.48 B-M6-C5
€ 1,90
13.5 12 24 10 13.5 5.5 47 M6 7 11
200804968 EWN.48 B-M6-C6
€ 1,90
13.5 12 24 10 13.5 5.5 47 M6 7 11
200804969 EWN.48 B-M8-C1
€ 2,20
13.5 12 24 9 13.5 5.5 47 M8 7 13
460121538 EWN.48 B-M8-C17
€ 2,20
13.5 12 24 9 13.5 5.5 47 M8 7 13
200804972 EWN.48 B-M8-C2
€ 2,20
13.5 12 24 9 13.5 5.5 47 M8 7 13
200804971 EWN.48 B-M8-C3
€ 2,20
13.5 12 24 9 13.5 5.5 47 M8 7 13
200804970 EWN.48 B-M8-C4
€ 2,20
13.5 12 24 9 13.5 5.5 47 M8 7 13
200804973 EWN.48 B-M8-C5
€ 2,20
13.5 12 24 9 13.5 5.5 47 M8 7 13
200804974 EWN.48 B-M8-C6
€ 2,20
13.5 12 24 9 13.5 5.5 47 M8 7 13
200802390 EWN.55 B-M6-C1
€ 1,90
16 18 28 20 16 6.5 55 M6 8 20
460121477 EWN.55 B-M6-C17
€ 1,90
16 18 28 20 16 6.5 55 M6 8 20
200802392 EWN.55 B-M6-C2
€ 1,90
16 18 28 20 16 6.5 55 M6 8 20
200802393 EWN.55 B-M6-C3
€ 1,90
16 18 28 20 16 6.5 55 M6 8 20
200802394 EWN.55 B-M6-C4
€ 1,90
16 18 28 20 16 6.5 55 M6 8 20
200802395 EWN.55 B-M6-C5
€ 1,90
16 18 28 20 16 6.5 55 M6 8 20
200802396 EWN.55 B-M6-C6
€ 1,90
16 18 28 20 16 6.5 55 M6 8 20
200802400 EWN.55 B-M8-C1
€ 1,93
16 18 28 19 16 6.5 55 M8 8 26
460121503 EWN.55 B-M8-C17
€ 1,93
16 18 28 19 16 6.5 55 M8 8 26
200802402 EWN.55 B-M8-C2
€ 1,93
16 18 28 19 16 6.5 55 M8 8 26
