GN 113.9

Vergrendelpennen

EG_GN_113_9
GN 113.9 1

GN 113.9

Vergrendelpennen

RVS (1.4305 = A1 = AISI 303)

Datasheet voor dit artikel is op het moment niet beschikbaar. Neem contact met ons op.

Bekijk volledig
__logo__INOX__ __logo__RoHS__

Omschrijving

1Specification

Plunger

Stainless Steel AISI 303

Knob, push button

Stainless Steel AISI 316L

Balls

Stainless Steel AISI 420C

Spring

Stainless Steel German material no. 1.4565

2Information

Stainless Steel-Ball lock pins GN 113.9 are used for quick fixing, connecting and locking of various parts and workpieces. A typical application is location pins which have to be often removed and replaced again.

By pressing the spring loaded push button both balls are unlocked and by releasing it, the balls are locked again.

3Technical information4Accessory

Uitvoering

GN 113.9
GN 113.9 Vergrendelpen, zelf borgend, geheel RVS

Scroll horizontaal onderaan de tabel en / of selecteer filters voor het gewenste resultaat

Code

Omschrijving

Aantal

Prijs

Bestel

CAD

d4

d2

l1 +0.6

Gewicht (g)

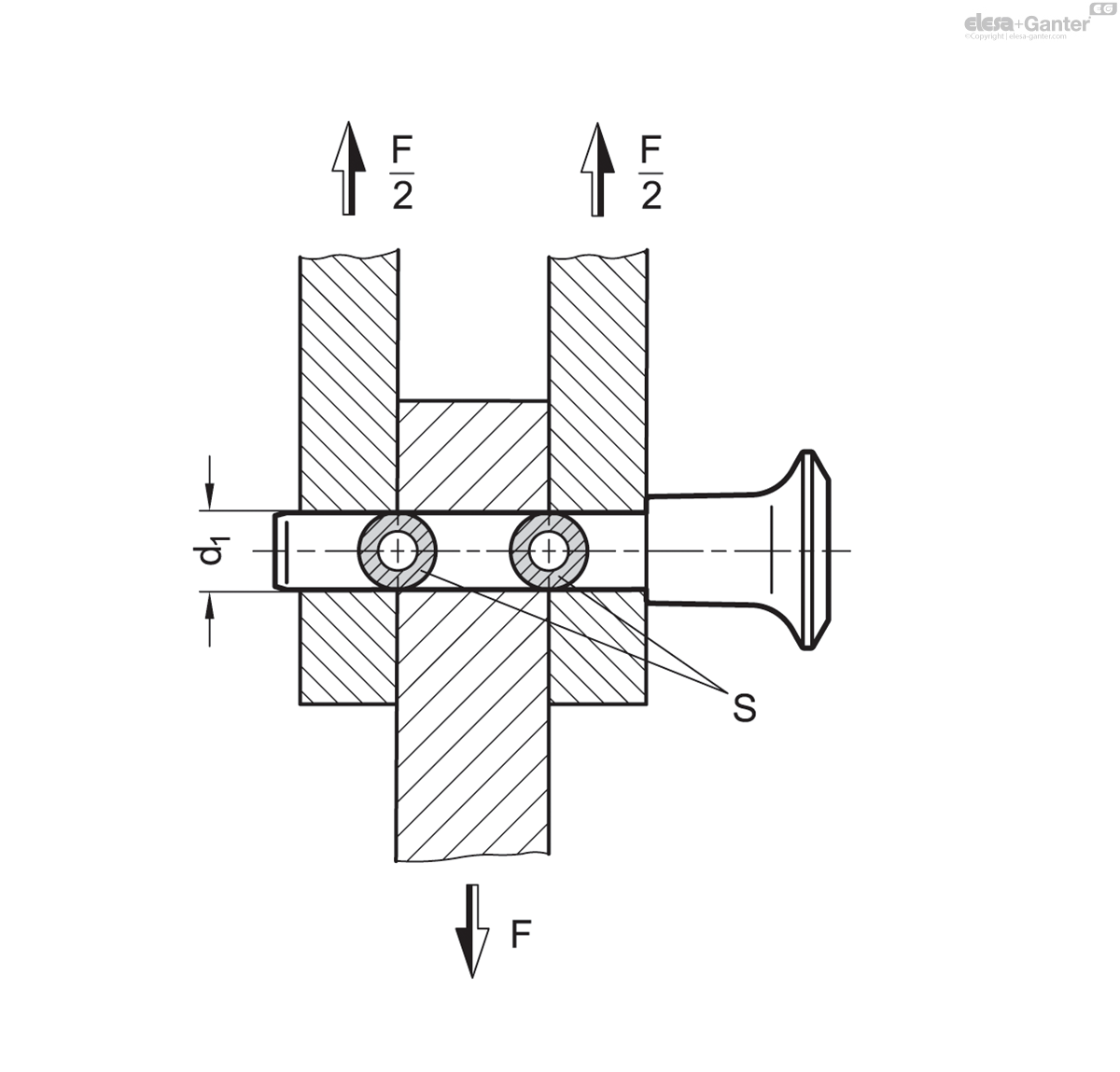

Belast. in kN3

l2 ±1

d3

l3 -0.2

d1 -0.04/-0.08

Voorboring H11
Selecteer
460120525 GN 113.9-10-100
€ 51,24
13.2 12 100 101 60 9.6 27 26.8 10 10
460120607 GN 113.9-10-110
€ 51,24
13.2 12 110 107 60 9.6 27 26.8 10 10
460120551 GN 113.9-10-120
€ 53,29
13.2 12 120 112 60 9.6 27 26.8 10 10
460120464 GN 113.9-10-15
€ 43,90
13.2 12 15 51 60 9.6 27 26.8 10 10
460120422 GN 113.9-10-20
€ 43,90
13.2 12 20 53 60 9.6 27 26.8 10 10
460120423 GN 113.9-10-25
€ 43,90
13.2 12 25 57 60 9.6 27 26.8 10 10
460120526 GN 113.9-10-30
€ 45,95
13.2 12 30 60 60 9.6 27 26.8 10 10
460120424 GN 113.9-10-35
€ 45,95
13.2 12 35 63 60 9.6 27 26.8 10 10
460120552 GN 113.9-10-40
€ 45,95
13.2 12 40 65 60 9.6 27 26.8 10 10
460120425 GN 113.9-10-45
€ 45,95
13.2 12 45 68 60 9.6 27 26.8 10 10
460120553 GN 113.9-10-50
€ 45,95
13.2 12 50 69 60 9.6 27 26.8 10 10
460120465 GN 113.9-10-60
€ 48,41
13.2 12 60 77 60 9.6 27 26.8 10 10
460120466 GN 113.9-10-70
€ 48,41
13.2 12 70 83 60 9.6 27 26.8 10 10
460120467 GN 113.9-10-80
€ 49,68
13.2 12 80 88 60 9.6 27 26.8 10 10
460120554 GN 113.9-10-90
€ 49,68
13.2 12 90 94 60 9.6 27 26.8 10 10
460120426 GN 113.9-12-100
€ 60,19
16.4 14.5 100 152 87 10.6 31 32.7 12 12
460120555 GN 113.9-12-110
€ 61,93
16.4 14.5 110 153 87 10.6 31 32.7 12 12
460120427 GN 113.9-12-120
€ 61,93
16.4 14.5 120 169 87 10.6 31 32.7 12 12
460120428 GN 113.9-12-20
€ 51,07
16.4 14.5 20 83 87 10.6 31 32.7 12 12
460120468 GN 113.9-12-25
€ 51,07
16.4 14.5 25 88 87 10.6 31 32.7 12 12
460120429 GN 113.9-12-30
€ 53,29
16.4 14.5 30 93 87 10.6 31 32.7 12 12
460120556 GN 113.9-12-35
€ 53,29
16.4 14.5 35 96 87 10.6 31 32.7 12 12
460120557 GN 113.9-12-40
€ 53,29
16.4 14.5 40 100 87 10.6 31 32.7 12 12
460120469 GN 113.9-12-45
€ 53,29
16.4 14.5 45 105 87 10.6 31 32.7 12 12
460120558 GN 113.9-12-50
€ 53,29
16.4 14.5 50 109 87 10.6 31 32.7 12 12
460120608 GN 113.9-12-60
€ 56,49
16.4 14.5 60 118 87 10.6 31 32.7 12 12
460120559 GN 113.9-12-70
€ 56,49
16.4 14.5 70 123 87 10.6 31 32.7 12 12
460120609 GN 113.9-12-80
€ 58,95
16.4 14.5 80 135 87 10.6 31 32.7 12 12
460120470 GN 113.9-12-90
€ 60,19
16.4 14.5 90 144 87 10.6 31 32.7 12 12
460120560 GN 113.9-16-100
€ 125,00
23.4 19 100 317 155 14 38 42.6 16 16
460120527 GN 113.9-16-110
€ 127,05
23.4 19 110 333 155 14 38 42.6 16 16
460120520 GN 113.9-16-120
€ 129,17
23.4 19 120 348 155 14 38 42.6 16 16
460120436 GN 113.9-16-130
€ 131,13
23.4 19 130 364 155 14 38 42.6 16 16
460120521 GN 113.9-16-140
€ 133,05
23.4 19 140 379 155 14 38 42.6 16 16
460120478 GN 113.9-16-150
€ 135,88
23.4 19 150 396 155 14 38 42.6 16 16
460120561 GN 113.9-16-30
€ 112,19
23.4 19 30 207 155 14 38 42.6 16 16
460120479 GN 113.9-16-35
€ 112,19
23.4 19 35 215 155 14 38 42.6 16 16
460120562 GN 113.9-16-40
€ 114,12
23.4 19 40 223 155 14 38 42.6 16 16
460120563 GN 113.9-16-45
€ 114,12
23.4 19 45 231 155 14 38 42.6 16 16
460120480 GN 113.9-16-50
€ 115,78
23.4 19 50 236 155 14 38 42.6 16 16
460120564 GN 113.9-16-60
€ 117,75
23.4 19 60 254 155 14 38 42.6 16 16
460120595 GN 113.9-16-70
€ 119,41
23.4 19 70 270 155 14 38 42.6 16 16
460120481 GN 113.9-16-80
€ 121,15
23.4 19 80 285 155 14 38 42.6 16 16
460120565 GN 113.9-16-90
€ 123,24
23.4 19 90 302 155 14 38 42.6 16 16
460120437 GN 113.9-20-100
€ 148,45
23.4 24.8 100 422 244 17 38 42.6 20 20
460120438 GN 113.9-20-110
€ 150,40
23.4 24.8 110 446 244 17 38 42.6 20 20
460120566 GN 113.9-20-120
€ 152,96
23.4 24.8 120 471 244 17 38 42.6 20 20
460120482 GN 113.9-20-130
€ 154,48
23.4 24.8 130 496 244 17 38 42.6 20 20
460120596 GN 113.9-20-140
€ 156,94
23.4 24.8 140 518 244 17 38 42.6 20 20
460120439 GN 113.9-20-150
€ 159,36
23.4 24.8 150 544 244 17 38 42.6 20 20
460120597 GN 113.9-20-50
€ 137,69
23.4 24.8 50 297 244 17 38 42.6 20 20
460120598 GN 113.9-20-60
€ 139,37
23.4 24.8 60 324 244 17 38 42.6 20 20
