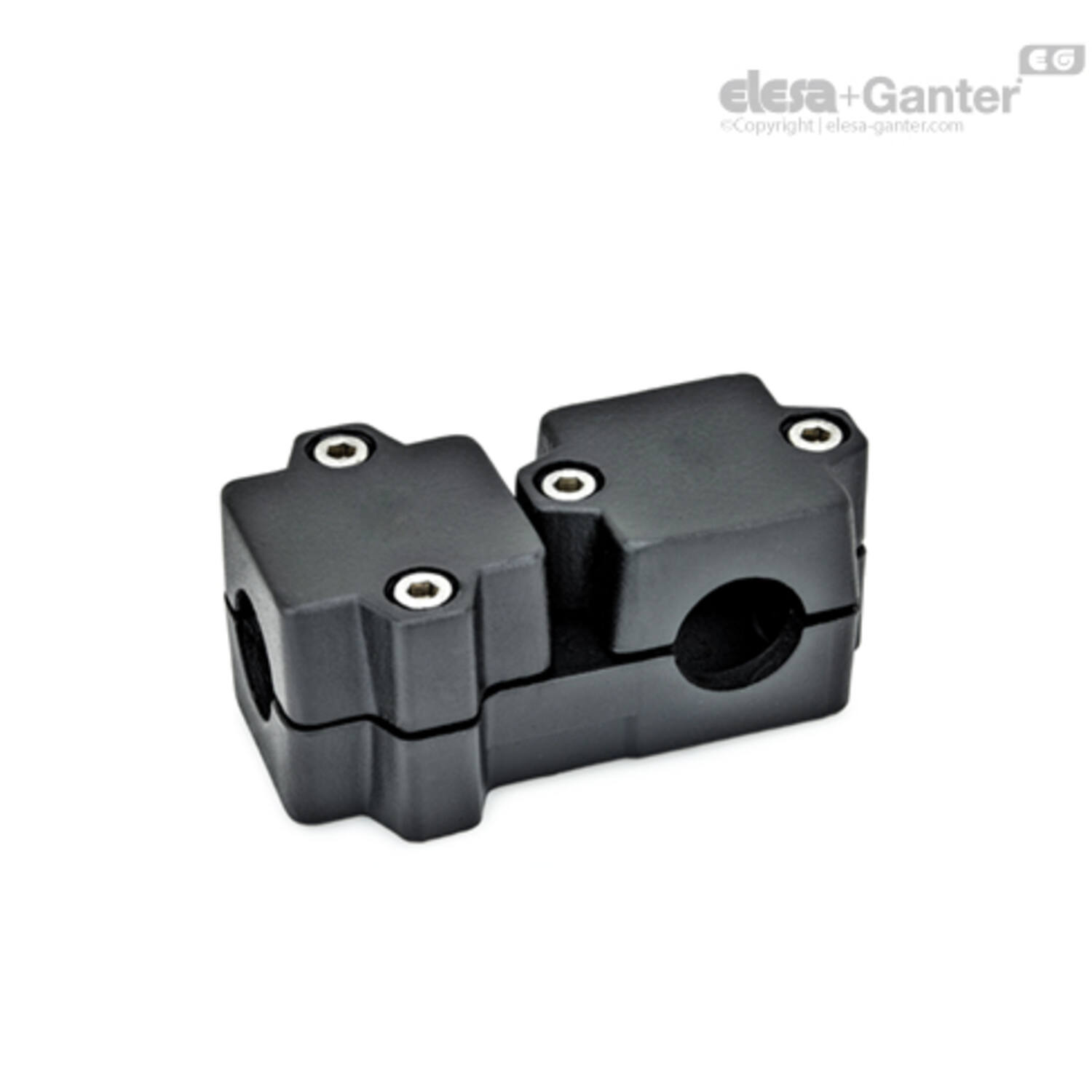

GN 194
Buisklemverbindingen

Omschrijving

1Specification

No. 2: With 4 stainless steel socket cap screws DIN 912

Aluminum

Powder coated

Black, RAL 9005, textured finish SW

Plain finish, matte shot-blasted BL

Socket cap screws DIN 912

Stainless steel AISI 304

Hex nuts DIN 985

Stainless steel AISI 304

Self-locking via polyamide ring

2Information

The clamping bores of T-angle connector clamps GN 194 are not machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.

The versions with square bores are also suitable for use with profile systems.

At the screw locations z, the socket cap screws reduce the bore cross-section for clamping.

For clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 listed in the table as accessories.

3Accessory

4Technical information

Sleep voor meer info

Code	Product omschrijving	Aantal	CAD
Toon alleen voorraad Filters resetten			Filter:
103104025	GN 194-B20-V20-50-2-BL	€ 42,36
103104030	GN 194-B20-V20-50-2-SW	€ 42,48
103104045	GN 194-B25-V25-50-2-BL	€ 42,36
103104050	GN 194-B25-V25-50-2-SW	€ 42,48
103104085	GN 194-B30-V30-50-2-BL	€ 42,36
103104090	GN 194-B30-V30-50-2-SW	€ 42,48
103104105	GN 194-B30-V30-60-2-BL	€ 55,49
103104110	GN 194-B30-V30-60-2-SW	€ 55,68
103104165	GN 194-B35-V35-60-2-BL	€ 55,49
103104170	GN 194-B35-V35-60-2-SW	€ 55,68
103104215	GN 194-B40-V40-60-2-BL	€ 55,49
103104220	GN 194-B40-V40-60-2-SW	€ 55,68
103104225	GN 194-B40-V40-76-2-BL	€ 61,46
103104230	GN 194-B40-V40-76-2-SW	€ 61,20
103104255	GN 194-B45-V45-76-2-BL	€ 61,20
103104260	GN 194-B45-V45-76-2-SW	€ 61,44
103104285	GN 194-B50-V50-76-2-BL	€ 61,20
103104290	GN 194-B50-V50-76-2-SW	€ 61,20

k Klemlengte	d2	l1	k	s1	l3	Gewicht (g)	d1	d3	s2	m	l2

50	n.v.t.	120	n.v.t.	n.v.t.	46	423	n.v.t.	n.v.t.	n.v.t.	86	68
50	N.v.t.	120	50	N.v.t.	46	423	B 20	M 8	V 20	86	68
50	N.v.t.	120	50	N.v.t.	46	395	B 25	M 8	V 25	86	68
50	N.v.t.	120	50	N.v.t.	46	395	B 25	M 8	V 25	86	68
50	N.v.t.	120	50	N.v.t.	46	342	B 30	M 8	V 30	86	68
50	N.v.t.	120	50	N.v.t.	46	342	B 30	M 8	V 30	86	68
60	N.v.t.	141	60	N.v.t.	59	760	B 30	M 8	V 30	101.5	79
60	N.v.t.	141	60	N.v.t.	59	760	B 30	M 8	V 30	101.5	79
60	N.v.t.	141	60	N.v.t.	59	731	B 35	M 8	V 35	101.5	79
60	N.v.t.	141	60	N.v.t.	59	731	B 35	M 8	V 35	101.5	79
60	N.v.t.	141	60	N.v.t.	59	700	B 40	M 8	V 40	101.5	79
60	N.v.t.	141	60	N.v.t.	59	700	B 40	M 8	V 40	101.5	79
76	N.v.t.	176	76	N.v.t.	70	1110	B 40	M 10	V 40	127	98
76	N.v.t.	176	76	N.v.t.	70	1110	B 40	M 10	V 40	127	98
76	N.v.t.	176	76	N.v.t.	70	1065	B 45	M 10	V 45	127	98
76	N.v.t.	176	76	N.v.t.	70	1065	B 45	M 10	V 45	127	98
76	N.v.t.	176	76	N.v.t.	70	1015	B 50	M 10	V 50	127	98
76	N.v.t.	176	76	N.v.t.	70	1015	B 50	M 10	V 50	127	98
