GN 250
Positioneerblokken
GN 250
Positioneerblokken
Opmerking
* bestemd voor GN 614
** bestemd voor GN 615 / GN 615.2 / GN 615.3
Omschrijving
Sintered Steel
- case hardened
- blank

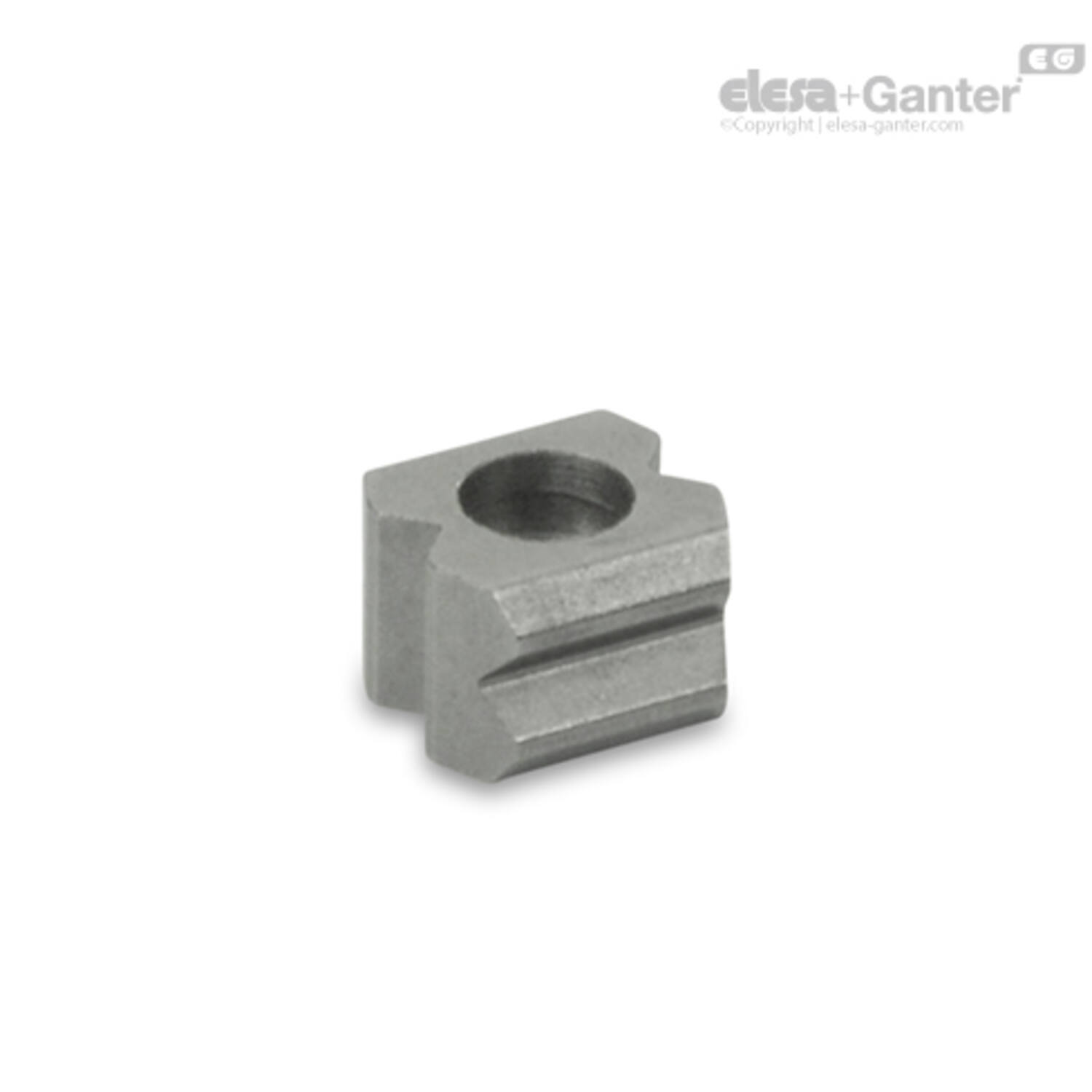

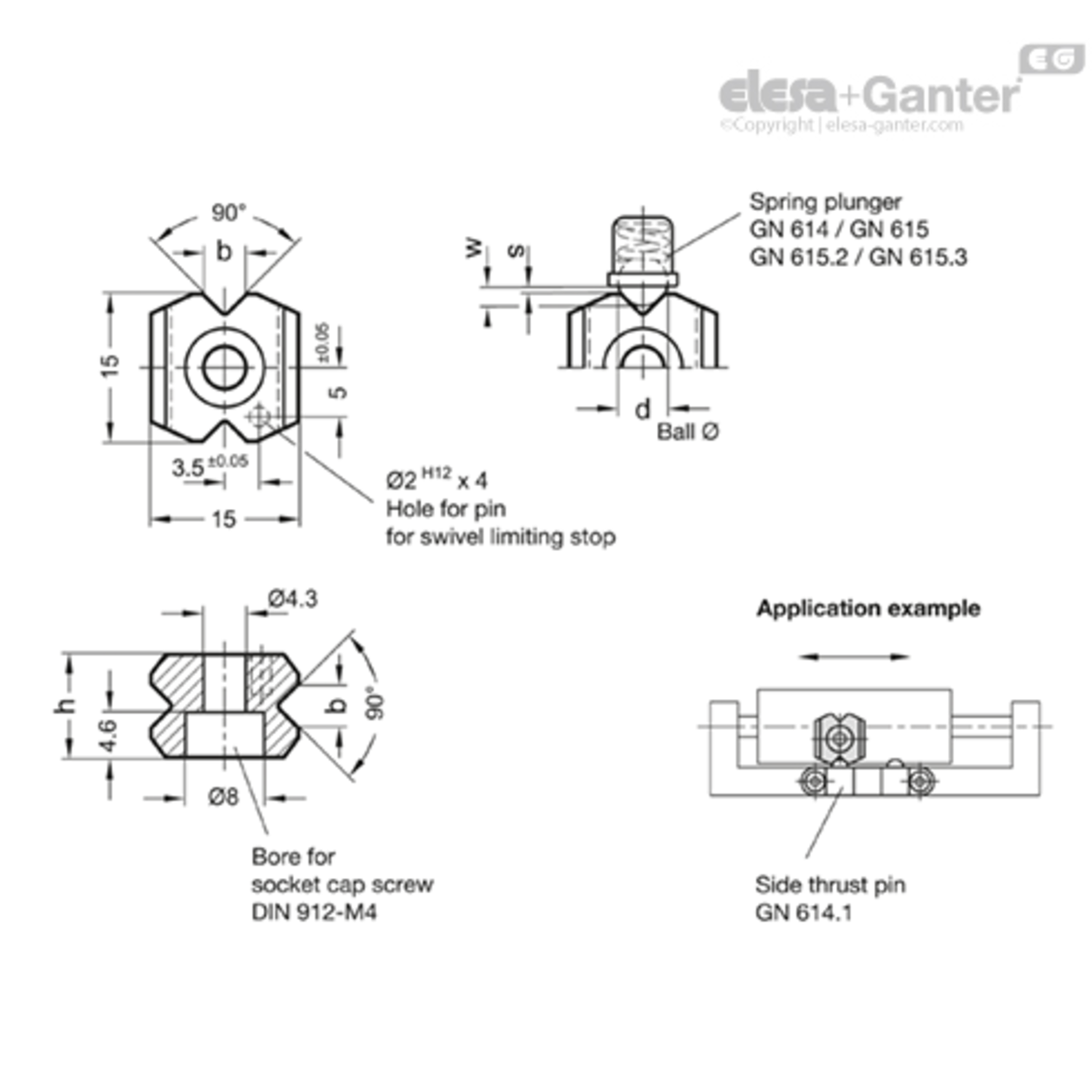

Indent blocks GN 250 are used together with spring plungers for detent or positioning of sliders, flaps and similar applications.
Scroll onderstaande tabel om meer te zien
Code |
Product omschrijving |
Aantal |
Prijs |
Bestel |
CAD |
s min* |
s min** |
d* |
h |
voot GN 615 mt |
Gewicht (g) |
voor GN 614 mt |
w* |
b ±0.1 |
d** |
w** |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Filter |
|
|
|
|
|
|
|
|
|
|
|
|||||
100917991 | GN 250-10,5 |
|
1 | 1 | 6.5 | 10.5 | M 10 | 11 | 8 | 1.9 | 4.5 | 6 | 2 | |||
100916645 | GN 250-8,5 |
|
0.9 | 0.8 | 5 | 8.5 | M 8 | 10 | 6 | 1.6 | 3.4 | 4.5 | 1.5 |
