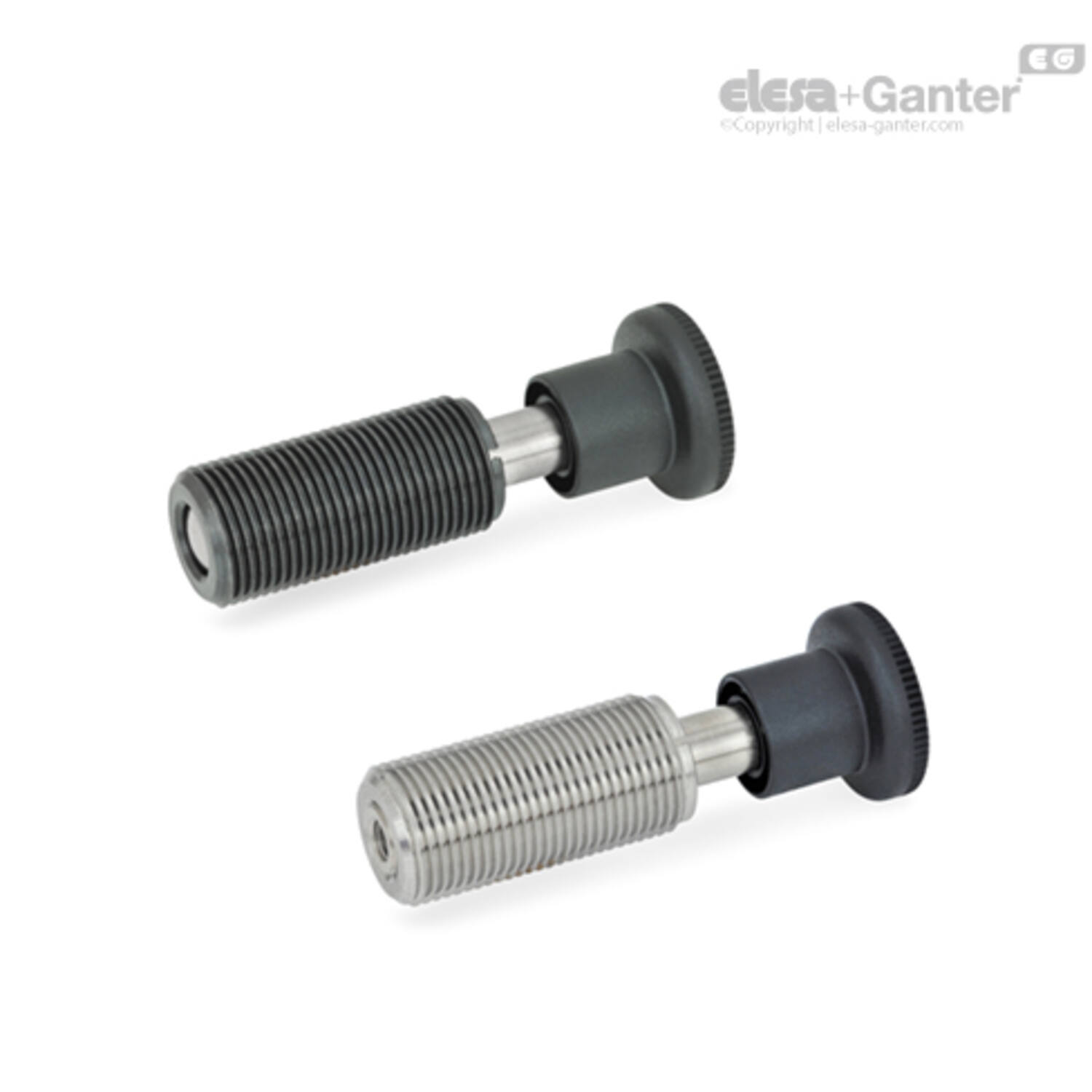

GN 313

Indexeerbouten

Gezwart staal of RVS

Omschrijving

1Specification

Types

  • Type A: with knob, without lock nut
  • Type AK: with knob, with lock nut
  • Type D: without knob, without lock nut
  • Type DK: without knob, with lock nut

Identification no.

  • Version 1: Plunger without internal thread
  • Version 2: Plunger with internal thread

Guide (Threaded socket)

Steel ST

blackened

Guide (Threaded socket)

Stainless Steel AISI 303 NI

Pin

Stainless Steel

  • AISI 303
  • chemically nickel plated

Knob

Plastic (Polyamide PA)

  • black, matt
  • not removable
2Information

The pin of the spring bolts GN 313 does not protrude in the inoperative position.

It can be operated manually or in Type D and DK mechanically (pneumatic cylinder, cam plate, etc.) when it will protrude only as long as it is operated.

Using the internal thread at identification 2 on the pressure side, special pressure bolts or a rod arrangement can be operated, for instance.

3Technical information

Scroll onderstaande tabel om meer te zien

Code

Product omschrijving

Aantal

Prijs

Bestel

CAD

d4

l3 ≈

l4 ≈

d2

l1

Gewicht (g)

Veerdruk in N2

Veerdruk in N3

t min

d3

d1 Pin -0.02/-0.05 Boring H7

l2

Filter
109480106 GN 313-10-A-1-NI
€ 23,84
28 78 57 M 20 x 1.5 11 100 50 22 N.v.t. N.v.t. 10 43
109480110 GN 313-10-A-2-NI
€ 24,45
28 78 57 M 20 x 1.5 11 92 50 22 12 M 6 10 43
109480114 GN 313-10-AK-1-NI
€ 26,74
28 78 57 M 20 x 1.5 11 130 50 22 N.v.t. N.v.t. 10 43
109480118 GN 313-10-AK-2-NI
€ 27,35
28 78 57 M 20 x 1.5 11 120 50 22 12 M 6 10 43
109480122 GN 313-10-D-1-NI
€ 22,74
28 78 57 M 20 x 1.5 11 86 50 22 N.v.t. N.v.t. 10 43
109480126 GN 313-10-D-2-NI
€ 23,86
28 78 57 M 20 x 1.5 11 83 50 22 12 M 6 10 43
109480130 GN 313-10-DK-1-NI
€ 25,64
28 78 57 M 20 x 1.5 11 120 50 22 N.v.t. N.v.t. 10 43
109480134 GN 313-10-DK-2-NI
€ 26,77
28 78 57 M 20 x 1.5 11 110 50 22 12 M 6 10 43
109544785 GN 313-5-A-1-NI
€ 14,32
16 42 29 M 10 x 1 6 13 20 8 N.v.t. N.v.t. 5 22
109544795 GN 313-5-A-2-NI
€ 14,37
16 42 29 M 10 x 1 6 13 20 8 7 M 3 5 22
109544800 GN 313-5-AK-1-NI
€ 15,10
16 42 29 M 10 x 1 6 10 20 8 N.v.t. N.v.t. 5 22
109544810 GN 313-5-AK-2-NI
€ 15,15
16 42 29 M 10 x 1 6 1 20 8 7 M 3 5 22
109544820 GN 313-5-D-1-NI
€ 12,54
16 42 29 M 10 x 1 6 11 20 8 N.v.t. N.v.t. 5 22
109544830 GN 313-5-D-2-NI
€ 13,42
16 42 29 M 10 x 1 6 11 20 8 7 M 3 5 22
109544840 GN 313-5-DK-1-NI
€ 13,32
16 42 29 M 10 x 1 6 10 20 8 N.v.t. N.v.t. 5 22
109544850 GN 313-5-DK-2-NI
€ 14,20
16 42 29 M 10 x 1 6 150 20 8 7 M 3 5 22
109480138 GN 313-6-A-1-NI
€ 15,05
19 49 35 M 12 x 1.5 7 21 28 9 N.v.t. N.v.t. 6 26
109480142 GN 313-6-A-2-NI
€ 16,15
19 49 35 M 12 x 1.5 7 21 28 9 7 M 4 6 26
109480146 GN 313-6-AK-1-NI
€ 15,93
19 49 35 M 12 x 1.5 7 20 28 9 N.v.t. N.v.t. 6 26
109480150 GN 313-6-AK-2-NI
€ 17,03
19 49 35 M 12 x 1.5 7 30 28 9 7 M 4 6 26
109480154 GN 313-6-D-1-NI
€ 14,23
19 49 35 M 12 x 1.5 7 18 28 9 N.v.t. N.v.t. 6 26
109480158 GN 313-6-D-2-NI
€ 15,66
19 49 35 M 12 x 1.5 7 17 28 9 7 M 4 6 26
109480162 GN 313-6-DK-1-NI
€ 15,10
19 49 35 M 12 x 1.5 7 10 28 9 N.v.t. N.v.t. 6 26
109480166 GN 313-6-DK-2-NI
€ 16,54
19 49 35 M 12 x 1.5 7 30 28 9 7 M 4 6 26
109480170 GN 313-8-A-1-NI
€ 18,91
23 65 48 M 16 x 1.5 9 48 40 12 N.v.t. N.v.t. 8 34
109480174 GN 313-8-A-2-NI
€ 18,79
23 65 48 M 16 x 1.5 9 47 40 12 9 M 5 8 34
109480178 GN 313-8-AK-1-NI
€ 20,18
23 65 48 M 16 x 1.5 9 60 40 12 N.v.t. N.v.t. 8 34
109480182 GN 313-8-AK-2-NI
€ 20,06
23 65 48 M 16 x 1.5 9 65 40 12 9 M 5 8 34
109480186 GN 313-8-D-1-NI
€ 16,30
23 65 48 M 16 x 1.5 9 43 40 12 N.v.t. N.v.t. 8 34
109480190 GN 313-8-D-2-NI
€ 17,91
23 65 48 M 16 x 1.5 9 42 40 12 9 M 5 8 34
109480194 GN 313-8-DK-1-NI
€ 17,57
23 65 48 M 16 x 1.5 9 60 40 12 N.v.t. N.v.t. 8 34
109480198 GN 313-8-DK-2-NI
€ 19,18
23 65 48 M 16 x 1.5 9 60 40 12 9 M 5 8 34
