Omschrijving
Types
- Type T0: Without button
- Type T1: With 1 button
- Type T2: With 2 buttons
Identification no.
- Version 1: Without emergency stop
- Version 2: With emergency stop
Door opening
- Version L: Left
- Version R: Right
Handle tube
Aluminum, wall thickness 1,5 mm
Powder coated
Black, RAL 9005, textured finish SW
Anodized, natural color EL
Handle legs
Zinc die casting
Powder coated
Black, RAL 9005, textured finish
Cover
(for identification no. 1 instead of emergency stop)
Plastic, light gray
Operating temperature -25 °C to +55 °C

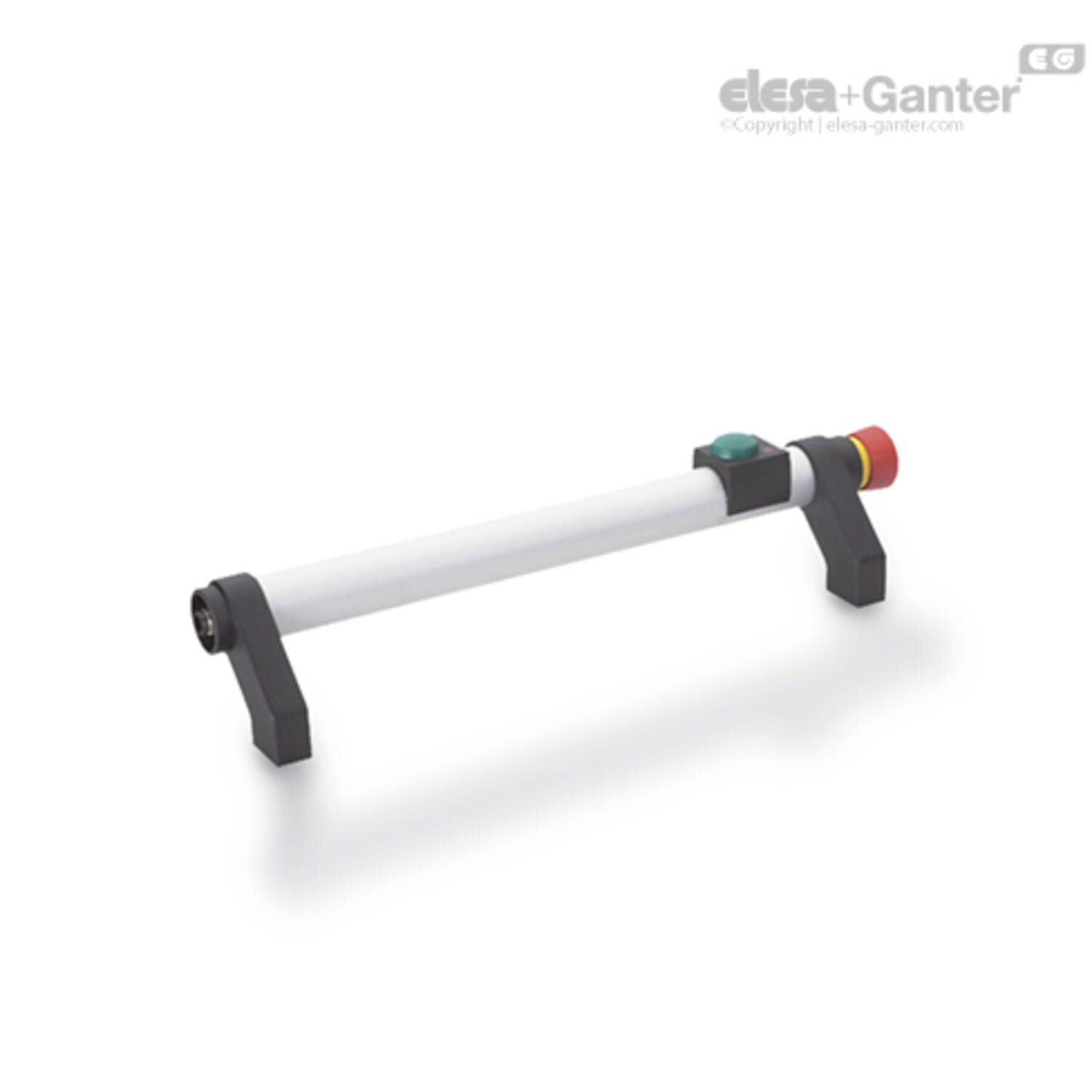

Tubular handles GN 332 are available with various options for emergency stops and buttons. They can be used for activating individual functions of a machine control, such as unlocking the safety lock of a housing door right on the handle.
The possible switching operations depend on the options and are described below. For types T1 and T2, one set of caps (consisting of the colors red, green, and blue) is supplied for each button.
The red or green LED lights up regardless of whether the button is pressed and can be used to indicate the status of a control, for example.
- Cables with connector GN 330
| The tubular handles have the CE marking, low voltage guideline 06 / 95 / EG | - | - |
| Emergency stop | 2 channel, Breaker |  |
| 1st button with 2 LED | Changover contact |  |
| - | LED, red and green |  |
| 2nd button | Maker |  |
| Contact termination, Pin configuration | Plug M12x1, 12-pole |  |
| Switching voltage / Switching current | max. 24 V DC / max. 0.5 A | - |
| Operating voltage (LEDs) | 24 V DC ± 15 % | - |
| Protection class | Identification no. 1: IP 67 (in screwed condition) | - |
| - | Identification no. 2: IP 54 | - |
| Button colour | for each button a set of caps is included, in this colours: red, green, blue | - |
| - | - | - |
| Additional variants as special application | - | - |
| Emergency stop | 1 channel |  |
| - | Maker |  |
| Number of buttons >2 | Breaker |  |
| Button special with | Changeover contact |  |
| Button with labelling area |  | - |
Uitvoering
| Filters resetten | Filter: | ||||
Code |
Product omschrijving |
Aantal |
Prijs |
Bestel |
CAD |
|---|---|---|---|---|---|
| 100108140 | GN 332-200-EL-T1-2-L |
|
|||
| 100108150 | GN 332-200-EL-T1-2-R |
|
|||
| 100108240 | GN 332-200-SW-T1-2-L |
|
|||
| 100108250 | GN 332-200-SW-T1-2-R |
|
|||
| 100108340 | GN 332-300-EL-T1-2-L |
|
|||
| 100108350 | GN 332-300-EL-T1-2-R |
|
|||
| 100108440 | GN 332-300-SW-T1-2-L |
|
|||
| 100108450 | GN 332-300-SW-T1-2-R |
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
b2 |
h2 |
Gewicht (g) |
l ±0.25 |
d |
b1 |
t min |
h1 |
b4 |
b3 |
|---|---|---|---|---|---|---|---|---|---|
| 17 | 68 | 595 | 200 | M 8 | 27 | 15 | 51 | 68 | 51 |
| 17 | 68 | 595 | 200 | M 8 | 27 | 15 | 51 | 68 | 51 |
| 17 | 68 | 595 | 200 | M 8 | 27 | 15 | 51 | 68 | 51 |
| 17 | 68 | 595 | 200 | M 8 | 27 | 15 | 51 | 68 | 51 |
| 17 | 68 | 793 | 300 | M 8 | 27 | 15 | 51 | 68 | 51 |
| 17 | 68 | 793 | 300 | M 8 | 27 | 15 | 51 | 68 | 51 |
| 17 | 68 | 793 | 300 | M 8 | 27 | 15 | 51 | 68 | 51 |
| 17 | 68 | 793 | 300 | M 8 | 27 | 15 | 51 | 68 | 51 |
