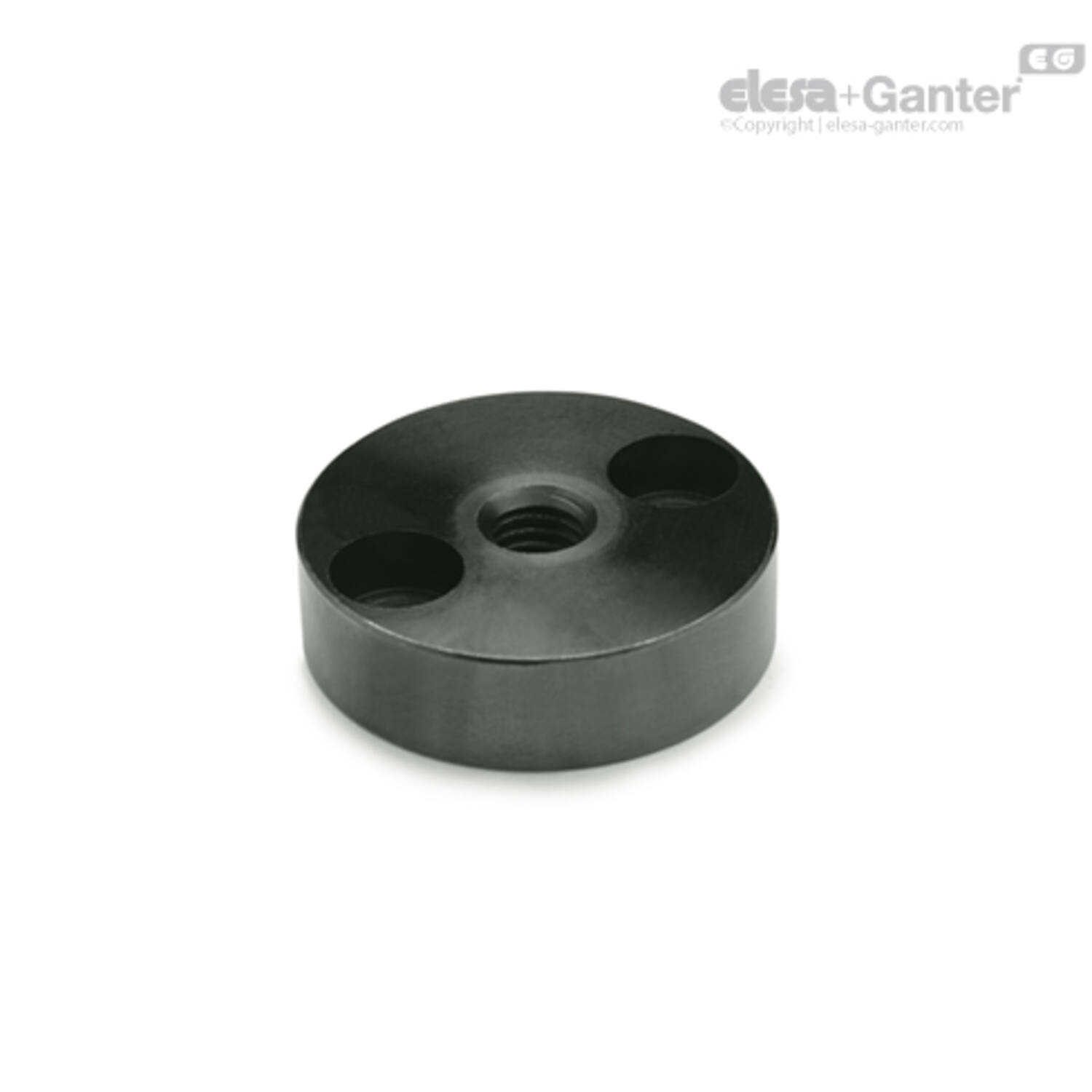

GN 349
Montageschijf
Omschrijving
Steel
- weldable
- blackened
GN 349 mounts are used on levelling feet particularly in such cases where a machine shrouding is made of very thin sheet metal.
Scroll onderstaande tabel om meer te zien
Code |
Product omschrijving |
Aantal |
Prijs |
Bestel |
CAD |

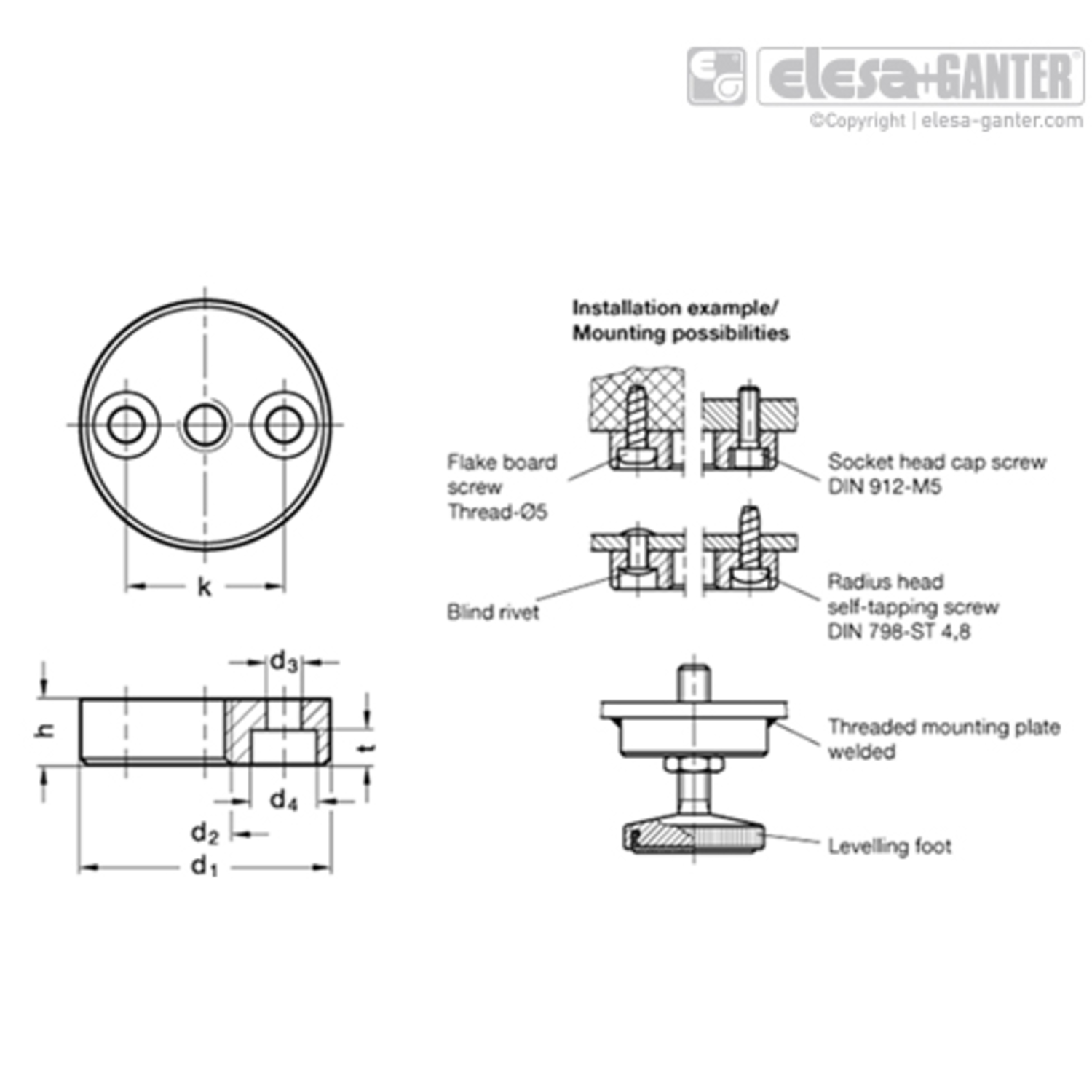

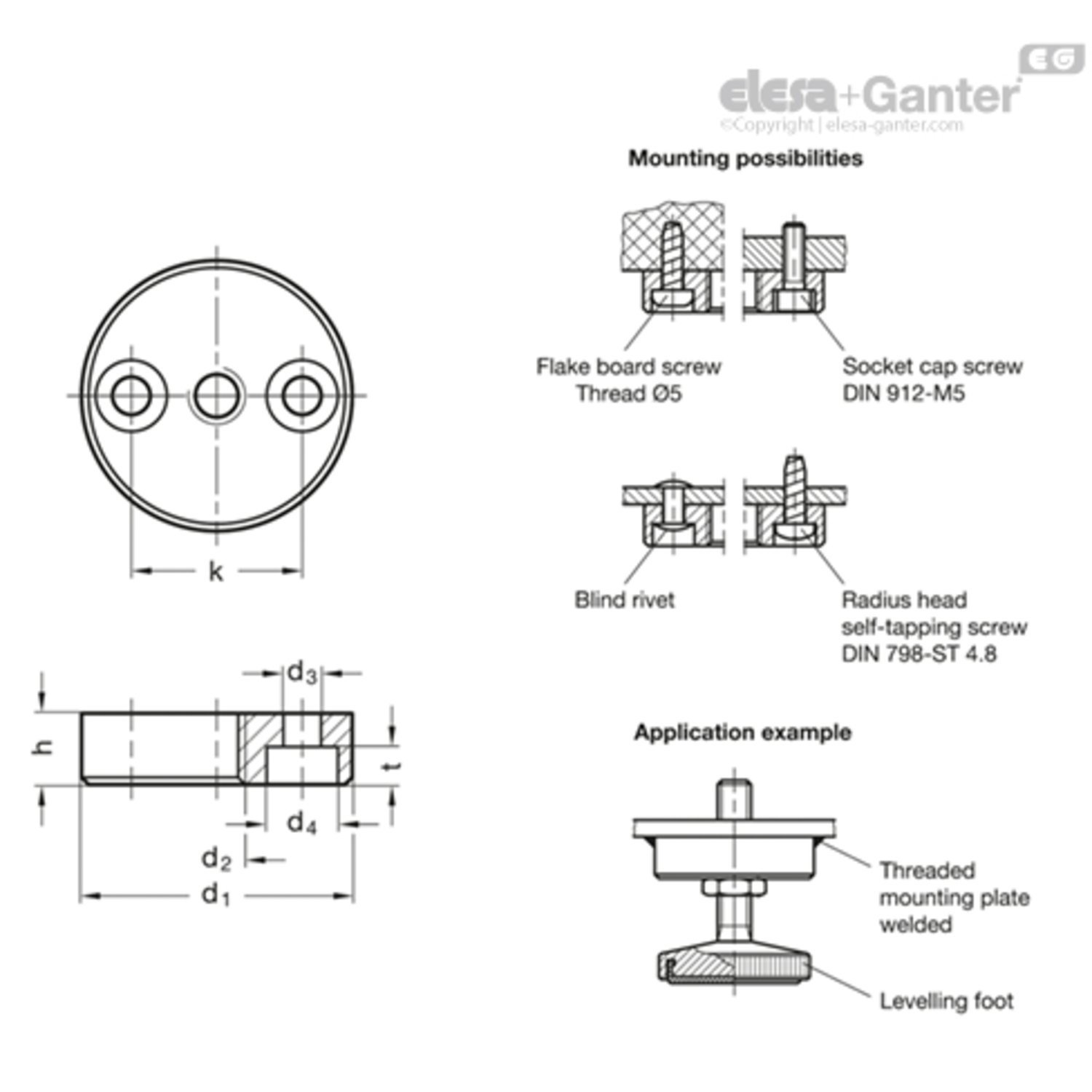

d4 |
h |
d2 |
k |
Gewicht (g) |
d1 |
t |
d3 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Filter |
|
|
|
|
|
|
|
|
|||||
101305910 | GN 349-36-M10 |
|
10 | 10 | M 10 | 24 | 65 | 36 | 5.3 | 5.3 | |||
101305920 | GN 349-36-M12 |
|
10 | 10 | M 12 | 24 | 63 | 36 | 5.3 | 5.3 | |||
101305930 | GN 349-36-M8 |
|
10 | 10 | M 8 | 24 | 67 | 36 | 5.3 | 5.3 |
