GN 369

Handslingers

Types

• Type A: without slot

• Type N: with slot

• shot-blasted and nickel plated

• Crank butt-welded

Plastic cap

black

• Plastic, technopolymer, black matt

• Spindle steel, zinc plated, blue passivated

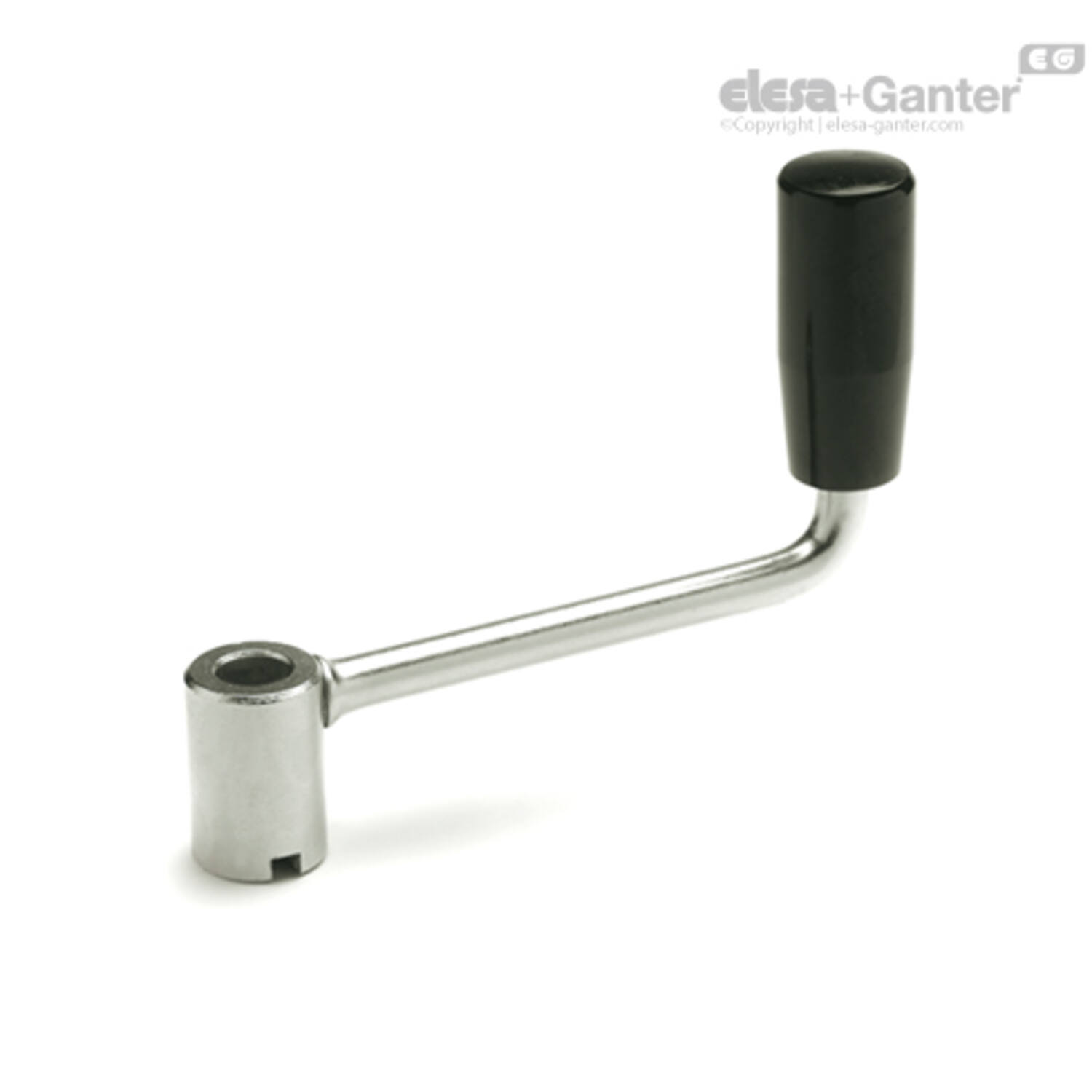

Cranks GN 369 are for light duty applications and are of extremely good value.

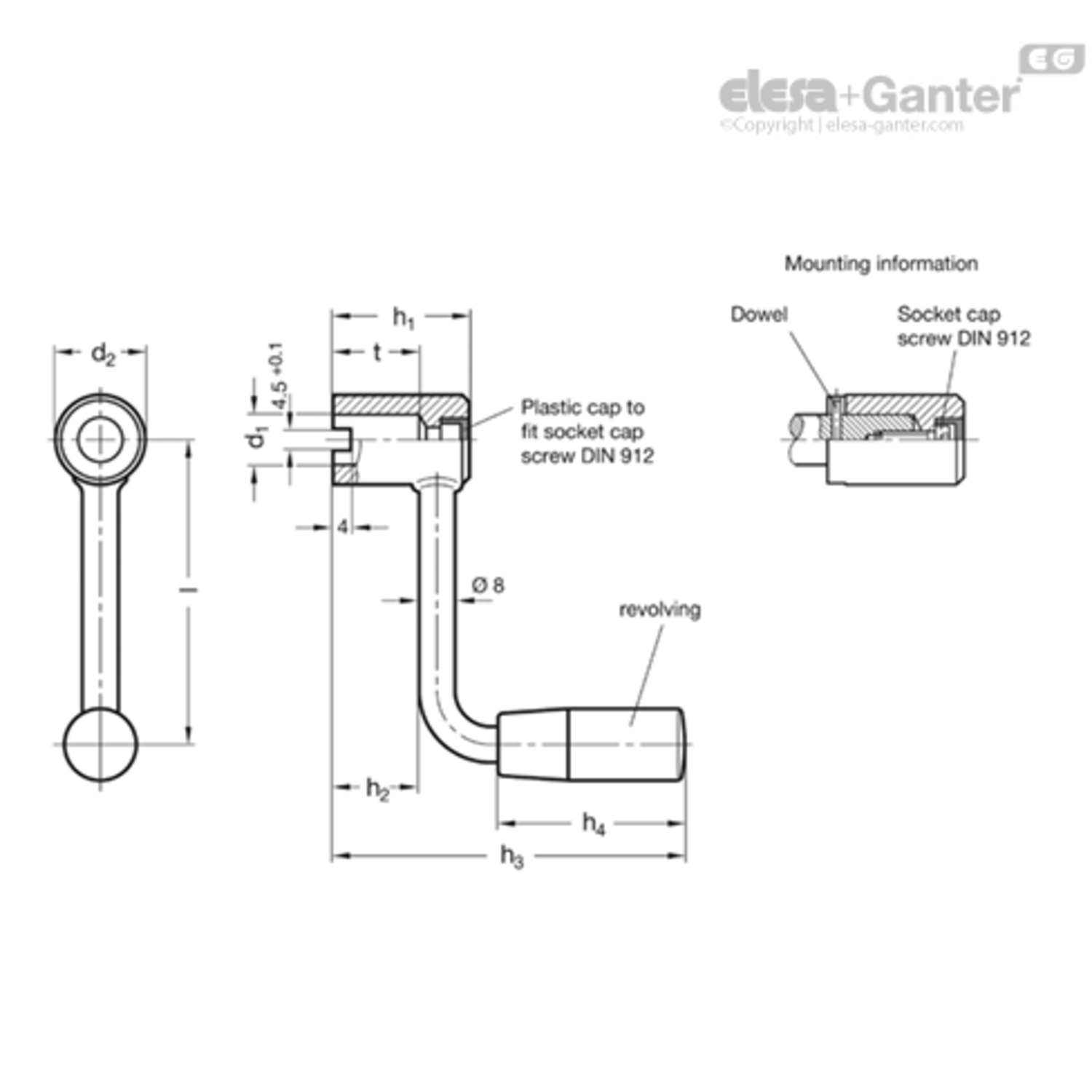

A suitable dowel in the shaft and the slot in the handle provides a cheap connection to the shaft. To secure the handle permanently to the shaft, remove the plastic cap and insert screw.

Due to the production method which is not dependent on a specific shape, these cranked handles can be produced as specials at a competitive price.

• Cross holes GN 110

• ISO-Fundamental Tolerances
