GN 423 Beugelgrepen
GN 423-A 1

GN 423
Beugelgrepen

Bekijk volledig
__logo__RoHS__ __logo__IF__

Omschrijving

1Specification

Types

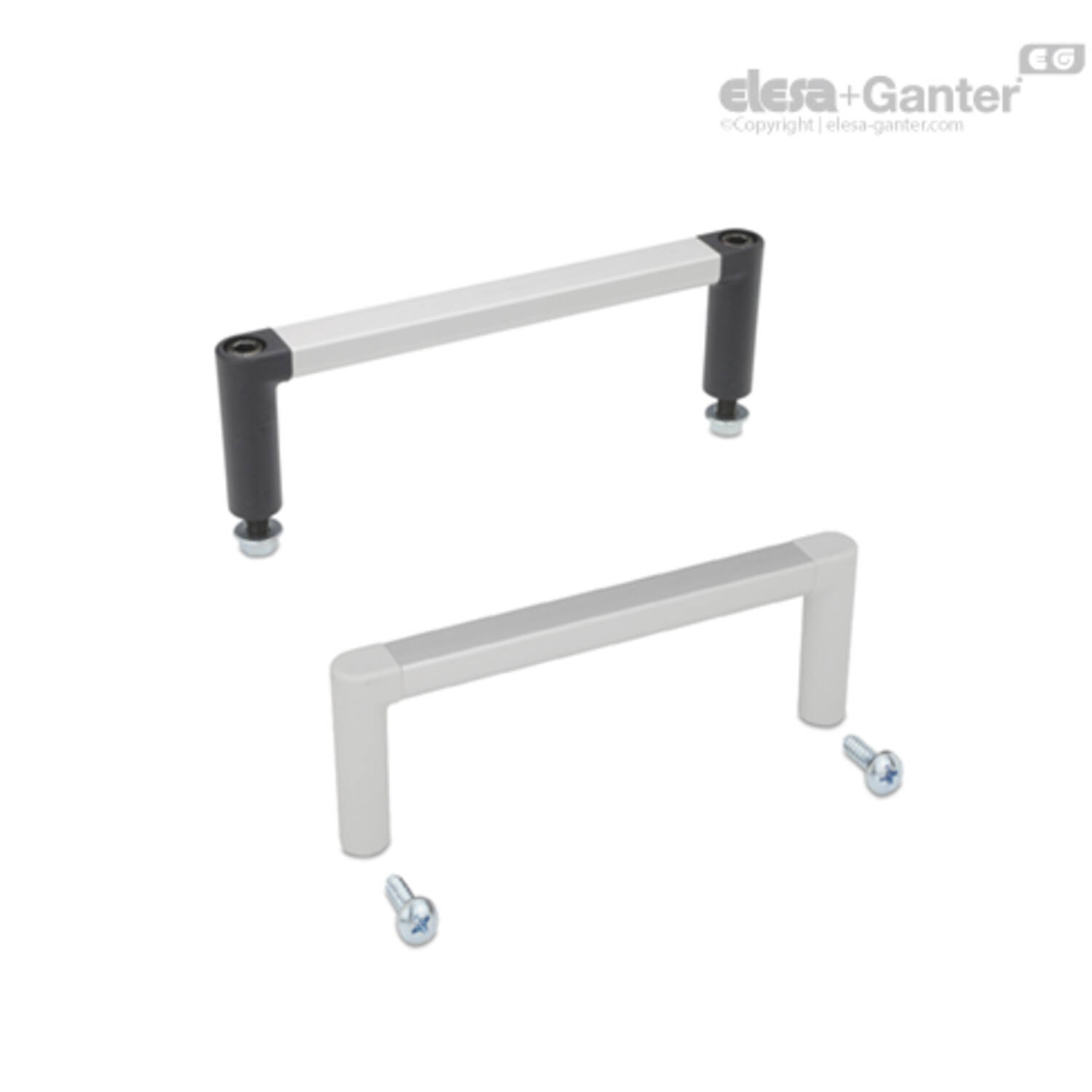

  • Type A: Mounting from the back (Self-tapping screws)
  • Type B: Mounting from the operators side

Handle bar

Aluminium

Handle shanks

Plastic (Polyamide PA)

  • glas fibre reinforced
  • temperature resistant up to 130 °C

Handle bar ELS

anodized, natural colour

Handle shanks

black, matt

Handle bar ESS

anodized, black

Handle shanks

black, matt

Handle bar ELG

anodized, natural colour

Handle shanks

light grey, matt

Socket cap screws DIN 912-M5-45

Steel, zinc plated, black

Flange nuts DIN 1661-M5

Steel, zinc plated, blue passivated

Self-tapping screws ISO 7049

Steel zinc plated ST 4.8-19

2Information

The dimensisons of the Rack Handles GN 423 have been designed to match a 19"" rack and ennclosure layout.

The values of the height unit HE given in the table refer to the corresponding front panel heights of the housings.

Handle bar and handle shanks are interconnected via a plug-type connection, with the effect that special lengths are easily realised.

Thanks to the fixing screws included in the set, the Rack Handles are easily and economically mounted.

3Technical information

Uitvoering

GN 423-A
GN 423-A Rack handgreep voor 19“ Rack, geanodiseerd, aluminium, montage achterzijde door parker, kunststof steunvoeten
GN 423-B
GN 423-B Rack handgreep voor 19“ Rack, geanodiseerd, aluminium, montage voorzijde, doorlopend gat voor cilinderbout, kunststof steunvoeten
Sleep voor meer info
Toon alleen voorraad
Filters resetten 		Filter:

Code

Product omschrijving

Aantal

Prijs

Bestel

CAD
109530610 GN 423-12-100-A-ELG
€ 7,83
109530615 GN 423-12-100-A-ELS
€ 7,83
109530620 GN 423-12-100-A-ESS
€ 7,83
109530640 GN 423-12-120-A-ELG
€ 7,95
109530645 GN 423-12-120-A-ELS
€ 7,95
109530650 GN 423-12-120-A-ESS
€ 7,95
109530670 GN 423-12-180-A-ELG
€ 8,32
109530675 GN 423-12-180-A-ELS
€ 8,32
109530680 GN 423-12-180-A-ESS
€ 8,32
109530700 GN 423-12-235-A-ELG
€ 8,71
109530705 GN 423-12-235-A-ELS
€ 8,71
109530710 GN 423-12-235-A-ESS
€ 8,71
109530730 GN 423-12-55-A-ELG
€ 7,30
109530735 GN 423-12-55-A-ELS
€ 7,30
109530740 GN 423-12-55-A-ESS
€ 7,30
109530760 GN 423-12-88-A-ELG
€ 7,69
109530765 GN 423-12-88-A-ELS
€ 7,69
109530770 GN 423-12-88-A-ESS
€ 7,69

b2

h2

d2

l1

l3 max

l1 ±0.25

Gewicht (g)

s

l5 max

l6

HE

b1

d1

l4 min

h1

d3

l2
12.5 34.5 4.3 100 5 100 34 9 5 10.5 3 12 M 5 14 40 12.5 112.5
12.5 34.5 4.3 100 5 100 34 9 5 10.5 3 12 M 5 14 40 12.5 112.5
12.5 34.5 4.3 100 5 100 34 9 5 10.5 3 12 M 5 14 40 12.5 112.5
12.5 34.5 4.3 120 5 120 37 9 5 10.5 4 12 M 5 14 40 12.5 132.5
12.5 34.5 4.3 120 5 120 37 9 5 10.5 4 12 M 5 14 40 12.5 132.5
12.5 34.5 4.3 120 5 120 37 9 5 10.5 4 12 M 5 14 40 12.5 132.5
12.5 34.5 4.3 180 5 180 50 9 5 10.5 5 12 M 5 14 40 12.5 192.5
12.5 34.5 4.3 180 5 180 50 9 5 10.5 5 12 M 5 14 40 12.5 192.5
12.5 34.5 4.3 180 5 180 50 9 5 10.5 5 12 M 5 14 40 12.5 192.5
12.5 34.5 4.3 235 5 235 59 9 5 10.5 6 12 M 5 14 40 12.5 247.5
12.5 34.5 4.3 235 5 235 59 9 5 10.5 6 12 M 5 14 40 12.5 247.5
12.5 34.5 4.3 235 5 235 59 9 5 10.5 6 12 M 5 14 40 12.5 247.5
12.5 34.5 4.3 55 5 55 27 9 5 10.5 2 12 M 5 14 40 12.5 67.5
12.5 34.5 4.3 55 5 55 27 9 5 10.5 2 12 M 5 14 40 12.5 67.5
12.5 34.5 4.3 55 5 55 27 9 5 10.5 2 12 M 5 14 40 12.5 67.5
12.5 34.5 4.3 88 5 88 31 9 5 10.5 3 12 M 5 14 40 12.5 100.5
12.5 34.5 4.3 88 5 88 31 9 5 10.5 3 12 M 5 14 40 12.5 100.5
12.5 34.5 4.3 88 5 88 31 9 5 10.5 3 12 M 5 14 40 12.5 100.5
