GN 425.9

Inklapbare handgrepen

Types

• Type A: Thread for fixing from the back

• Type B: Through-hole for fixing from the operators side

• Type C: Fixed from the operators side by means of welding

Identification no.

• No. 1: Handle 90° foldaway

• No. 2: Handle 90° foldaway, with retaining spring

• No. 3: Handle 180° foldaway

• No. 4: Handle 180° foldaway, with retaining spring

Attachment part

Stainless Steel precision casting

AISI CF-8 NI

matte shot-blasted GS

plastic coated (only type A and B)

black, RAL 9005, textured finish SW

Handle

Stainless Steel

AISI 304

matte shot-blasted

Retaining springs

spring steel

AISI 301

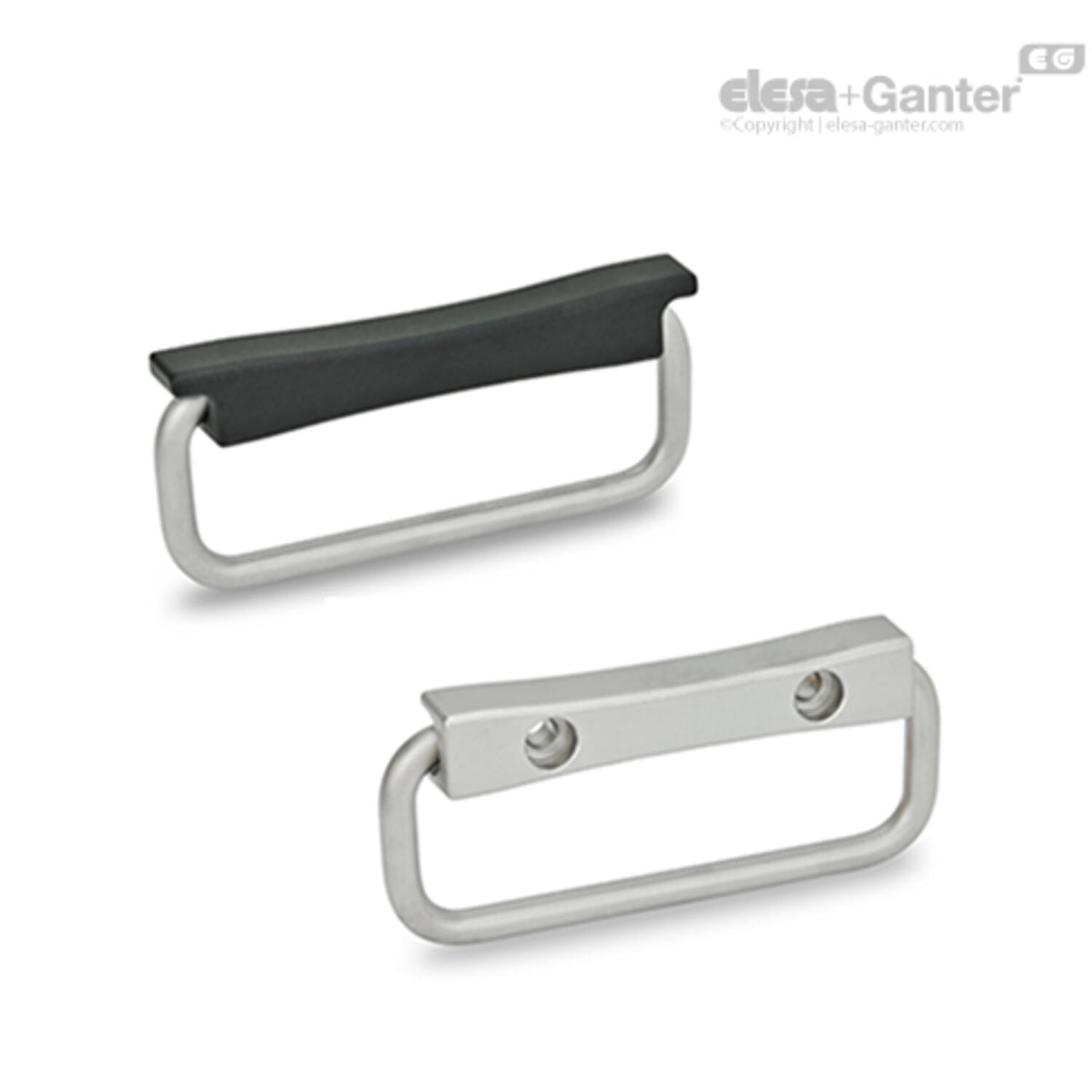

GN 425.9 Stainless Steel-Folding handles are used where the handle must only protrude a short distance in the resting position.

Folding handles numbers 1 and 2 are suitable for side “access,” as these have a 90° limit stop. If used from above, numbers 3 and 4 with a handle which can fold freely through 180° are a better version.

The retaining springs of numbers 2 and 4 keep the handle in any position. This keeps the handle in a position which can be easily accessed and prevents noise as a result of vibration in the resting position.

The handle and the retaining springs are secured by mounting the attachment across the entire surface. All components are supplied unassembled.

• Stainless Steel characteristics
