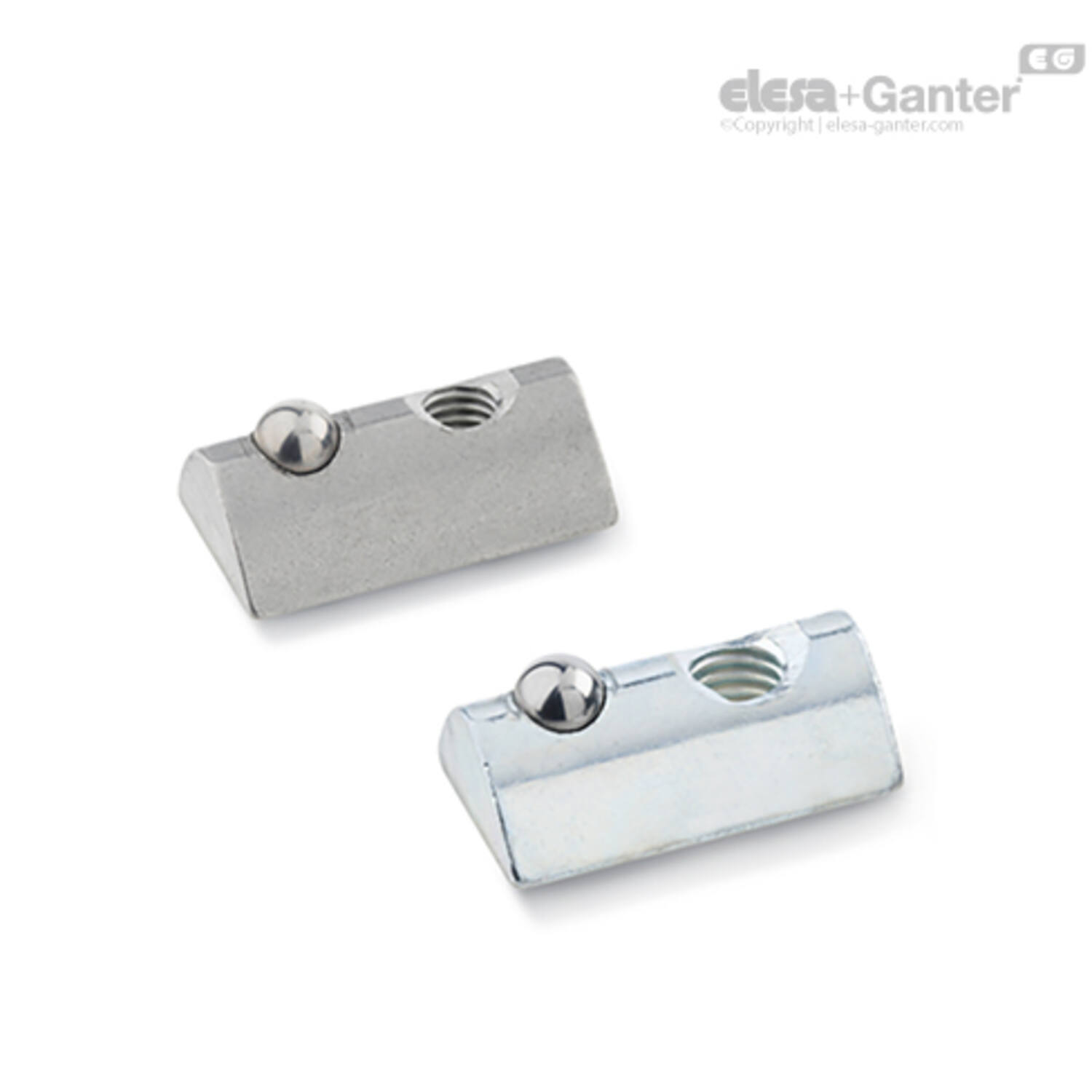

GN 506.1

T-moeren

Version in Steel

Steel

zinc plated, blue passivated

Version in Stainless Steel

Stainless steel NI

Ball

Stainless Steel

Spring

Stainless Steel

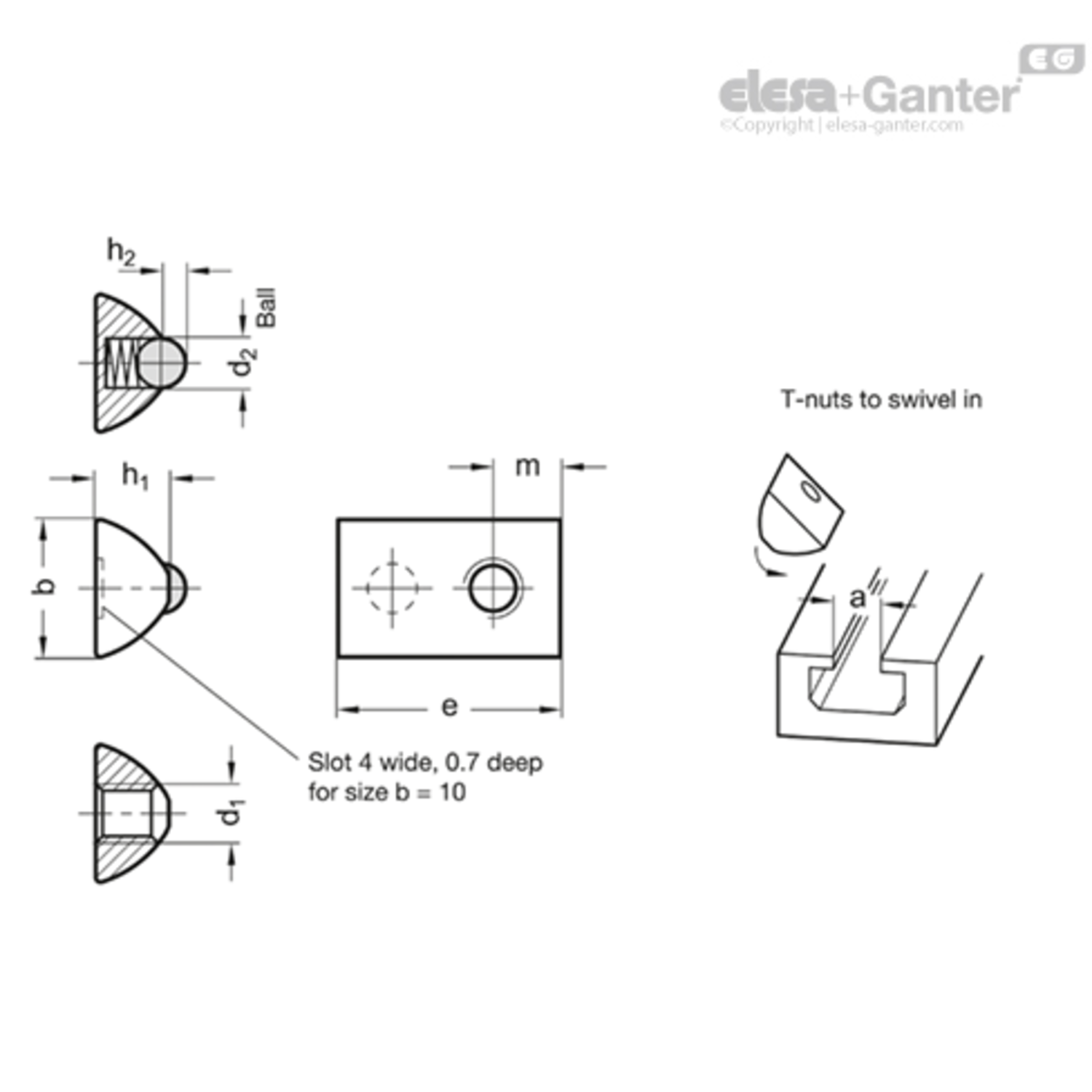

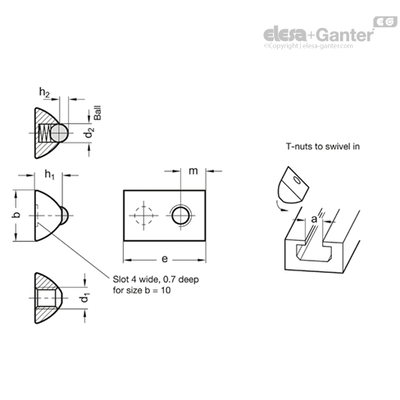

T-Nuts GN 506.1 can be turned into position, i.e. they can be inserted at any point along the slot.

The spring loaded ball will prevent an unwanted movement of the nut in the slot which can easily occur on a bed with the T-slots in a vertical position.

As an example Nuts GN 506.1 can be used to fit hinges to commercially available extrusion rails.
