GN 508.2
T-moeren
Omschrijving
Heat-treated steel
Tensile strength class 8
zinc plated, blue passivated
Tensile strength class 10
blackened
T-nuts GN 508.2 are dimensionally indetical to DIN 508 -.

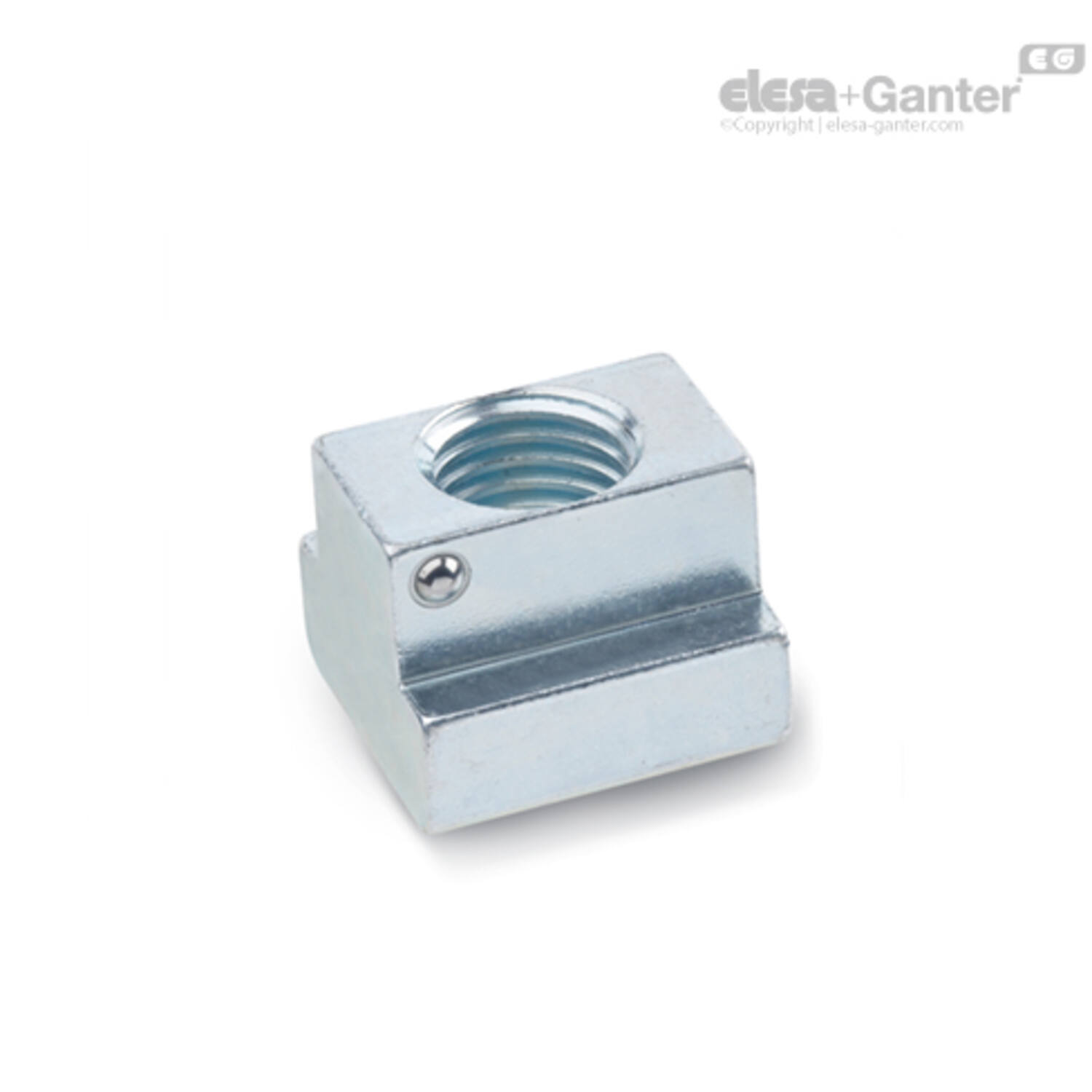

They are, however, fitted on the side with a spring loaded ball. This will prevent an unwanted movement of the nut, especially in a vertically mounted T-slot bed.
Uitvoering
Scroll onderstaande tabel om meer te zien
Code |
Product omschrijving |
Aantal |
Prijs |
Bestel |
CAD |

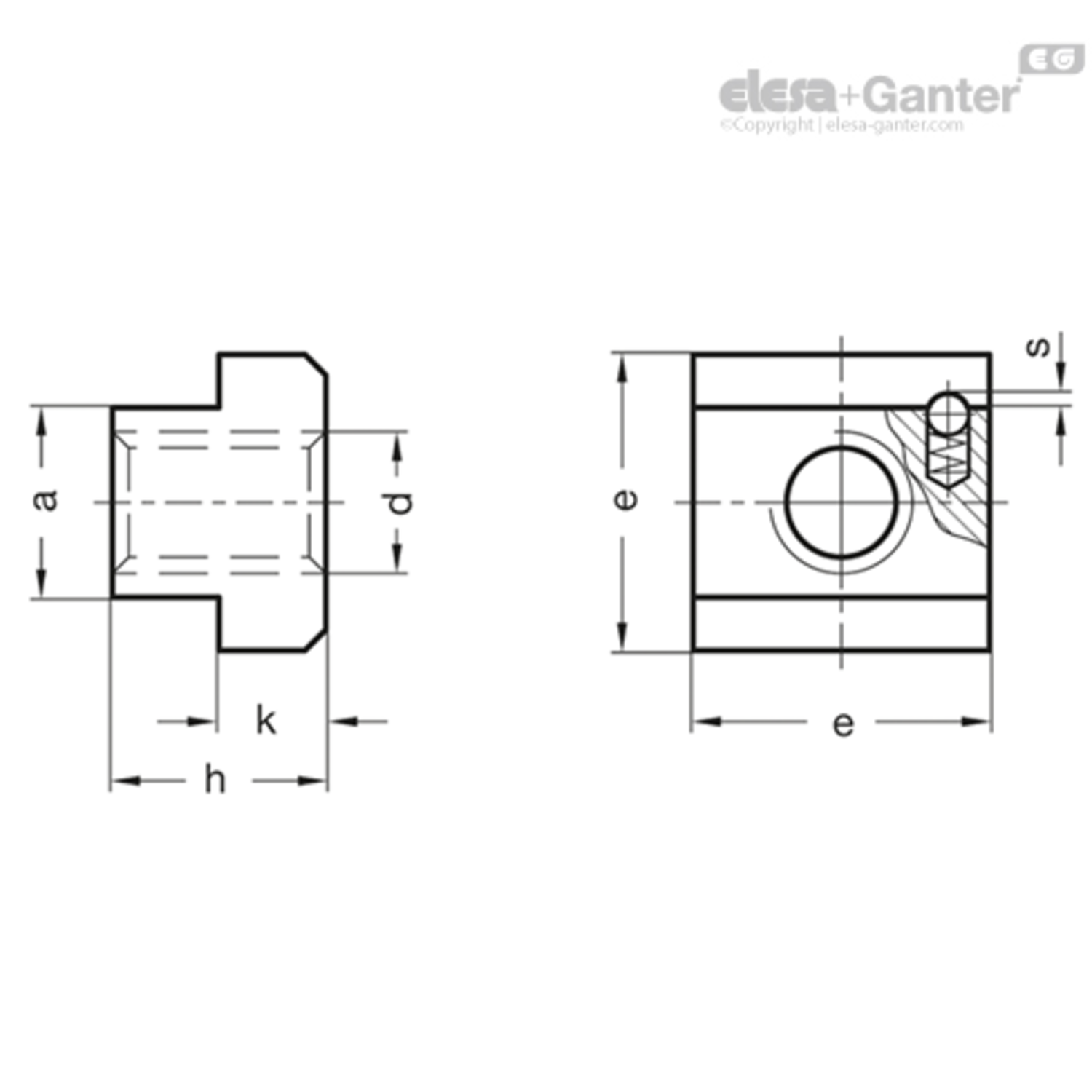

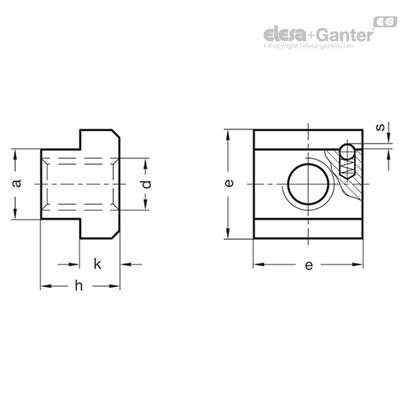

e |
h |
T-slot wijdte DIN 650 |
k |
Gewicht (g) |
s |
d |
a -0.3/-0.5 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Filter |
|
|
|
|
|
|
|
|
|||||
100106800 | GN 508.2-10-M8-10 |
|
15 | 12 | 10 | 6 | 14 | 0.65 | M 8 | 10 | |||
100106810 | GN 508.2-10-M8-8 |
|
15 | 12 | 10 | 6 | 14 | 0.65 | M 8 | 10 | |||
100106820 | GN 508.2-12-M10-10 |
|
18 | 14 | 12 | 7 | 22 | 0.65 | M 10 | 12 | |||
100106830 | GN 508.2-12-M10-8 |
|
18 | 14 | 12 | 7 | 22 | 0.65 | M 10 | 12 | |||
100106840 | GN 508.2-14-M12-10 |
|
22 | 16 | 14 | 8 | 34 | 1 | M 12 | 14 | |||
100106850 | GN 508.2-14-M12-8 |
|
22 | 16 | 14 | 8 | 34 | 1 | M 12 | 14 | |||
100106860 | GN 508.2-18-M16-10 |
|
28 | 20 | 18 | 10 | 68 | 1 | M 16 | 18 | |||
100106870 | GN 508.2-18-M16-8 |
|
28 | 20 | 18 | 10 | 68 | 1 | M 16 | 18 | |||
100106880 | GN 508.2-22-M20-10 |
|
35 | 28 | 22 | 14 | 155 | 1.6 | M 20 | 22 | |||
100106890 | GN 508.2-22-M20-8 |
|
35 | 28 | 22 | 14 | 155 | 1.6 | M 20 | 22 |
