GN 559
Beugelgrepen

Omschrijving

1Specification

Aluminium

plastic coated

black, RAL 9005, textured finish SW

silver, RAL 9006, textured finish SR

Cap (type C)

Plastic

black for SW

light grey for SR

2Information

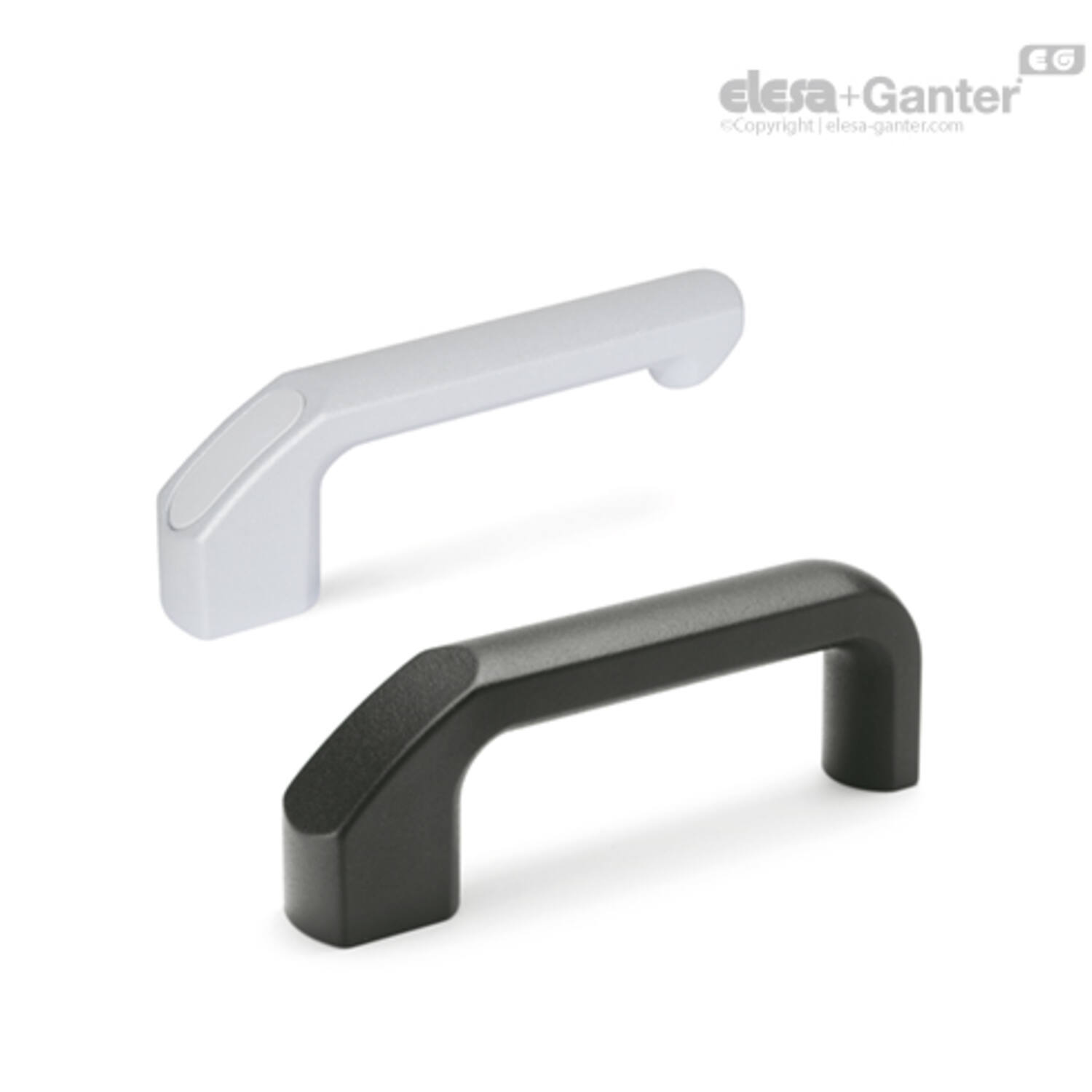

A special characteristic of the Handle GN 559 is the thumb rest pad on the front of the leg.

At the same time the extended leg offers an open ended version with wide access.

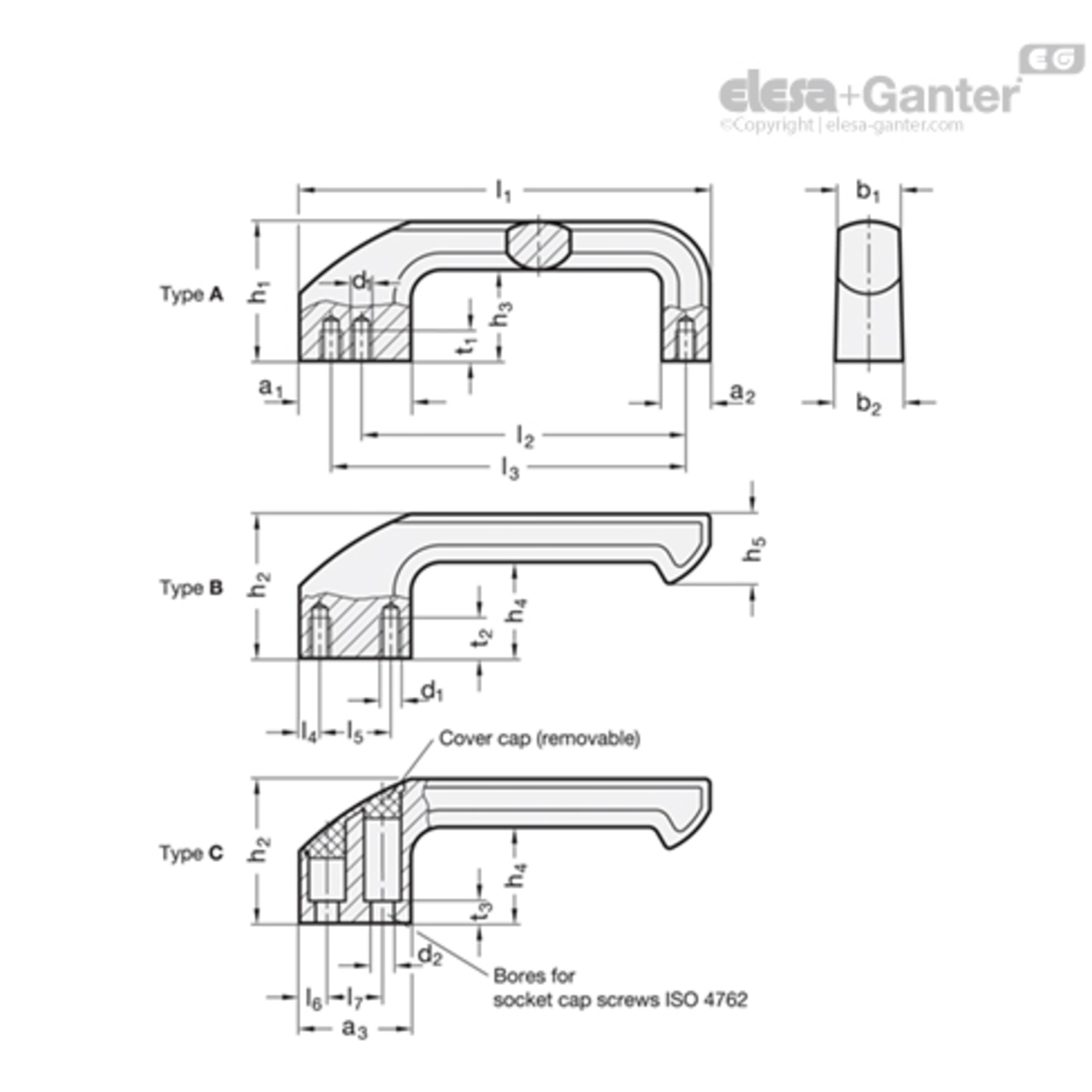

Handles GN 559 are known for their high stability. They are fixed by two M8 screws whereby type A offers two alternative hole centers (l₂ or l₃).

3Technical information

Sleep voor meer info

Code	Product omschrijving	Aantal	CAD
Toon alleen voorraad Filters resetten			Filter:
109556550	GN 559-162-C-SR	€ 14,42
109556555	GN 559-162-C-SW	€ 14,42

b2	h2	t1 min	a2	a3	d2	l1	h5	l3 ±0.2	l1 ±0.25	Gewicht (g)	l5	t2 min	l6	b1	d1	h1	l7	l4	h3	a1	h4	t3	l2

28	57	N.v.t.	N.v.t.	40	8.3	162	28	N.v.t.	162	223	N.v.t.	N.v.t.	10	25	N.v.t.	N.v.t.	20	N.v.t.	N.v.t.	N.v.t.	38	8	N.v.t.
28	57	N.v.t.	N.v.t.	40	8.3	162	28	N.v.t.	162	223	N.v.t.	N.v.t.	10	25	N.v.t.	N.v.t.	20	N.v.t.	N.v.t.	N.v.t.	38	8	N.v.t.
