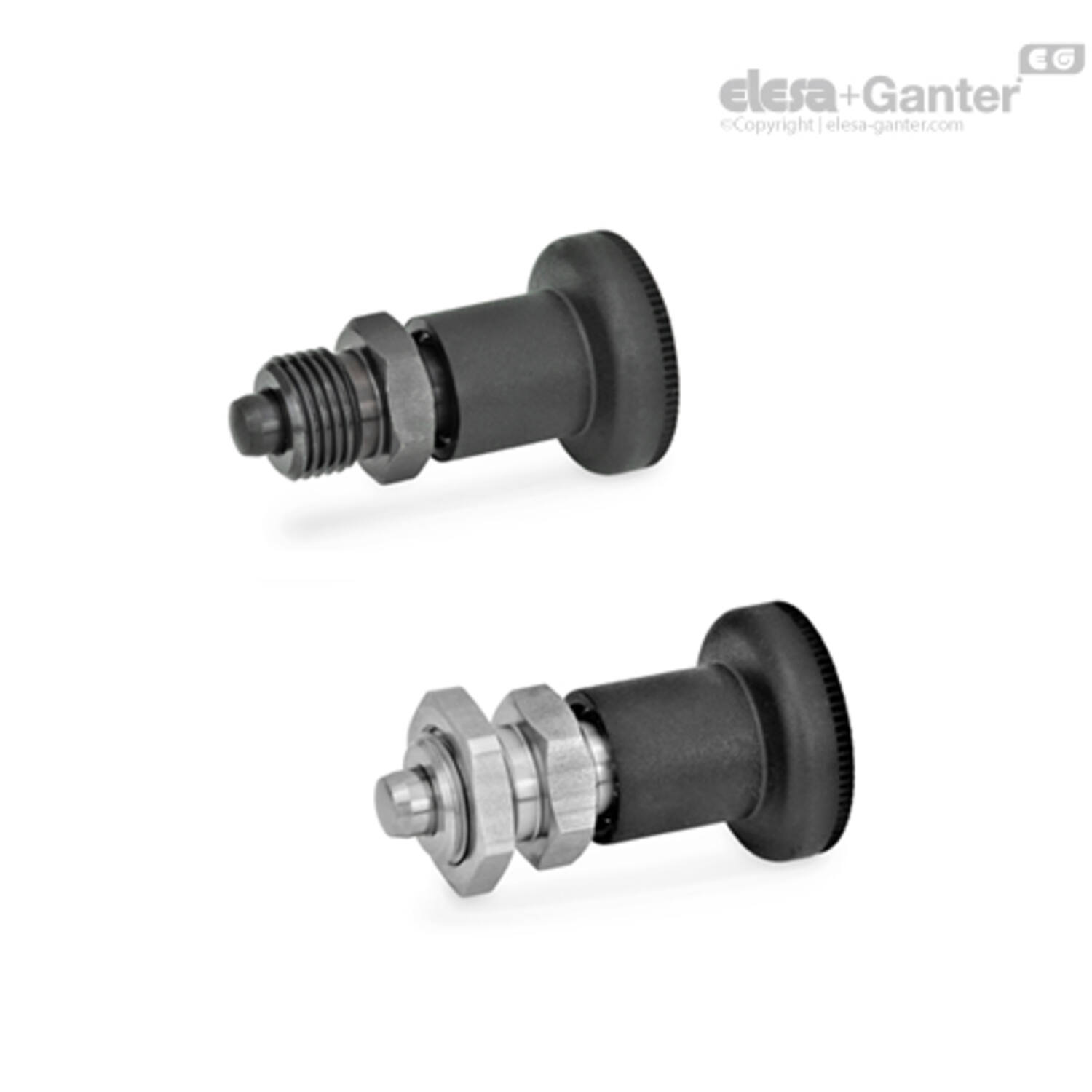

GN 607.1

Blokkeerbouten

Gezwart staal of RVS (1.4305 = A1 = AISI 303)

Omschrijving

1Specification

Types

  • Type A: without lock nut
  • Type AK: with lock nut

Version in Steel ST

  • blackened
  • Pin hardened

Version in Stainless Steel AISI 303 NI

Pin chemically nickel plated

Knob

Plastic (Polyamide PA)

  • black, matt
  • not removable
2Information

Indexing plungers GN 607.1 with rest position are used for such applications where the plunger has to stay in its rectracted position. To achieve this, the knob is roated by 90° degrees after being rectracted. A notch keept the plunger in this position.

Indexing plungers GN 607.1 are distinguished for their small dimensions. The extremely low luck nuts GN 909 / GN 909.5 enlarge the mounting options. The locking tab is an integral part of the knob thus giving reliable operations at all times.

3Technical information

Scroll onderstaande tabel om meer te zien

Code

Product omschrijving

Aantal

Prijs

Bestel

CAD

d2

l1

Gewicht (g)

Ax. belasting in N

Veerdruk in N2

Veerdruk in N3

AF

l3 -0.15

l4

d3

e ≈

d1 Pin -0.02/-0.05 Boring H7

l2 ±0.5

Filter
100919220 GN 607.1-6-A-ST
€ 12,32
M 12 x 1.5 45 34 400 28 11 17 10 5 25 19.6 6 6
100919230 GN 607.1-6-AK-ST
€ 13,93
M 12 x 1.5 45 39 400 28 11 17 10 5 25 19.6 6 6
100919250 GN 607.1-8-A-ST
€ 13,37
M 16 x 1.5 54 59 500 29 15 19 12 6 31 21.9 8 8
100919240 GN 607.1-8-AK-ST
€ 15,32
M 16 x 1.5 54 69 500 29 15 19 12 6 31 21.9 8 8
