GN 609.5 Afstandbussen RVS
GN 609.5 1
GN 609.5 2

GN 609.5
Afstandbussen RVS

RVS (1.4305 = A1 = AISI 303)

Bekijk volledig
__logo__INOX__ __logo__RoHS__

Omschrijving

1Specificatie

RVS AISI 303

2Informatie

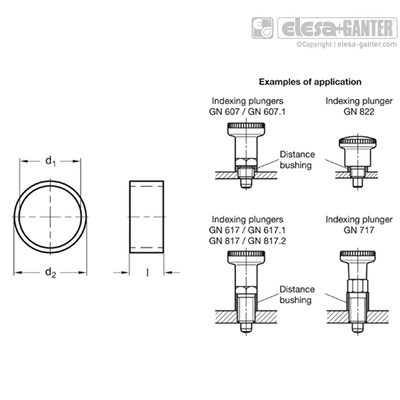

Afstandsbussen GN 609.5 compenseren de lengtes van de schroefdraad van de behuizing op de indexeerbouten en nokindexeerbouten om montage door wanden van verschillende dikte mogelijk te maken.

3Technische informatie

Uitvoering

GN 609.5
GN 609.5 Afstandsbus, RVS
Sleep voor meer info
Toon alleen voorraad
Filters resetten 		Filter:

Code

Product omschrijving

Aantal

Prijs

Bestel

CAD
100919103 GN 609.5-10-12-10
€ 1,02
100919104 GN 609.5-10-12-12
€ 1,12
100919105 GN 609.5-10-12-2
€ 0,78
100919106 GN 609.5-10-12-4
€ 0,83
100919107 GN 609.5-10-12-6
€ 0,98
100919108 GN 609.5-10-12-8
€ 0,93
100116830 GN 609.5-12-14-10
€ 1,07
100116840 GN 609.5-12-14-12
€ 1,05
100116850 GN 609.5-12-14-14
€ 1,29
100919109 GN 609.5-12-14-2
€ 0,83
100919111 GN 609.5-12-14-4
€ 0,83
100919112 GN 609.5-12-14-6
€ 0,95
100919113 GN 609.5-12-14-8
€ 0,98
100116860 GN 609.5-12-17-10
€ 1,42
100116870 GN 609.5-12-17-12
€ 1,76
100919114 GN 609.5-12-17-2
€ 1,05
100919115 GN 609.5-12-17-4
€ 1,24
100919211 GN 609.5-12-17-5
€ 1,27
100116880 GN 609.5-12-17-6
€ 1,17
100116890 GN 609.5-12-17-8
€ 1,39
100919117 GN 609.5-16-17-10
€ 1,51
100919118 GN 609.5-16-17-12
€ 1,73
100116900 GN 609.5-16-17-2
€ 1,17
100919119 GN 609.5-16-17-4
€ 1,29
100919121 GN 609.5-16-17-6
€ 1,17
100919122 GN 609.5-16-17-8
€ 1,22
100919123 GN 609.5-16-19-10
€ 2,03
100919124 GN 609.5-16-19-12
€ 2,05
100919125 GN 609.5-16-19-2
€ 1,51
100919126 GN 609.5-16-19-4
€ 1,61
100919127 GN 609.5-16-19-6
€ 1,71
100919128 GN 609.5-16-19-8
€ 1,88
100116910 GN 609.5-20-22-10
€ 1,95
100116920 GN 609.5-20-22-12
€ 2,34
100116930 GN 609.5-20-22-14
€ 2,24
100116940 GN 609.5-20-22-16
€ 2,32
100116950 GN 609.5-20-22-18
€ 2,44
100116960 GN 609.5-20-22-6
€ 1,83
100116970 GN 609.5-20-22-8
€ 1,88
100116980 GN 609.5-6-7-2
€ 0,54
100116990 GN 609.5-6-7-4
€ 0,54
100117000 GN 609.5-6-7-6
€ 0,56
100117010 GN 609.5-6-7-8
€ 0,61
100918994 GN 609.5-8-10-10
€ 0,83
100918995 GN 609.5-8-10-2
€ 0,66
100918997 GN 609.5-8-10-4
€ 0,68
100918998 GN 609.5-8-10-6
€ 0,71
100918999 GN 609.5-8-10-8
€ 0,76

l ±0.1

voor draad Ø

Gewicht (g)

voor blokkeerbouten

d2 -0.1

d1 H12
10 M 10 3 GN 617 |.1 |.2 / GN 717 / GN 817 |.2 / GN 822 |.1 |.6 |.7 12 10
12 M 10 3 GN 617 |.1 |.2 / GN 717 / GN 817 |.2 / GN 822 |.1 |.6 |.7 12 10
2 M 10 1 GN 617 |.1 |.2 / GN 717 / GN 817 |.2 / GN 822 |.1 |.6 |.7 12 10
4 M 10 2 GN 617 |.1 |.2 / GN 717 / GN 817 |.2 / GN 822 |.1 |.6 |.7 12 10
6 M 10 2 GN 617 |.1 |.2 / GN 717 / GN 817 |.2 / GN 822 |.1 |.6 |.7 12 10
8 M 10 2 GN 617 |.1 |.2 / GN 717 / GN 817 |.2 / GN 822 |.1 |.6 |.7 12 10
10 M12 2 GN 617 |.1 |.2 / GN 717 / PMT.200 / GN 816 |.1 / GN 817 |.2 |.4|.8 / GN 514 / GN 612.8 / GN 822 |.1 |.6 |.7 14 12
12 M12 4 GN 617 |.1 |.2 / GN 717 / PMT.200 / GN 816 |.1 / GN 817 |.2 |.4|.8 / GN 514 / GN 612.8 / GN 822 |.1 |.6 |.7 14 12
14 M12 4 GN 617 |.1 |.2 / GN 717 / PMT.200 / GN 816 |.1 / GN 817 |.2 |.4|.8 / GN 514 / GN 612.8 / GN 822 |.1 |.6 |.7 14 12
2 M12 1 GN 617 |.1 |.2 / GN 717 / PMT.200 / GN 816 |.1 / GN 817 |.2 |.4|.8 / GN 514 / GN 612.8 / GN 822 |.1 |.6 |.7 14 12
4 M12 1 GN 617 |.1 |.2 / GN 717 / PMT.200 / GN 816 |.1 / GN 817 |.2 |.4|.8 / GN 514 / GN 612.8 / GN 822 |.1 |.6 |.7 14 12
6 M12 2 GN 617 |.1 |.2 / GN 717 / PMT.200 / GN 816 |.1 / GN 817 |.2 |.4|.8 / GN 514 / GN 612.8 / GN 822 |.1 |.6 |.7 14 12
8 M12 2 GN 617 |.1 |.2 / GN 717 / PMT.200 / GN 816 |.1 / GN 817 |.2 |.4|.8 / GN 514 / GN 612.8 / GN 822 |.1 |.6 |.7 14 12
10 M12 8 GN 414 |.1 / GN 607 |.1 17 12
12 M12 10 GN 414 |.1 / GN 607 |.1 17 12
2 M12 2 GN 414 |.1 / GN 607 |.1 17 12
4 M12 3 GN 414 |.1 / GN 607 |.1 17 12
5 M12 4 GN 414 |.1 / GN 607 |.1 17 12
6 M12 6 GN 414 |.1 / GN 607 |.1 17 12
8 M12 7 GN 414 |.1 / GN 607 |.1 17 12
10 M 16 2 GN 514 / GN 717 / GN 816 |.1 / GN 817 |.2 |.4|.8 / GN 822 |.1 |.6 |.7|.8 17 16
12 M 16 2 GN 514 / GN 717 / GN 816 |.1 / GN 817 |.2 |.4|.8 / GN 822 |.1 |.6 |.7|.8 17 16
2 M 16 1 GN 514 / GN 717 / GN 816 |.1 / GN 817 |.2 |.4|.8 / GN 822 |.1 |.6 |.7|.8 17 16
4 M 16 1 GN 514 / GN 717 / GN 816 |.1 / GN 817 |.2 |.4|.8 / GN 822 |.1 |.6 |.7|.8 17 16
6 M 16 1 GN 514 / GN 717 / GN 816 |.1 / GN 817 |.2 |.4|.8 / GN 822 |.1 |.6 |.7|.8 17 16
8 M 16 1 GN 514 / GN 717 / GN 816 |.1 / GN 817 |.2 |.4|.8 / GN 822 |.1 |.6 |.7|.8 17 16
10 M 16 6 GN 414 |.1 / GN 607 |.1 / GN 612.8 / PMT.200 / GN 617 |.1 |.2 / GN 7336.8 / GN 816.1 / GN 822 |.1 |.6 |.7 19 16
12 M 16 7 GN 414 |.1 / GN 607 |.1 / GN 612.8 / PMT.200 / GN 617 |.1 |.2 / GN 7336.8 / GN 816.1 / GN 822 |.1 |.6 |.7 19 16
2 M 16 1 GN 414 |.1 / GN 607 |.1 / GN 612.8 / PMT.200 / GN 617 |.1 |.2 / GN 7336.8 / GN 816.1 / GN 822 |.1 |.6 |.7 19 16
4 M 16 2 GN 414 |.1 / GN 607 |.1 / GN 612.8 / PMT.200 / GN 617 |.1 |.2 / GN 7336.8 / GN 816.1 / GN 822 |.1 |.6 |.7 19 16
6 M 16 4 GN 414 |.1 / GN 607 |.1 / GN 612.8 / PMT.200 / GN 617 |.1 |.2 / GN 7336.8 / GN 816.1 / GN 822 |.1 |.6 |.7 19 16
8 M 16 5 GN 414 |.1 / GN 607 |.1 / GN 612.8 / PMT.200 / GN 617 |.1 |.2 / GN 7336.8 / GN 816.1 / GN 822 |.1 |.6 |.7 19 16
10 M 20 5 GN 612.8 / GN 617 |.1 |.2 / GN 817 |.2 |.4|.8 22 20
12 M 20 6 GN 612.8 / GN 617 |.1 |.2 / GN 817 |.2 |.4|.8 22 20
14 M 20 7 GN 612.8 / GN 617 |.1 |.2 / GN 817 |.2 |.4|.8 22 20
16 M 20 9 GN 612.8 / GN 617 |.1 |.2 / GN 817 |.2 |.4|.8 22 20
18 M 20 9 GN 612.8 / GN 617 |.1 |.2 / GN 817 |.2 |.4|.8 22 20
6 M 20 3 GN 612.8 / GN 617 |.1 |.2 / GN 817 |.2 |.4|.8 22 20
8 M 20 4 GN 612.8 / GN 617 |.1 |.2 / GN 817 |.2 |.4|.8 22 20
2 M 6 1 GN 717 7 6
4 M 6 1 GN 717 7 6
6 M 6 1 GN 717 7 6
8 M 6 1 GN 717 7 6
10 M 8 3 GN 717 / GN 817 / GN 817.2 / GN 822 10 8
2 M 8 1 GN 717 / GN 817 / GN 817.2 / GN 822 10 8
4 M 8 1 GN 717 / GN 817 / GN 817.2 / GN 822 10 8
6 M 8 1 GN 717 / GN 817 / GN 817.2 / GN 822 10 8
8 M 8 2 GN 717 / GN 817 / GN 817.2 / GN 822 10 8
