GN 614.1

Drukstukhouders

Vernikkeld zink spuitgiet

Omschrijving

1Specification

Types

  • Type LKU: Fixing from the left, with spring plunger
  • Type RKU: Fixing from the right, with spring plunger
  • Type BKU: Fixing from both sides, with spring plunger
  • Type L: Fixing from the left, without spring plunger
  • Type R: Fixing from the right, without spring plunger
  • Type B: Fixing from both sides, without spring plunger

Zinc die casting

nickel plated

Spring plungers GN 614-KU

Housing

Plastic (Polyacetal POM)

temperature resistant up to 50 °C

Ball Stainless Steel AISI 420C, hardened

2Information

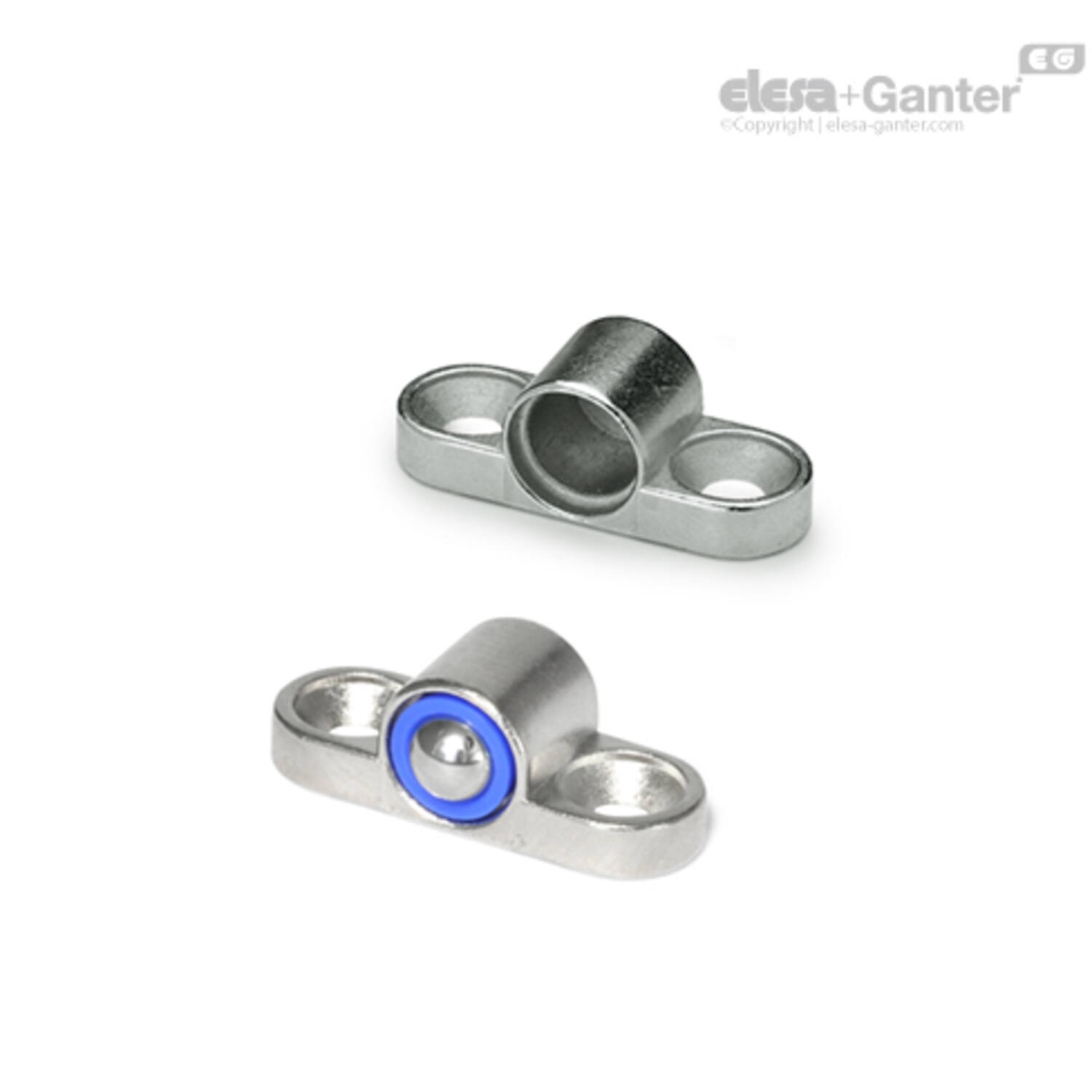

Holder for spring plungers / Side thrust pins GN 614.1 are used for arresting and as press-on or press-off elements. The easy attachment using one or two countersunk screws also allows its use where a location borehole with the tolerance field H7 for the spring plunger would not be possible from its size and manufacturability.

Side thrust pins GN 614.1 consist of a holder for spring plungers and a Stainless Steel-Spring plungerGN 614 of type KU.

For types R, L and B, only a „empty“ holder for spring plungers (without spring plungers) are supplied which can then be used together with all other design variants of GN 614-6 and GN 614-8 of the types KD, MS and NI.

3Technical information

Scroll horizontaal onderaan de tabel en / of selecteer filters voor het gewenste resultaat

Code

Omschrijving

Aantal

Prijs

Bestel

CAD

d3

d4 -0.05

Gewicht (g)

Veerdruk in N4

w -0.1

d1

l2

Veerdruk in N5

B

h2

d2

Selecteer
100901889 GN 614.1-6-B
€ 1,31
3.2 | M 3 3 4 N.v.t. N.v.t. 6 3 N.v.t. 8.5 3.2 N.v.t.
109514845 GN 614.1-6-BKU
€ 2,71
3.2 | M 3 3 5 13 1.6 6 3 6.5 8.5 3.2 5
100901843 GN 614.1-6-L
€ 1,31
3.2 | M 3 3 3 N.v.t. N.v.t. 6 3 N.v.t. 8.5 3.2 N.v.t.
109514850 GN 614.1-6-LKU
€ 2,71
3.2 | M 3 3 4 13 1.6 6 3 6.5 8.5 3.2 5
100901846 GN 614.1-6-R
€ 1,31
3.2 | M 3 3 4 N.v.t. N.v.t. 6 3 N.v.t. 8.5 3.2 N.v.t.
109514855 GN 614.1-6-RKU
€ 2,71
3.2 | M 3 3 4 13 1.6 6 3 6.5 8.5 3.2 5
100901892 GN 614.1-8-B
€ 1,33
4.3 | M 4 4 8 N.v.t. N.v.t. 8 4 N.v.t. 10.5 4.2 N.v.t.
109514860 GN 614.1-8-BKU
€ 2,81
4.3 | M 4 4 7 18 1.9 8 4 8 10.5 4.2 6.5
100901888 GN 614.1-8-L
€ 1,33
4.3 | M 4 4 5 N.v.t. N.v.t. 8 4 N.v.t. 10.5 4.2 N.v.t.
109514865 GN 614.1-8-LKU
€ 2,81
4.3 | M 4 4 7 18 1.9 8 4 8 10.5 4.2 6.5
100901894 GN 614.1-8-R
€ 1,33
4.3 | M 4 4 5 N.v.t. N.v.t. 8 4 N.v.t. 10.5 4.2 N.v.t.
109514870 GN 614.1-8-RKU
€ 2,81
4.3 | M 4 4 7 18 1.9 8 4 8 10.5 4.2 6.5
