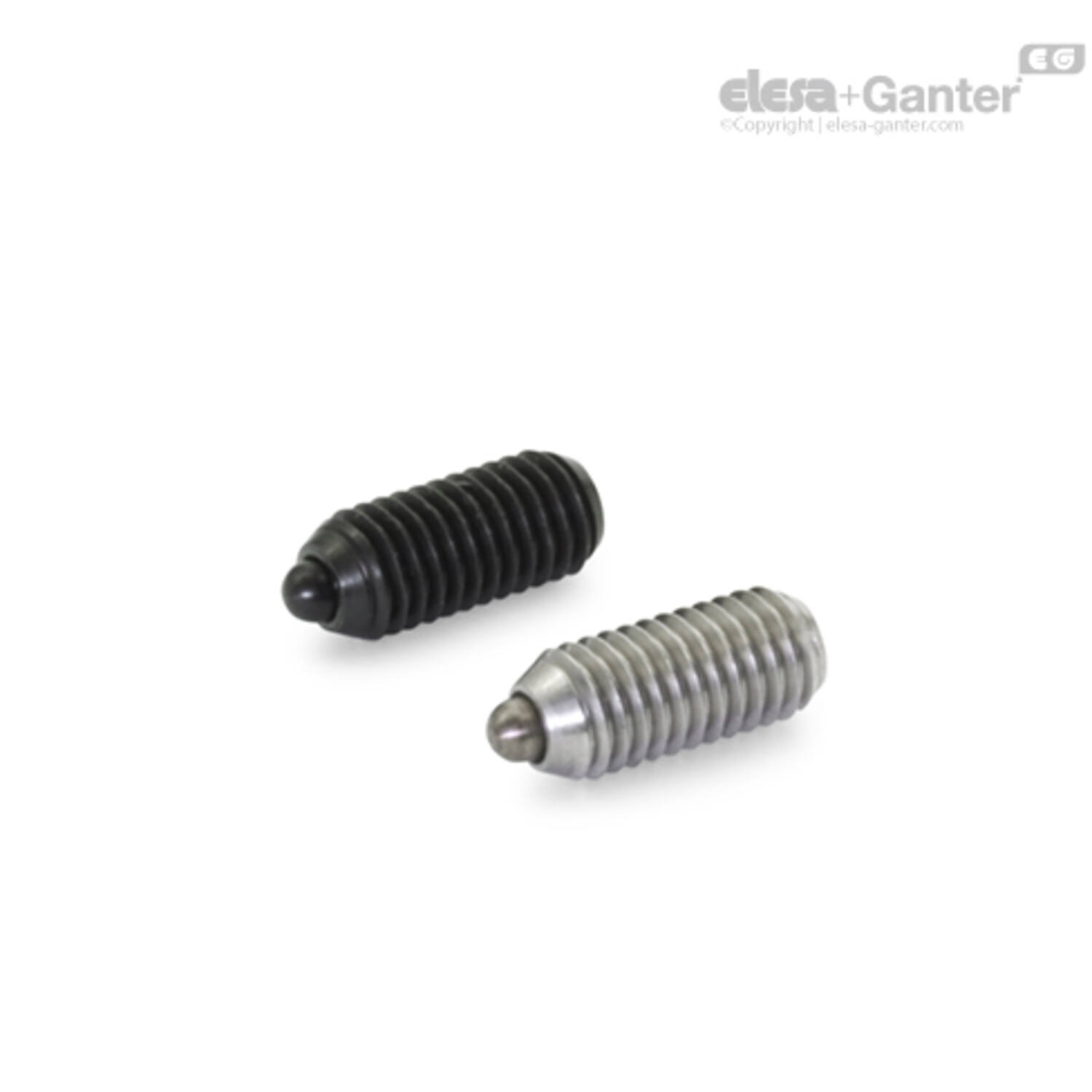

GN 615.4

Drukstukken

EG_GN_615_4_COMBI
GN 615.4-BN/BSN 1

GN 615.4

Drukstukken

Gezwart staal of RVS (1.4305 = A1 = AISI 303)

Bekijk volledig

Omschrijving

1Specification

Types

  • Type B: Steel, standard spring load
  • Type BN: Stainless Steel, standard spring load
  • Type BS: Steel, high spring load
  • Type BSN: Stainless Steel, high spring load

Type B / BS:

  • Housing Steel, blackened
  • Bolt Steel, hardened

Type BN / BSN

  • Housing Stainless Steel AISI 303
  • Bolt Stainless Steel AISI 420C, hardened

Marking of Type BS / BSN:

Housing with 2 longitudinal markings

Spring

Stainless Steel AISI 631

2Information

Spring plungers GN 615.4 are used as detents as well as for push-on and push-off applications and ejectors.

3On request
  • with thread locking PFB / MVK
4Technical information

Uitvoering

GN 615.4-B/BS
GN 615.4-B/BS Verend drukstuk met inbus, gezwart staal, drukstift, normale (B) / versterkte (BS) veerdruk
GN 615.4-BN/BSN
GN 615.4-BN/BSN Verend drukstuk met inbus, geheel RVS, drukstift, normale (BN) / versterkte (BSN) veerdruk

Scroll onderstaande tabel om meer te zien

Code

Product omschrijving

Aantal

Prijs

Bestel

CAD

l ±0.1

Gewicht (g)

Veerdruk in N4

d1

AF

d2 -0.1

w

Veerdruk in N5
Filter
100711450 GN 615.4-M10-BN
€ 8,81
23 9 42 M 10 5 4.5 2.5 19
100711460 GN 615.4-M10-BSN
€ 9,15
23 9 54 M 10 5 4.5 2.5 20
100711470 GN 615.4-M12-BN
€ 11,69
26 9 57 M12 6 6.2 3.5 22
100711480 GN 615.4-M12-BSN
€ 12,30
26 13 96 M12 6 6.2 3.5 38
100711490 GN 615.4-M16-BN
€ 17,96
33 32 78 M 16 8 8.5 4.5 ±0.3 38
100711500 GN 615.4-M16-BSN
€ 18,74
33 32 100 M 16 8 8.5 4.5 ±0.3 50
100711510 GN 615.4-M20-BN
€ 23,35
43 67 81 M 20 10 10 6.5 39
100711520 GN 615.4-M20-BSN
€ 24,03
43 68 133 M 20 10 10 6.5 52
100711530 GN 615.4-M24-BN
€ 37,11
48 104 155 M 24 12 13 8 72
100711540 GN 615.4-M24-BSN
€ 38,04
48 105 223 M 24 12 13 8 91
100711550 GN 615.4-M4-BN
€ 6,73
12 1 12.5 M 4 2 1.8 1.5 +0.3/-0.4 4.5
100711560 GN 615.4-M5-BN
€ 6,73
14 1 13 M 5 2.5 2.4 2 5
100711570 GN 615.4-M6-BN
€ 6,73
15 2 17 M 6 3 2.7 2 6
100711580 GN 615.4-M6-BSN
€ 7,05
15 2 25 M 6 3 2.7 2 11
100711590 GN 615.4-M8-BN
€ 7,78
18 4 33 M 8 4 3.8 2 16
100711600 GN 615.4-M8-BSN
€ 8,10
18 4 59 M 8 4 3.8 2 23
