GN 62 U-magneet
GN 62 1
GN 62 2

GN 62
U-magneet

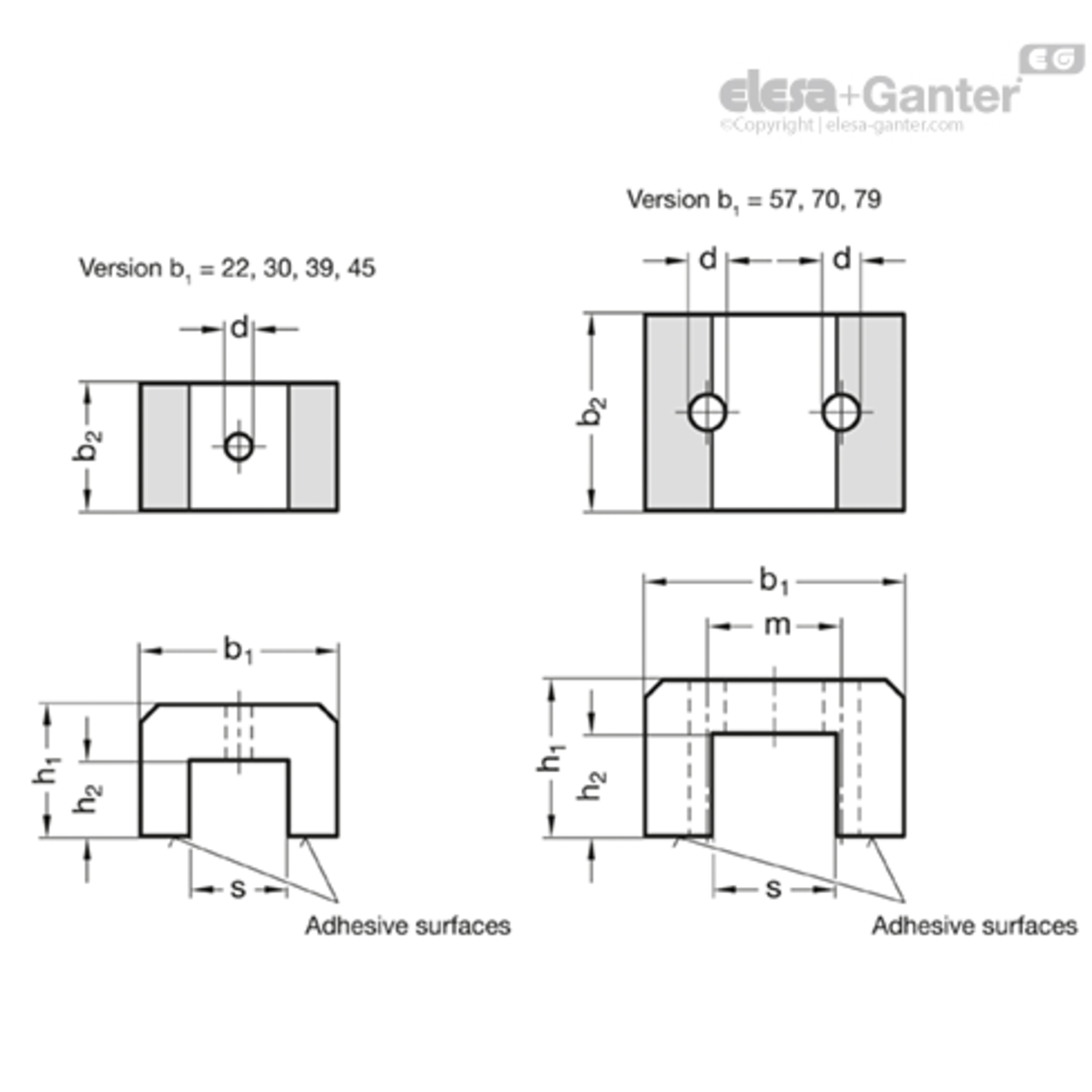

b1 = 22, 30, 39, 45, 60 = enkel doorlopend gat
b1 = 57, 70, 79 = twee doorlopende gaten

Rood gelakt; temperatuur max 180°C
Blank; temperatuur max 450°C

Bekijk volledig
__logo__RoHS__

Omschrijving

1Specification

Material of the magnet

AlNiCo AN

Aluminium, nickel, cobalt

temperature resistant up to 450 °C

Lacquering red

temperature resistant up to 180 °C

2Information

U-magnets GN 62 are unshielded magnets with a split magnetic surface that are manufactured by casting. Their usage temperature is largely limited by the red lacquering. For higher temperatures, blank U-magnets are available on request.

To avoid negatively impacting the magnetic properties, the fastening screws should be made of a non-magnetic material such as stainless steel, brass or plastic.

For easier handling and to avoid demagnetization, a galvanized iron plate protects the magnetic surface of the magnet during storage and transport.

3On request

blank, temperature resistant up to 450 °C

Uitvoering

GN 62
GN 62 U-magneet, magneet, AlNiCo, hoefijzer, rood gelakt, met enkel of twee doorlopend gat
Sleep voor meer info
Toon alleen voorraad
Filters resetten 		Filter:

Code

Product omschrijving

Aantal

Prijs

Bestel

CAD
102102500 GN 62-AN-22
€ 14,05
102102510 GN 62-AN-30
€ 15,20
102102520 GN 62-AN-39
€ 28,21
102102530 GN 62-AN-45
€ 41,80
102102540 GN 62-AN-57
€ 76,98
102102550 GN 62-AN-70
€ 143,47
102102560 GN 62-AN-79
€ 265,23

b2

h2

Nom. adhesiekracht in N

Gewicht (g)

s

d

b1

h1

m
25 9 30 64 8 7 22 17 N.v.t.
20 11 45 69 15 5 30 20 N.v.t.
25 14 90 151 19 4.7 39 25 N.v.t.
30 17 120 167 22 5.2 45 30 N.v.t.
44.5 23 180 490 28 8 57 35 31.5
57 25 320 700 35 8 70 41 38
82 36 470 1570 38.5 9.5 79 54 43
