Omschrijving
Type
- Type B: Smooth contact face
Stainless Steel AISI 431
tempered
Ball
Stainless Steel AISI 420C
nickel plated

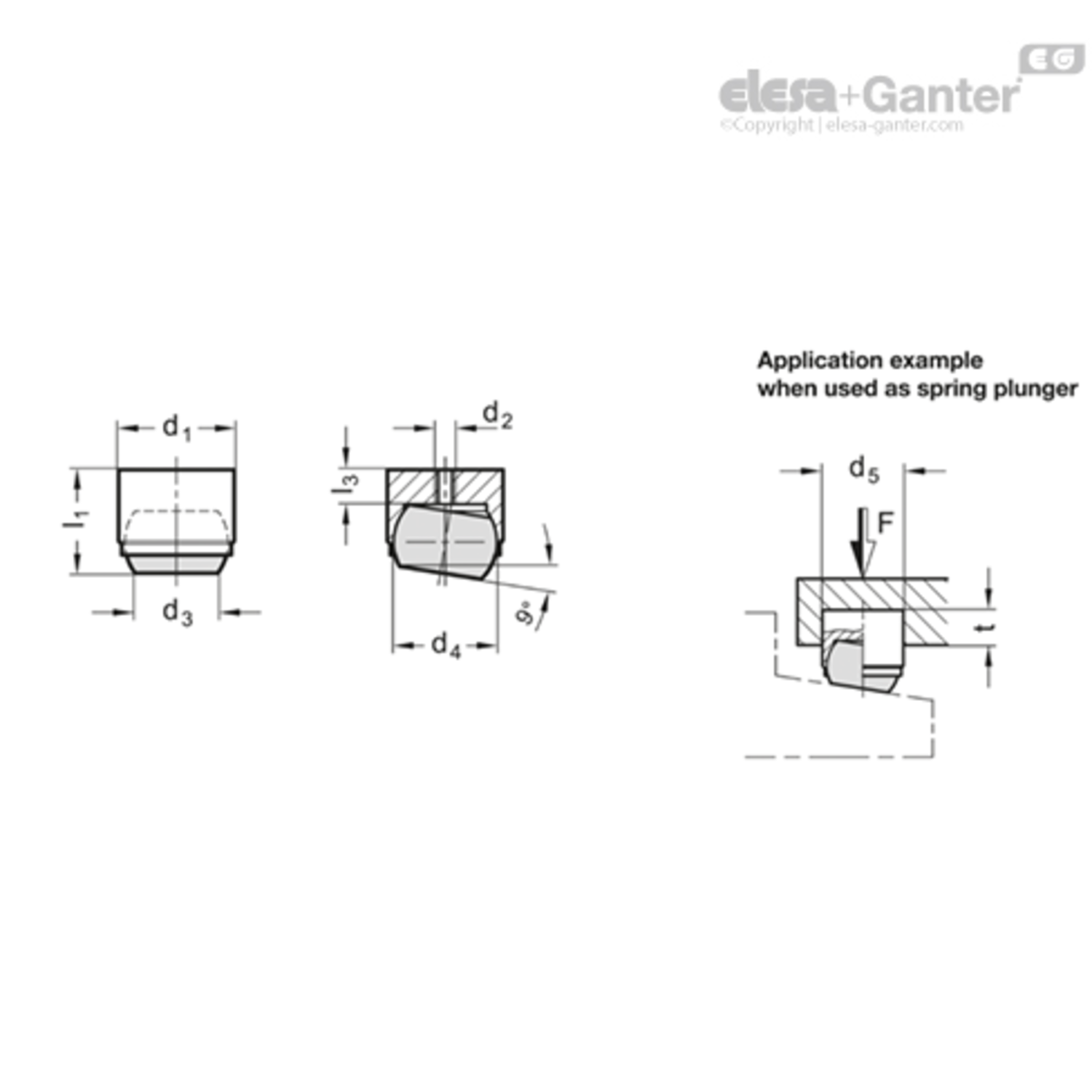

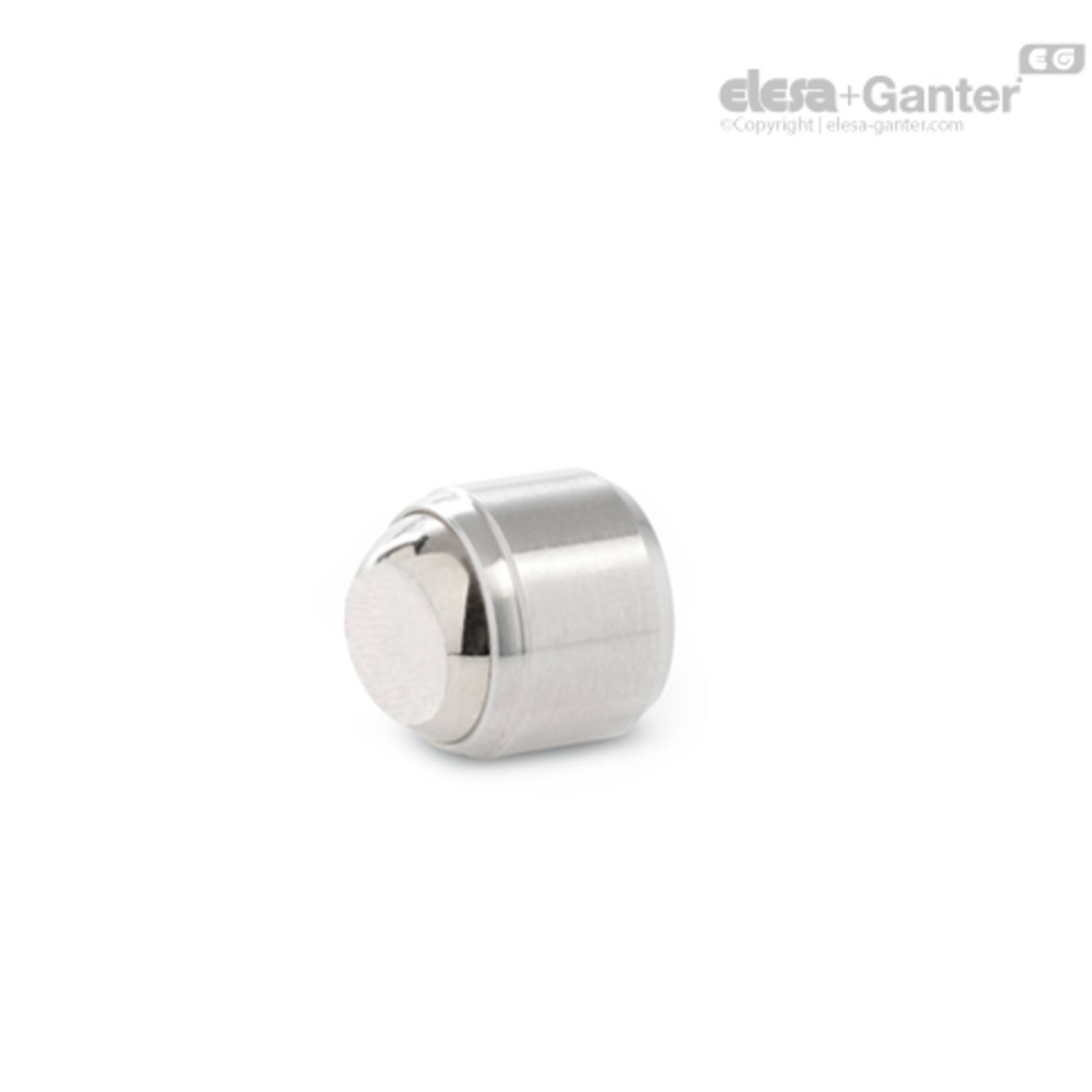

Clamping pads GN 709.25 are used as monile supports or as spring plungers for clamping workpieces. They can also be used as a back stop.
The ball is limited to an angular movement of 9° only.
- Serrated hard metal ball
| Filters resetten | Filter: | ||||
Code |
Product omschrijving |
Aantal |
Prijs |
Bestel |
CAD |
|---|---|---|---|---|---|
| 470027366 | GN 709.25-12-BR |
|
|||
| 470027367 | GN 709.25-18-BR |
|
|||
| 470027368 | GN 709.25-28-BR |
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
d4 |
d2 |
t min voor max stat.belast. |
l3 max |
Max stat.belast. in kN |
d5 H7 |
Gewicht (g) |
l1 ±0.02 |
d1 n6 |
d3 |
|---|---|---|---|---|---|---|---|---|---|
| 10 | M 3 | 12 | 3.2 | 10 | 12 | 16 | 17 | 12 | 7.2 |
| 16 | M 4 | 14 | 4 | 25 | 18 | 40 | 23 | 18 | 10.5 |
| 25 | M 5 | 22 | 6.0 | 90 | 28 | 150 | 34 | 28 | 20 |
