Omschrijving
Type
- Type B: Smooth contact face
Stainless Steel AISI 431
tempered
Ball
Stainless Steel AISI 420C
nickel plated
Hexagon nut
ISO 4035 (DIN 439)
Stainless Steel

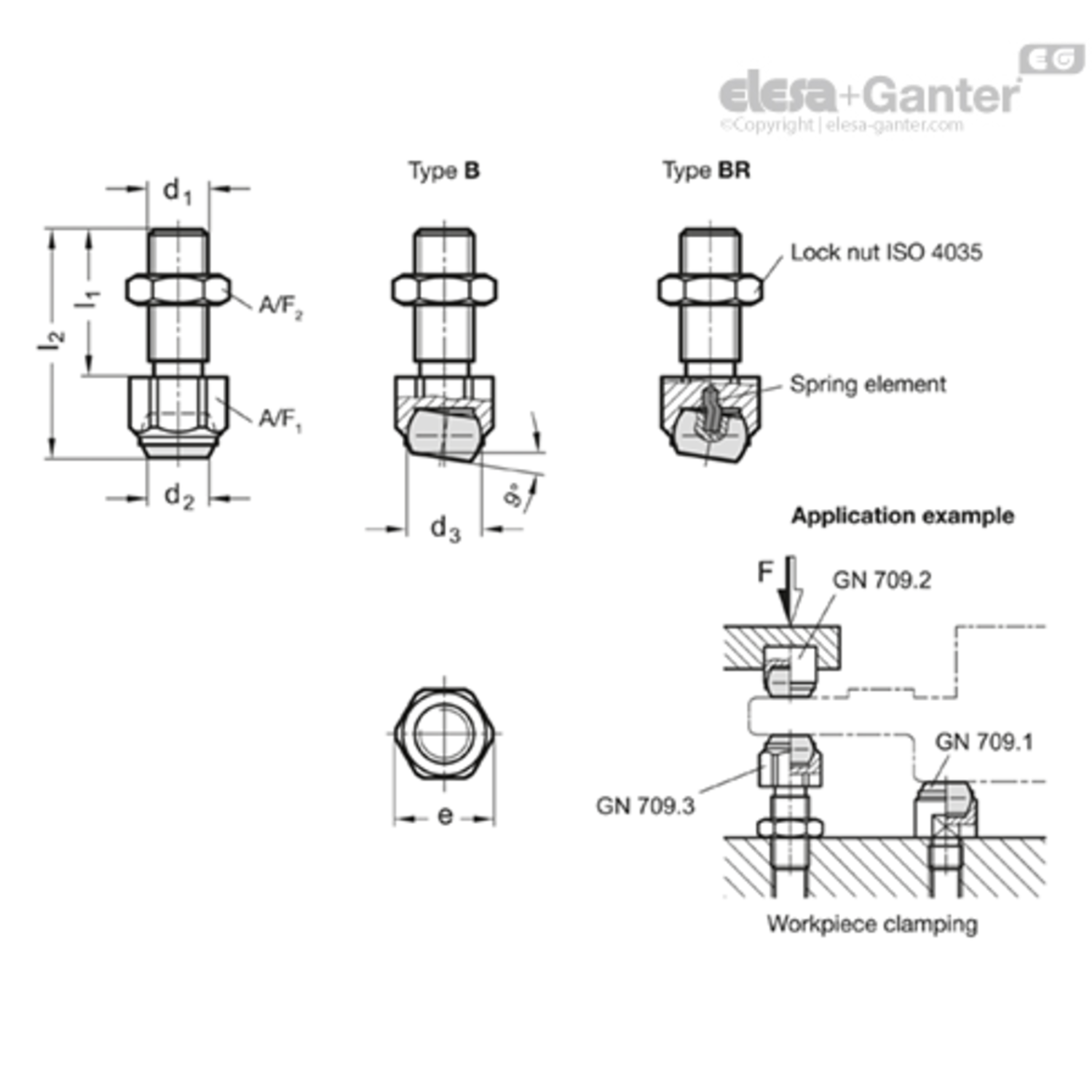

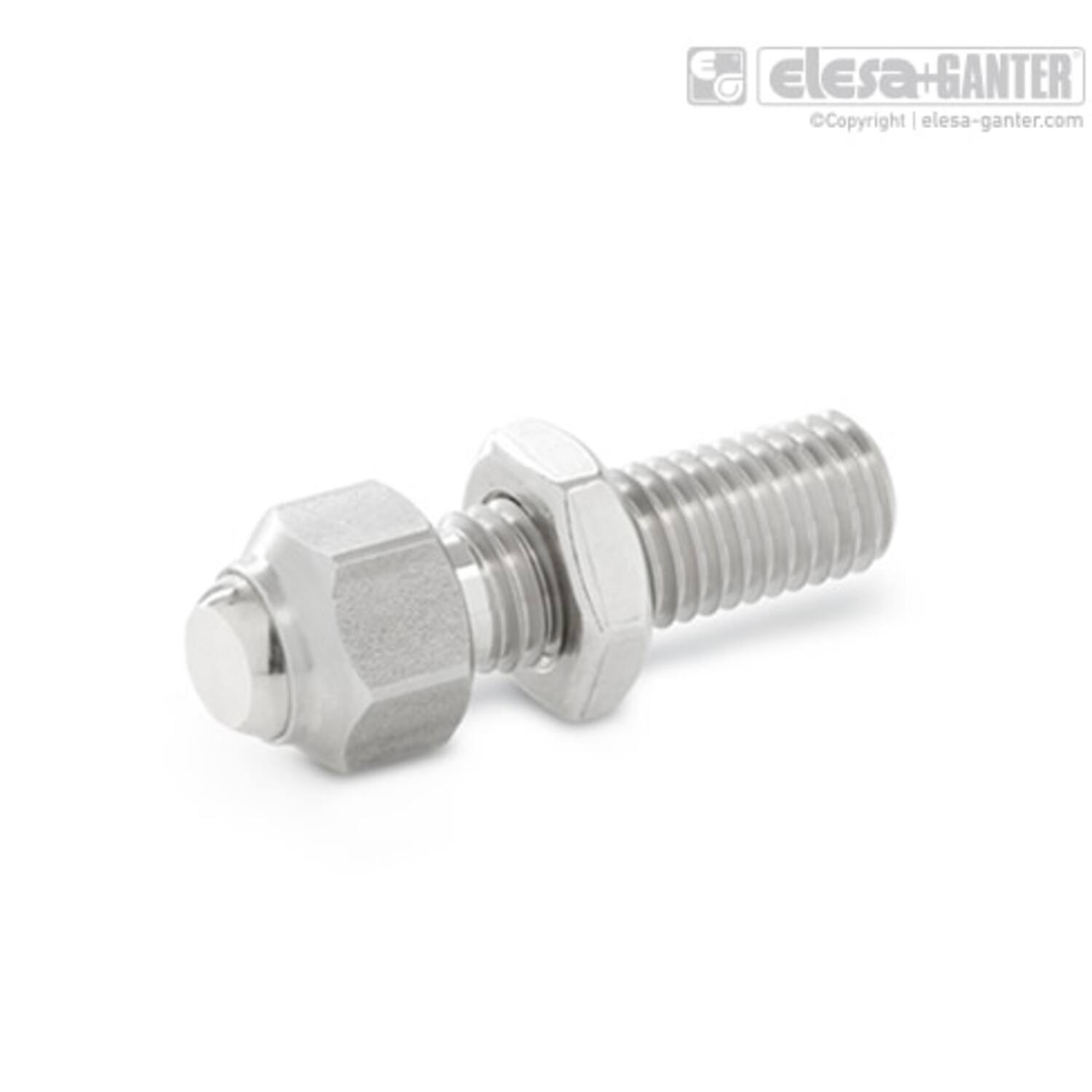

Clamping pads GN 709.35 are used as mobile supports or as spring plungers for clamping workpieces. They can also be used as a back stop.
The ball is limited to an angular movement of 9° only.
- Serrated hard metal ball
| Filters resetten | Filter: | ||||
Code |
Product omschrijving |
Aantal |
Prijs |
Bestel |
CAD |
|---|---|---|---|---|---|
| 470027385 | GN 709.35-13-M8-BR |
|
|||
| 470027386 | GN 709.35-17-M10-BR |
|
|||
| 470027387 | GN 709.35-17-M12-BR |
|
|||
| 470027388 | GN 709.35-24-M16-BR |
|
|||
| 470027389 | GN 709.35-30-M20-BR |
|
|||
| 470027391 | GN 709.35-36-M24-BR |
|
|||
| 109558316 | GN 709.35-46-M30x1,5-BR |
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
e |
d2 |
l1 |
AF 2 |
AF 1 |
Max stat.belast. in kN |
Gewicht (g) |
d1 |
d3 |
l2 |
|---|---|---|---|---|---|---|---|---|---|
| 14.5 | 5.8 | 25 | 13 | 13 | 8 | 20 | M 8 | 8.5 | 36.6 |
| 19 | 8.6 | 30 | 17 | 17 | 8 | 44 | M 10 | 12 | 45.7 |
| 19 | 8.6 | 35 | 19 | 17 | 15 | 57 | M12 | 12 | 50.7 |
| 27 | 10.5 | 40 | 24 | 24 | 25 | 128 | M 16 | 16 | 60.7 |
| 33 | 20 | 50 | 30 | 30 | 90 | 270 | M 20 | 25 | 77.3 |
| 40 | 20 | 70 | 36 | 36 | 90 | 464 | M 24 | 25 | 100 |
| 51 | 34.6 | 65 | 46 | 46 | 165 | 879 | M 30 x 1.5 | 40 | 100 |
