GN 722.4
Blokkeerbouten

Gezwart staal of RVS (1.4408 = AISI 316 = A4)

Omschrijving

1Specification

Types

  • Type A: Square, with pull ring, mounted
  • Type AU: Square, with pull ring, unmounted
  • Type R: Round, with pull ring, mounted
  • Type RU: Round, with pull ring, unmounted
  • Type C: Square, with pull ring, mounted (riveted)
  • Type CU: Square, with pull ring, unmounted
  • Type T: Round, with pull ring, mounted (riveted)
  • Type TU: Round, with pull ring, unmounted

Guide

  • Steel precision casting ST

Weldable

Blackened

  • Stainless steel precision casting AISI 316 A4

Weldable

Pull ring

  • Steel precision casting

Zinc plated, blue passivated (for ST)

  • Stainless steel precision casting AISI 316 (for A4)

Plunger pin

  • Steel, zinc plated, blue passivated (for ST)
  • Pressure spring

Stainless steel AISI 316 (for A4)

Grub Screw DIN 915 (without rest position)

Countersunk screw (with rest position)

  • Steel, zinc plated (for ST)
  • Stainless steel (for A4)

Pressure spring

Stainless steel AISI 316Ti

2Information

With indexing plungers GN 722.4, the plunger pin is actuated via the pull ring. This is done either manually, with a cable or by means of an extended pull rod with hook. The ST version is designed for applications in steel construction, whereas the stainless steel version A4 is suitable for use in particularly aggressive environments.

The types with a rest position are used when the plunger pin should temporarily not protrude. For this purpose, the pull ring is turned sideways after the locking pin has been retracted. The ring is held in this position by the catch groove at the top of the guide.

The dimensional tolerances between plunger pin and guide are selected so that the functional reliability is guaranteed even after welding, applying a corrosion protection layer or in case of contamination.

For fastening by welding, the unmounted types AU/CU are particularly recommended to avoid changes to the microstructure of the material due to heating of the spring and plunger pin. In this case, the indexing plunger is assembled only after the surface treatment of the welded guide.

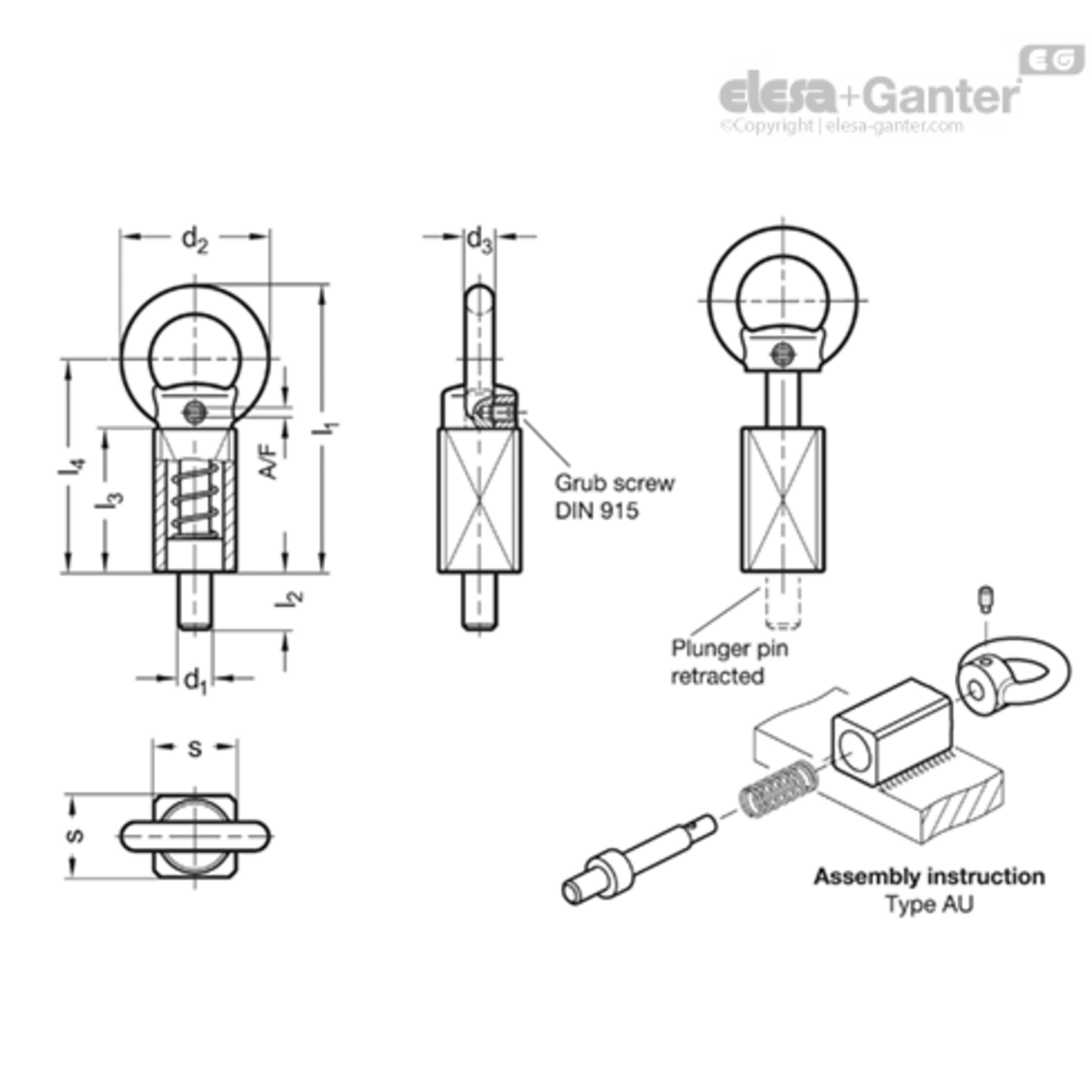

3Technical information
Sleep voor meer info

d4

d2

l3

Gewicht (g)

s

Veerdruk in N2

Veerdruk in N3

d1 Pin -0.05/-0.25 Boring +0.1/+0.3

l1 ≈

AF

d1 Pen -0.05/-0.25 Boring +0.2/+0.4

l4

d3

l2

7 N.v.t. 35 139 20 50 15 10 70 2 N.v.t. 52 36 14
7 N.v.t. 35 139 20 50 15 10 70 2 N.v.t. 52 36 14
7 20 35 117 N.v.t. n.v.t. n.v.t. N.v.t. n.v.t. 2 10 52 36 14
7 20 35 117 N.v.t. n.v.t. n.v.t. N.v.t. n.v.t. 2 10 52 36 14
7 N.v.t. 35 140 20 50 15 12 70 2 N.v.t. 52 36 14
7 N.v.t. 35 140 20 50 15 12 70 2 N.v.t. 52 36 14
7 20 35 121 N.v.t. n.v.t. n.v.t. N.v.t. n.v.t. 2 12 52 36 14
7 20 35 121 N.v.t. n.v.t. n.v.t. N.v.t. n.v.t. 2 12 52 36 14
7 N.v.t. 35 144 20 50 15 14 70 2 N.v.t. 52 36 14
7 N.v.t. 35 144 20 50 15 14 70 2 N.v.t. 52 36 14
7 20 35 125 N.v.t. n.v.t. n.v.t. N.v.t. n.v.t. 2 14 52 36 14
7 20 35 125 N.v.t. n.v.t. n.v.t. N.v.t. n.v.t. 2 14 52 36 14
10 N.v.t. 54 461 30 110 30 16 103 2.5 N.v.t. 78 50 20
10 N.v.t. 54 461 30 110 30 16 103 2.5 N.v.t. 78 50 20
10 30 54 400 N.v.t. n.v.t. n.v.t. N.v.t. n.v.t. 2.5 16 78 50 20
10 30 54 400 N.v.t. n.v.t. n.v.t. N.v.t. n.v.t. 2.5 16 78 50 20
10 N.v.t. 54 488 30 110 30 20 103 2.5 N.v.t. 78 50 20
10 N.v.t. 54 488 30 110 30 20 103 2.5 N.v.t. 78 50 20
10 30 54 418 N.v.t. n.v.t. n.v.t. N.v.t. n.v.t. 2.5 20 78 50 20
10 30 54 418 N.v.t. n.v.t. n.v.t. N.v.t. n.v.t. 2.5 20 78 50 20
7 N.v.t. 35 132 20 50 15 8 70 2 N.v.t. 52 36 14
7 N.v.t. 35 132 20 50 15 8 70 2 N.v.t. 52 36 14
7 20 35 114 N.v.t. n.v.t. n.v.t. N.v.t. n.v.t. 2 8 52 36 14
7 20 35 114 N.v.t. n.v.t. n.v.t. N.v.t. n.v.t. 2 8 52 36 14
