GN 810.1
Verticale snelspanner
GN 810.1
Verticale snelspanner
BC variant is met GN 708.1 aandrukbout
Omschrijving
Types
- Type B: U-bar version, with two flanged washers
- Type BC: U-bar version, with two flanged washers and GN 708.1 spindle assembly
- Type F: Solid bar version, with clasp
Version in Steel
- Case-hardened Steel C10, zinc plated, blue passivated
- Bearing pins tempered
- Bearing rivets (for size 230 and up), case-hardened
All moving parts
lubricated with special grease
Hand grip
High quality, oil resistant red plastic
Spindle assembly GN 708.1, Type A-
- Steel, zinc plated
- Rubber tip 85 Shore A
Version in Stainless Steel NI
Stainless Steel AISI 304
All moving parts
lubricated with special grease
Hand grip
High quality, oil resistant red plastic
Spindle assembly GN 708.1, Type A
- Stainless Steel AISI 304
- Rubber tip 85 Shore A

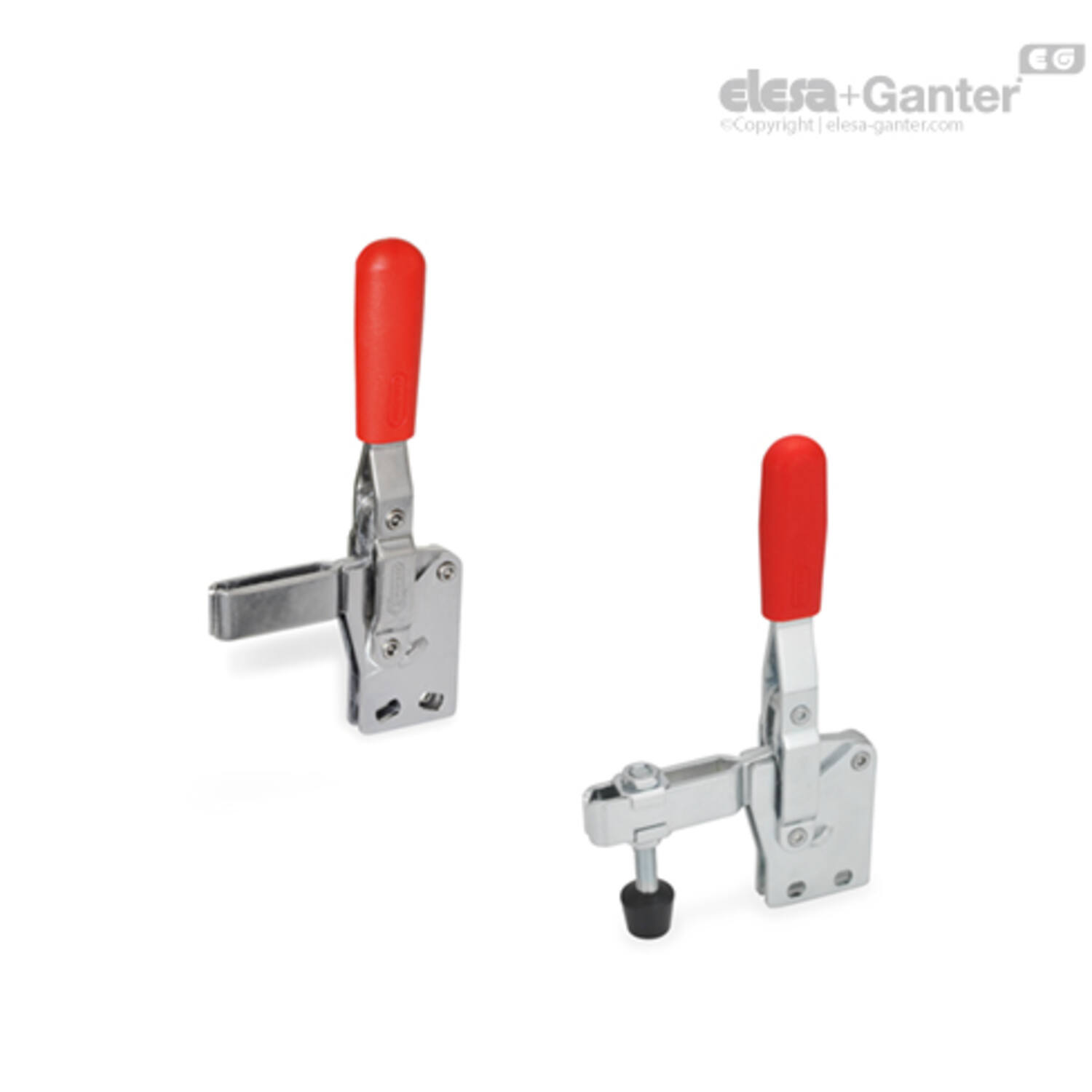

GN 810.1 vertical acting toggle clamps work according to the toggle principle: lever and clamping bar move in the same direction. In the clamped position the operating lever is in its vertical position.
Vertical acting toggle clamps in the U-bar version with two flanged washers (Type B) can accommodate an application specific clamping screw. A spindle assembly with neoprene rubber tip is also included for Type BC.
Type F version can either be utilized by welding the clasp which can then accommodate an application specific hold-down fastener component, or by utilizing the bar in conjunction with the GN 809- clamp mounts to hold the work piece in place.
- Spindle assemblies-
- GN 801 clamp mounts for toggle clamps (for Type B)
- GN 809 clamp mounts for toggle clamps (for Type F)
Scroll onderstaande tabel om meer te zien
Code |
Product omschrijving |
Aantal |
Prijs |
Bestel |
CAD |
b2 |
h2 |
a ≈ |
Mt. |
m4 |
l3 max |
Gewicht (g) |
r ≈ |
d2 ≈ |
s |
b1 |
d1 |
l1 ≈ |
l4 |
h3 |
h1 ≈ |
w |
h5 max |
b4 |
b3 |
m2 |
h4 |
FH in N |
m3 |
l2 ≈ |
m1 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Filter |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
109559270 | GN 810.1-130-B |
|
10 | 41.5 | 28 | 130 | 7.5 | N.v.t. | 228 | 79 | 5.5 | N.v.t. | 35 | M 6 | 85 | N.v.t. | 16 | 156 | N.v.t. | N.v.t. | 6.2 | 5 | 19 | N.v.t. | 1050 | 6.5 | 42 | 12.5 | |||
470001344 | GN 810.1-130-BC |
|
10 | 41.5 | 28 | 130 | 7.5 | N.v.t. | 200 | 79 | 5.5 | N.v.t. | 35 | M 6 | 85 | 55 | 16 | 156 | 17.5 | 25 | 6.2 | 5 | 19 | 25.5 | 1050 | 6.5 | 42 | 12.5 | |||
109559280 | GN 810.1-130-F |
|
10 | 41.5 | N.v.t. | 130 | 7.5 | 54 | 234 | 79 | 5.5 | 5 | 35 | M 6 | 86 | N.v.t. | 16 | 156 | N.v.t. | N.v.t. | N.v.t. | 5 | 19 | N.v.t. | 1050 | 6.5 | N.v.t. | 12.5 | |||
109559290 | GN 810.1-230-B |
|
12 | 48 | 40 | 230 | 6.5 | N.v.t. | 387 | 104 | 6.5 | N.v.t. | 43 | M 8 | 110.5 | N.v.t. | 18 | 183 | N.v.t. | N.v.t. | 8.5 | 6 | 20 | N.v.t. | 2000 | 6.5 | 58 | 19 | |||
470001345 | GN 810.1-230-BC |
|
12 | 48 | 40 | 230 | 6.5 | N.v.t. | 400 | 104 | 6.5 | N.v.t. | 43 | M 8 | 110.5 | 68 | 18 | 183 | 20 | 24 | 8.5 | 6 | 20 | 30 | 2000 | 6.5 | 58 | 19 | |||
101100821 | GN 810.1-230-F |
|
12 | 48 | N.v.t. | 230 | 6.5 | 73 | 400 | 104 | 6.5 | 6 | 43 | M 8 | 112 | N.v.t. | 18 | 183 | N.v.t. | N.v.t. | N.v.t. | 6 | 20 | N.v.t. | 2000 | 6.5 | N.v.t. | 19 | |||
101100832 | GN 810.1-330-B |
|
14 | 66 | 43 | 330 | 9.5 | N.v.t. | 550 | 122 | 8.5 | N.v.t. | 50 | M 10 | 129 | N.v.t. | 22 | 218 | N.v.t. | N.v.t. | 10.5 | 7 | 32.3 | N.v.t. | 2400 | 10 | 66 | 28.7 | |||
470001346 | GN 810.1-330-BC |
|
14 | 66 | 43 | 330 | 9.5 | N.v.t. | 600 | 122 | 8.5 | N.v.t. | 50 | M 10 | 129 | 77 | 22 | 218 | 19 | 39.5 | 10.5 | 7 | 32.3 | 37 | 2400 | 10 | 66 | 28.7 | |||
101100840 | GN 810.1-330-F |
|
14 | 66 | N.v.t. | 330 | 9.5 | 86 | 600 | 122 | 8.5 | 7 | 50 | M 10 | 130.5 | N.v.t. | 22 | 218 | N.v.t. | N.v.t. | N.v.t. | 7 | 32.3 | N.v.t. | 2400 | 10 | N.v.t. | 28.7 | |||
109559300 | GN 810.1-430-B |
|
18 | 77.5 | 64 | 430 | 10 | N.v.t. | 1140 | 156 | 8.5 | N.v.t. | 58 | M12 | 164 | N.v.t. | 26 | 268 | N.v.t. | N.v.t. | 12.5 | 10 | 32 | N.v.t. | 2800 | 10 | 88 | 32 | |||
470001347 | GN 810.1-430-BC |
|
18 | 77.5 | 64 | 430 | 10 | N.v.t. | 1100 | 156 | 8.5 | N.v.t. | 58 | M12 | 164 | 100 | 26 | 268 | 33 | 45 | 12.5 | 10 | 32 | 43 | 2800 | 10 | 88 | 32 | |||
101100860 | GN 810.1-430-F |
|
18 | 77.5 | N.v.t. | 430 | 10 | 114 | 1100 | 156 | 8.5 | 10 | 58 | M12 | 166 | N.v.t. | 26 | 268 | N.v.t. | N.v.t. | N.v.t. | 10 | 32 | N.v.t. | 2800 | 10 | N.v.t. | 32 | |||
109559305 | GN 810.1-530-B |
|
18 | 117.5 | 90 | 530 | 12.5 | N.v.t. | 1870 | 212 | 12.5 | N.v.t. | 77 | M12 | 223 | N.v.t. | 32 | 337 | N.v.t. | N.v.t. | 12.5 | 10 | 51 | N.v.t. | 4500 | 12.5 | 128 | 50 | |||
470001348 | GN 810.1-530-BC |
|
18 | 117.5 | 90 | 530 | 12.5 | N.v.t. | 1960 | 212 | 12.5 | N.v.t. | 77 | M12 | 223 | 100 | 32 | 337 | 27 | 85 | 12.5 | 10 | 51 | 49 | 4500 | 12.5 | 128 | 50 | |||
101100880 | GN 810.1-530-F |
|
18 | 117.5 | N.v.t. | 530 | 12.5 | 155 | 1900 | 212 | 12.5 | 10 | 77 | M12 | 225 | N.v.t. | 32 | 337 | N.v.t. | N.v.t. | N.v.t. | 10 | 51 | N.v.t. | 4500 | 12.5 | N.v.t. | 50 | |||
109559310 | GN 810.1-75-B |
|
8 | 32 | 20 | 75 | 5 | N.v.t. | 100 | 62.5 | 4.5 | N.v.t. | 29 | M 5 | 66.5 | N.v.t. | 11 | 109 | N.v.t. | N.v.t. | 5.2 | 4 | 16 | N.v.t. | 750 | 5 | 31.5 | 15 | |||
470001343 | GN 810.1-75-BC |
|
8 | 32 | 20 | 75 | 5 | N.v.t. | 109 | 62.5 | 4.5 | N.v.t. | 29 | M 5 | 66.5 | 45 | 11 | 109 | 15 | 17 | 5.2 | 4 | 16 | 19 | 750 | 5 | 31.5 | 15 | |||
109559320 | GN 810.1-75-F |
|
8 | 32 | N.v.t. | 75 | 5 | 41 | 102 | 62.5 | 4.5 | 4 | 29 | M 5 | 67 | N.v.t. | 11 | 109 | N.v.t. | N.v.t. | N.v.t. | 4 | 16 | N.v.t. | 750 | 5 | N.v.t. | 15 |
