Omschrijving
Types
- Type B: without rest position, with Plastic-Knob, without lock nut
- Type BK: without rest position, with Plastic-Knob, with lock nut
- Type BN: without rest position, with Stainless Steel-Knob, without lock nut
- Type BKN: without rest position, with Stainless Steel-Knob, with lock nut
- Type C: with rest position, with Plastic-Knob, without lock nut
- Type CK: with rest position, with Plastic-Knob, with lock nut
- Type CN: with rest position, with Stainless Steel-Knob, without lock nut
- Type CKN: with rest position, with Stainless Steel-Knob, with lock nut
Stainless Steel AISI 316 A4
Plunger pin chemically nickel plated
Knob
- Plastic (Type B / BK / C / CK)
- Polyamide (PA)
- black, matte
Stainless Steel (Type BN / BKN / CN / CKN)
AISI 316
not removable
Spring
Stainless Steel AISI 316 Ti

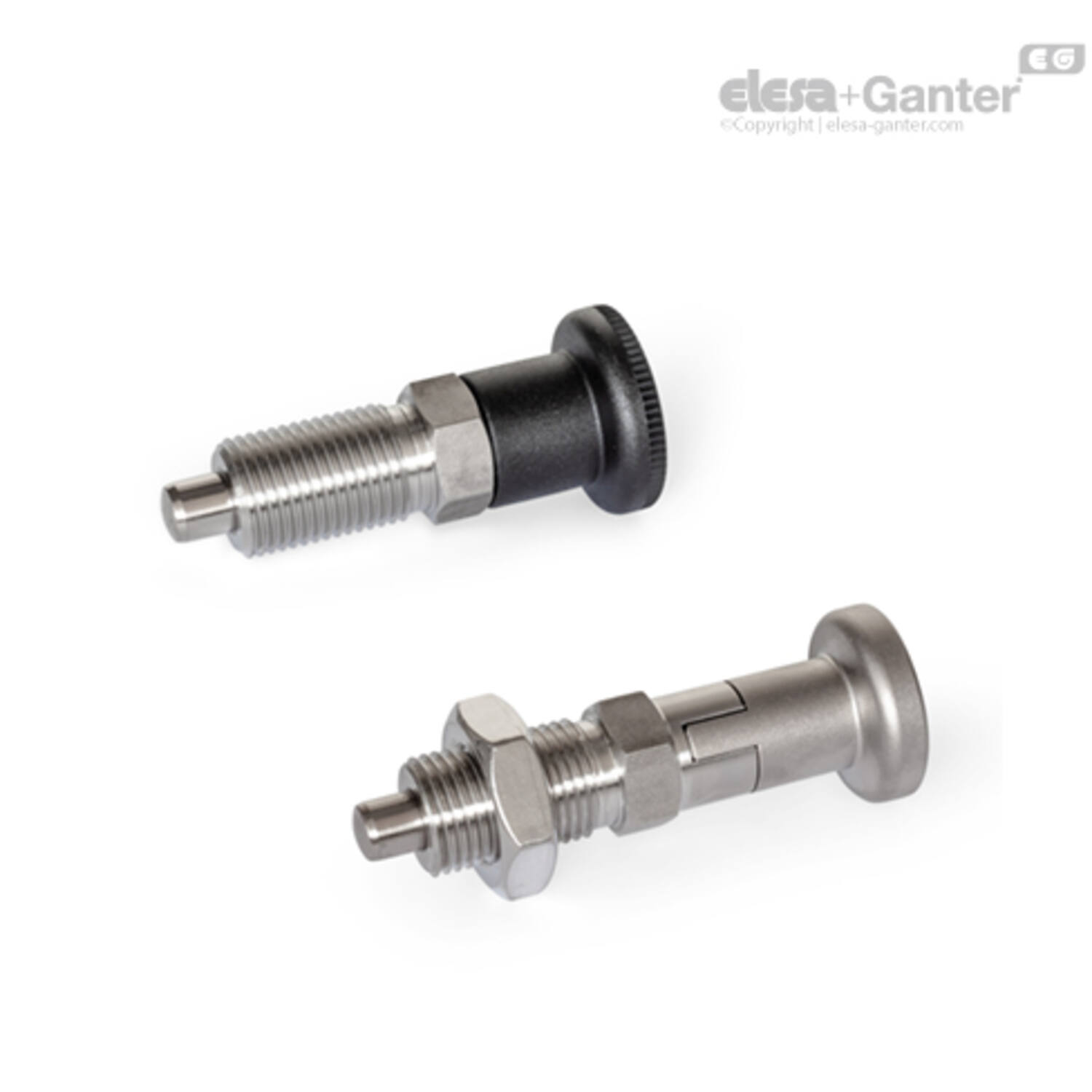

GN 818 Stainless Steel-Indexing plungers are set apart by the materials used, allowing these plungers to withstand particularly corrosive environments.
Indexing plungers with a rest position are used for such applications where the plunger has to stay in its retracted position. In that case, the knob is retracted and afterwards turned by 90°. A notch keeps the plunger in this position.
Uitvoering
| Filters resetten | Filter: | ||||
Code |
Product omschrijving |
Aantal |
Prijs |
Bestel |
CAD |
|---|---|---|---|---|---|
| 470040507 | GN 818-10-12-BK-A4 |
|
|||
| 470040513 | GN 818-12-15-BK-A4 |
|
|||
| 470040521 | GN 818-4-4-BK-A4 |
|
|||
| 470040529 | GN 818-4-6-BK-A4 |
|
|||
| 470040537 | GN 818-5-5-BK-A4 |
|
|||
| 470040545 | GN 818-5-8-BK-A4 |
|
|||
| 470040553 | GN 818-6-6-BK-A4 |
|
|||
| 470040561 | GN 818-6-9-BK-A4 |
|
|||
| 470040569 | GN 818-8-12-BK-A4 |
|
|||
| 470040577 | GN 818-8-8-BK-A4 |
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
d2 |
l1 |
k |
l3 |
Gewicht (g) |
Veerdruk in N2 |
Veerdruk in N3 |
AF |
l4 |
d3 |
d1 Pin -0.02/-0.05 Boring H7 |
l2 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M16x1.5 | 12 | 24 | 26 | 87 | 32 | 7.5 | 17 | 8 | 28 | 10 | 58 |
| M20x1.5 | 15 | 28.5 | 33 | 163 | 32 | 9 | 22 | 10 | 33 | 12 | 71.5 |
| M8x1 | 4 | 14 | 16 | 13 | 11 | 3.5 | 10 | 5 | 16 | 4 | 35 |
| M8x1 | 6 | 14 | 16 | 13 | 11 | 3 | 10 | 5 | 16 | 4 | 35 |
| M10x1 | 5 | 16 | 18 | 20 | 12 | 3 | 12 | 6 | 19 | 5 | 40 |
| M10x1 | 8 | 16 | 18 | 23 | 14 | 3 | 12 | 6 | 19 | 5 | 40 |
| M12x1.5 | 6 | 20 | 22 | 39 | 16 | 4.5 | 14 | 6 | 23 | 6 | 48 |
| M12x1.5 | 9 | 20 | 22 | 37 | 20 | 4 | 14 | 6 | 23 | 6 | 48 |
| M16x1.5 | 12 | 24 | 26 | 82 | 26 | 7 | 17 | 8 | 28 | 8 | 58 |
| M16x1.5 | 8 | 24 | 26 | 83 | 23 | 6 | 17 | 8 | 28 | 8 | 58 |
