GN 862

Pneumatische snelspanners

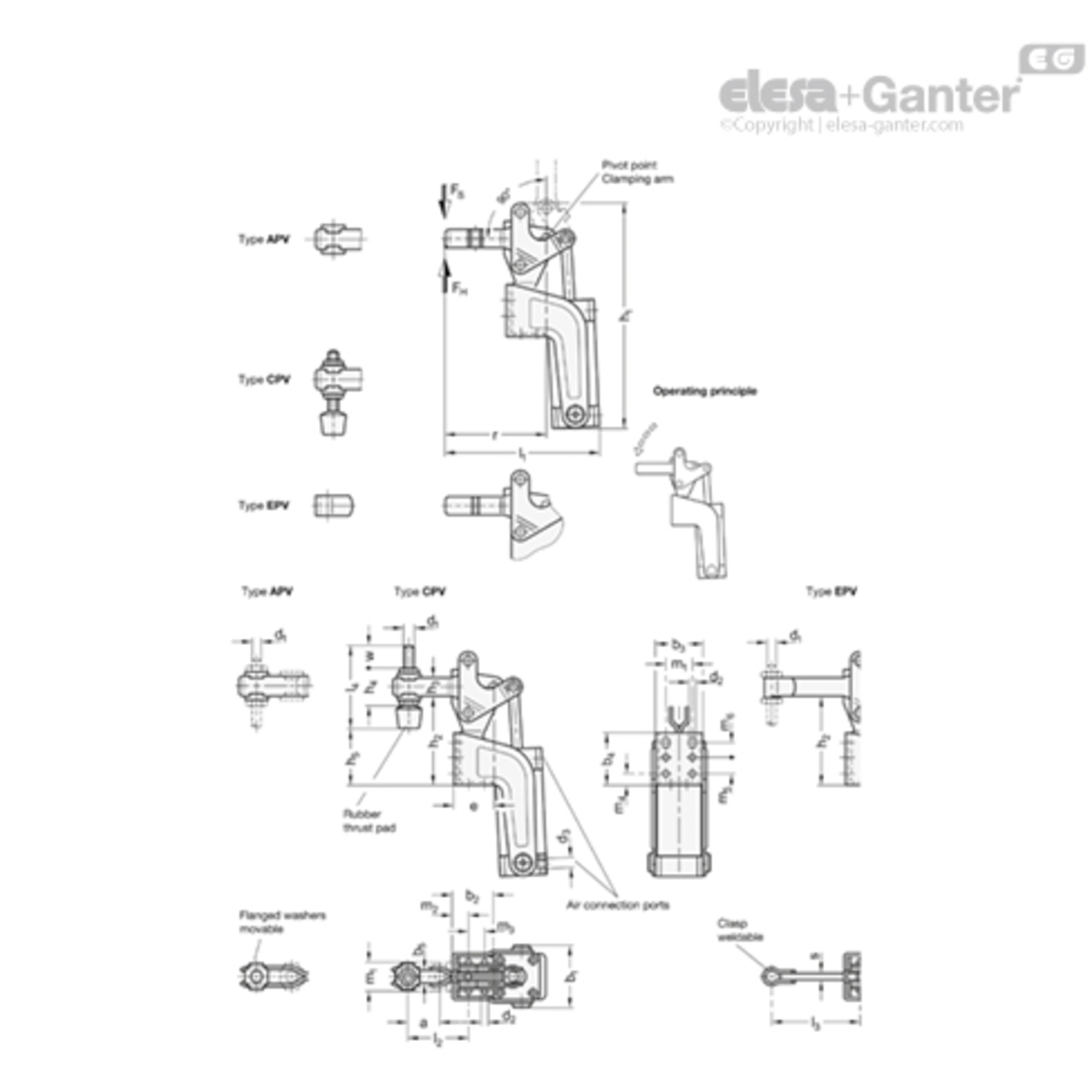

Types

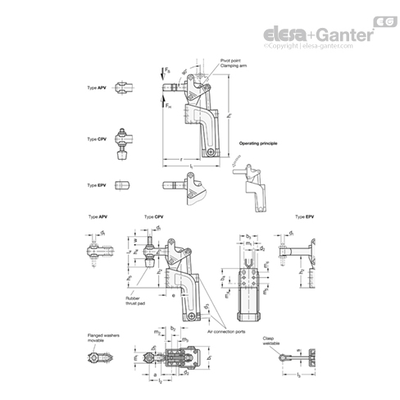

• Type APV3: U-bar version, with two flanged washers

• Type CPV3: U-bar version, with two flanged washers and GN 708.1 spindle assembly

• Type EPV3: Solid bar version, with clasp

Coding

• Coding M: Magnetic piston

Parts in sheet metal

Case-hardened Steel C10

zinc plated, blue passivated

Air cylinder bearing pins

case-hardened

Double-action air cylinder

max. pressure 6 bar

All moving parts

lubricated with special grease

• Steel, zinc plated

• Rubber tip 85 Shore A

The clamping principle of GN 862 pneumatic toggle clamps is identical in construction and dimensions to the manually operated GN 812 vertical toggle clamps-.

To ensure an extended life of the mechanical parts as well as the air cylinders the operating pressure should not exceed 6 bar.

GN 862 pneumatic toggle clamps are also available in sizes 200 and up as a version M (magnetic piston). In conjunction with a GN 896.2- proximity switch, the piston position can be sensed and the generated impulse can be used to transmit an electrical signal.
