Omschrijving
Types
- Type E: for one clamping bolt
- Type Z: for two clamping bolts
Steel C45
blackened

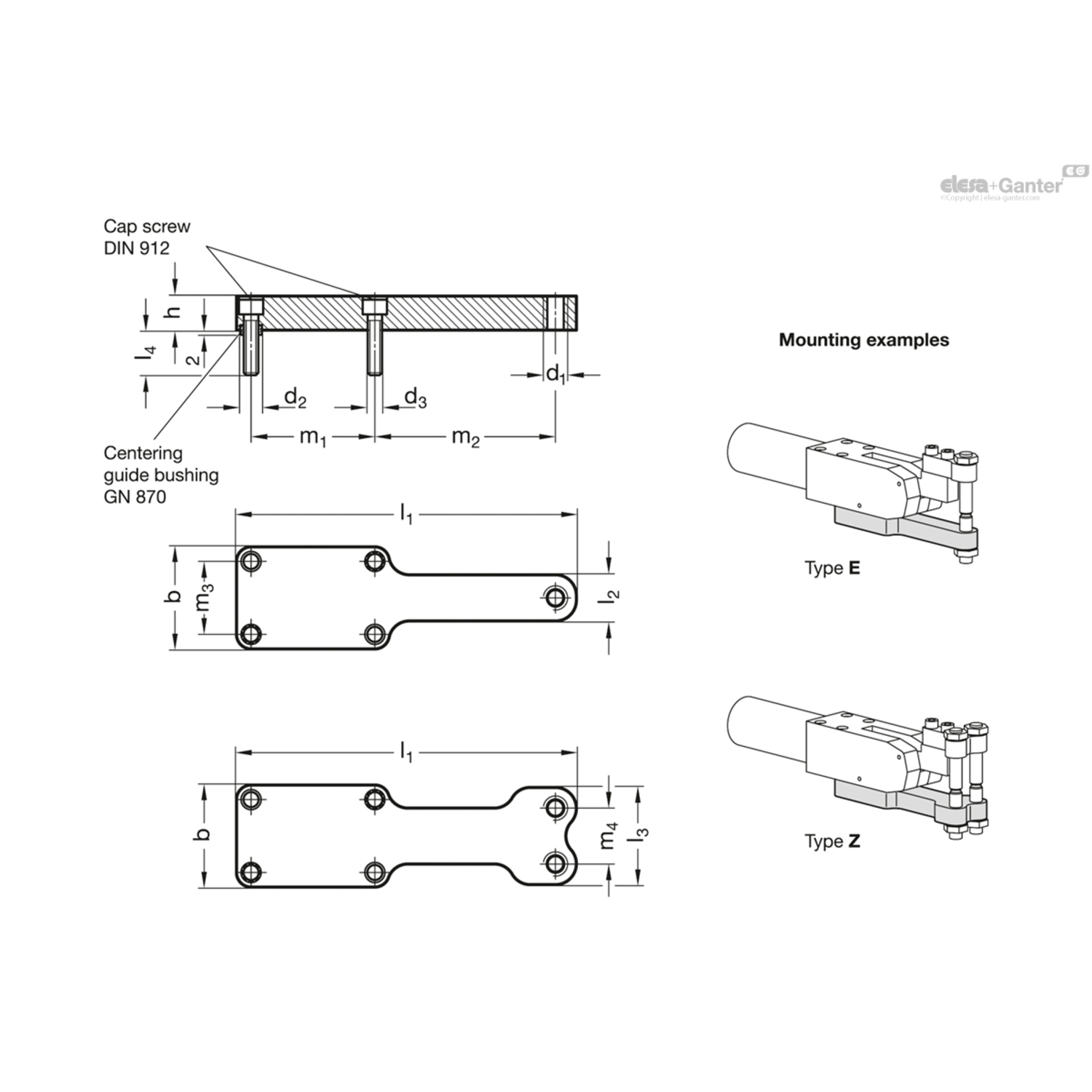

GN 869.1 single post bracket / Y-bracket accessories have been designed for use with GN 865 pneumatic fastening clamps.
Y-bracket accessories for two clamping bolts (Type Z) are preferably used in such applications where absolutely rigid clamping of a sheet metal component is essential. For the same purpose GN 605 ball point screws with serrated ball pads are ideally suited.
Cap screws and centering guide bushing accessories are included.
| Filters resetten | Filter: | ||||
Code |
Product omschrijving |
Aantal |
Prijs |
Bestel |
CAD |
|---|---|---|---|---|---|
Helaas zijn er momenteel geen producten op voorraad
