GN 965

Montageset voor profielsystemen 30 / 40

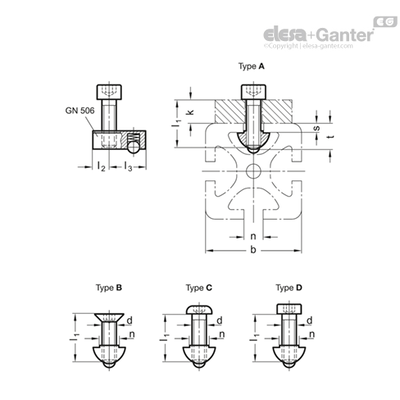

Types

• Type A: with cylinder head screw DIN 912

• Type B: with countersunk screw DIN 7991

• Type C: with lens screw ISO 7380

• Type D: with cylinder head screw DIN 7984

T-Nuts GN 506

Steel

• zinc plated, blue passivated

• Ball / Spring Stainless Steel

Cylinder head screws DIN 912

Countersunk screws DIN 7991

Lens screws ISO 7380

Cylinder head screws DIN 7984

Steel zinc plated, blue passivated

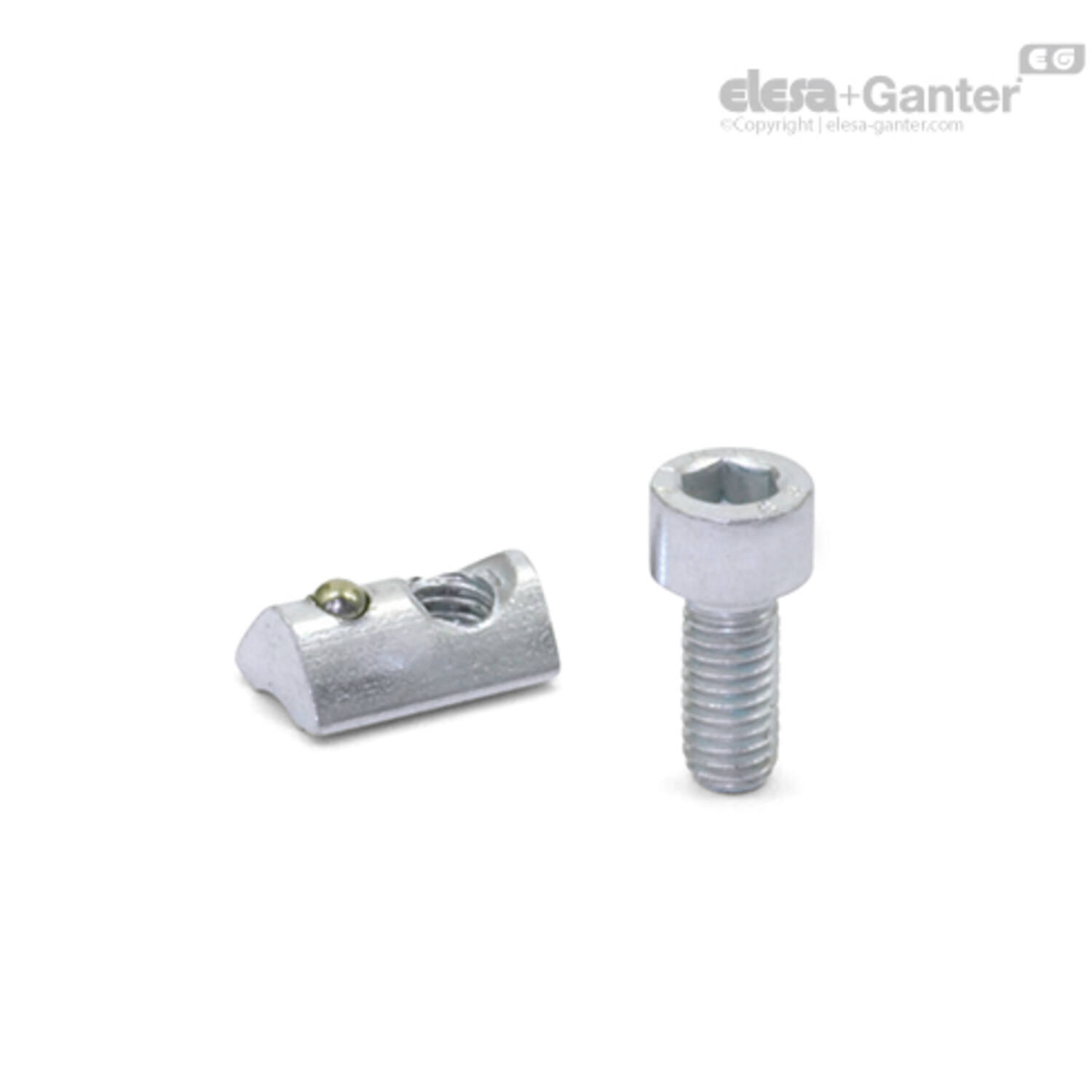

Assembly sets GN 965 allow different standard element to be attached to the most common profile systems. Each set includes one T-nut GN 506  and one screw.

• Explanation

• Overview to appropriate standards of the assembly sets GN 965
