GN 968 Montageset voor profielsystemen 30 / 40 / 45
GN 968 1

GN 968
Montageset voor profielsystemen 30 / 40 / 45

Opmerking: Alleen nog als special aan te vragen

Bekijk volledig
__logo__profile__ __logo__RoHS__

Omschrijving

1Specification

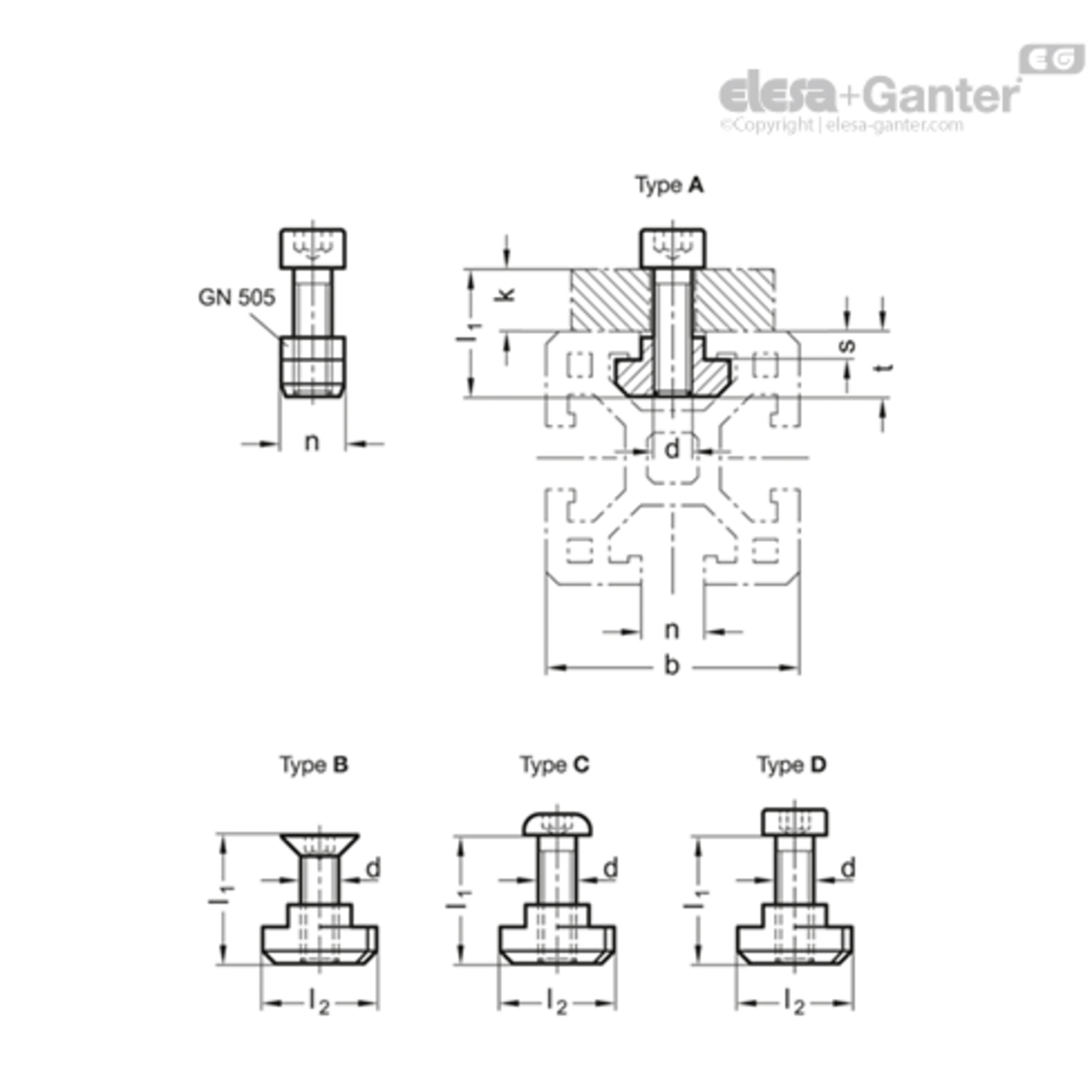

Types

  • Type A: with cylinder head screw DIN 912
  • Type B: with countersunk screw DIN 7991
  • Type C: with lens screw ISO 7380
  • Type D: with cylinder head screw DIN 7984

T-Nuts GN 505

Steel

with increased torque (Type MB)

zinc plated, blue passivated

Cylinder head screws DIN 912

Countersunk screws DIN 7991

Lens screws ISO 7380

Cylinder head screws DIN 7984

Steel

zinc plated, blue passivated

2Information

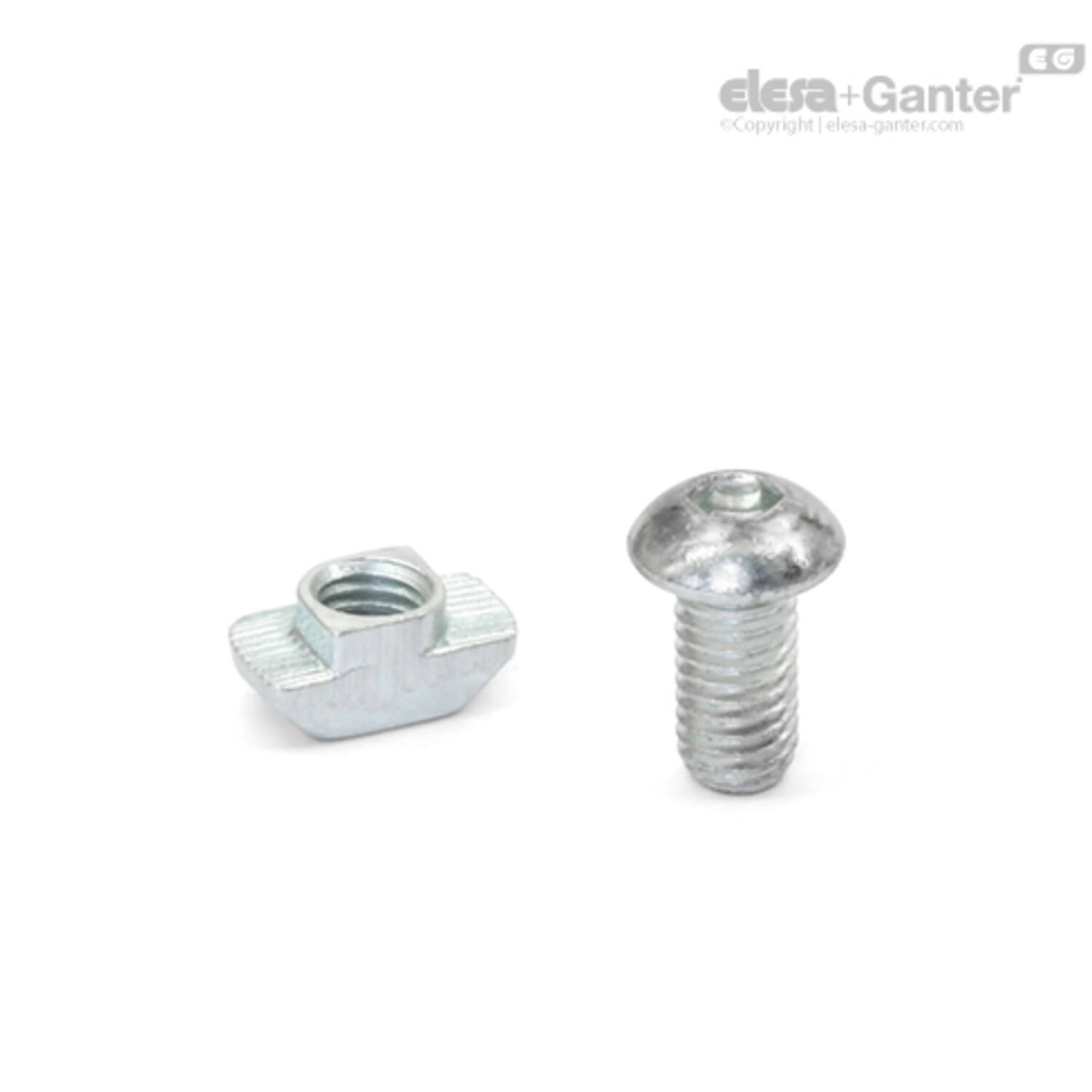

Assembly sets GN 968 allow different standard element to be attached to the most common profile systems. Each set includes one T-nut GN 505 and one screw.
