Omschrijving
Material

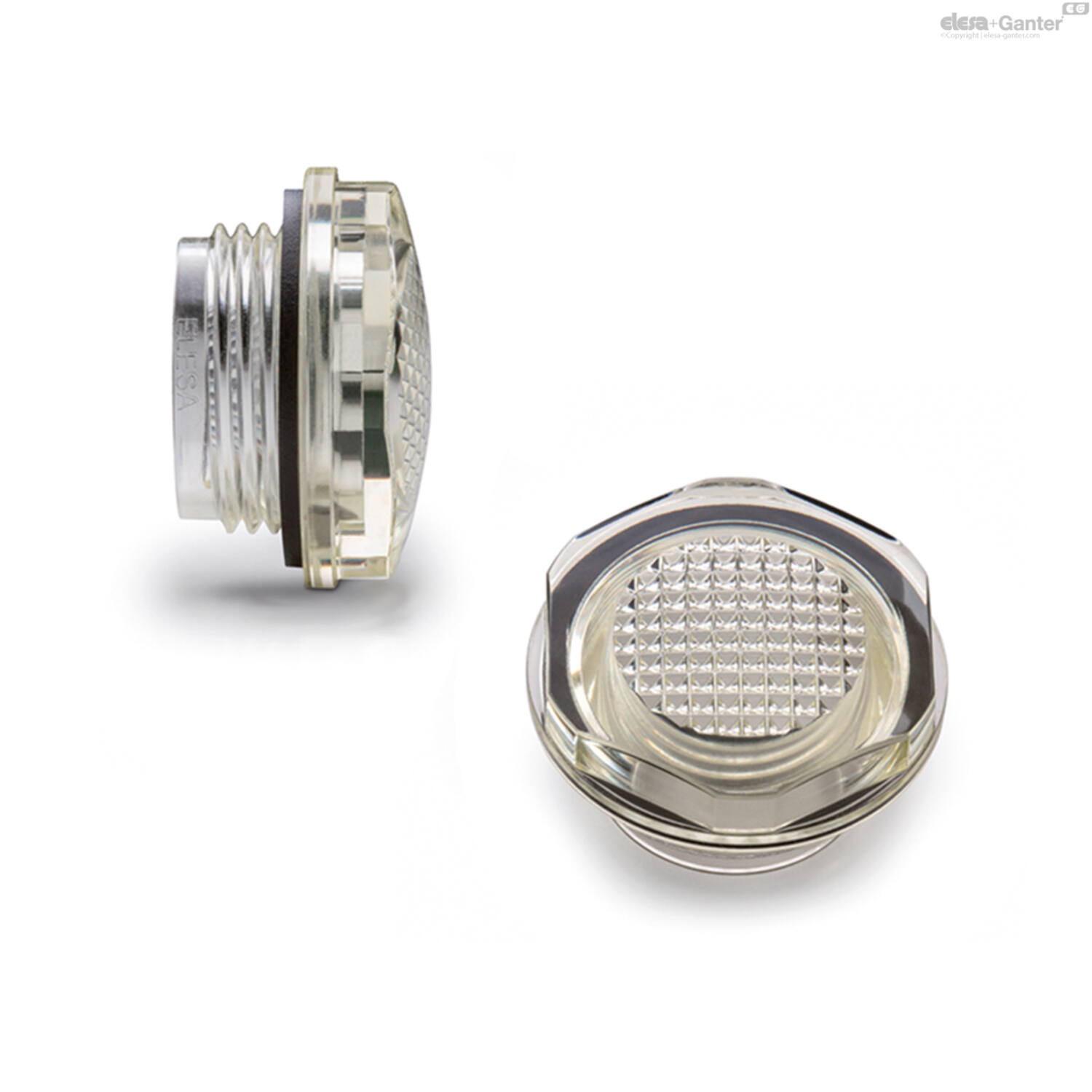

Transparent polyamide based (PA-T) technopolymer. Avoid contact with alcohol or detergents containing alcohol.The window consists of a continuous series of prisms which provide a clear and immediate reading of the level of the oil contained in the reservoir.
Packing ring
NBR synthetic rubber
The positioning of the packing ring in its housing guarantees a high tightening torque.
Maximum continuous working temperature
100°C.
Note
For use with other fluids with special additives, please contact ELESA Sales Department.
Accessories on request
Brass nut GH. for fitting to reservoirs with wall thickness smaller than 5 mm.
Uitvoering
| Filters resetten | Filter: | ||||
Code |
Product omschrijving |
Aantal |
Prijs |
Bestel |
CAD |
|---|---|---|---|---|---|
| 201000605 | HFTR.15/PR-1/2 |
|
|||
| 460119565 | HFTR.20/PR-3/4 |
|
|||
| 460119501 | HFTR.24/PR-1 |
|
|||
| 460119511 | HFTR.30/PR-1.1/4 |
|
|||
|
|
|
|
|
|
|
|
|
|

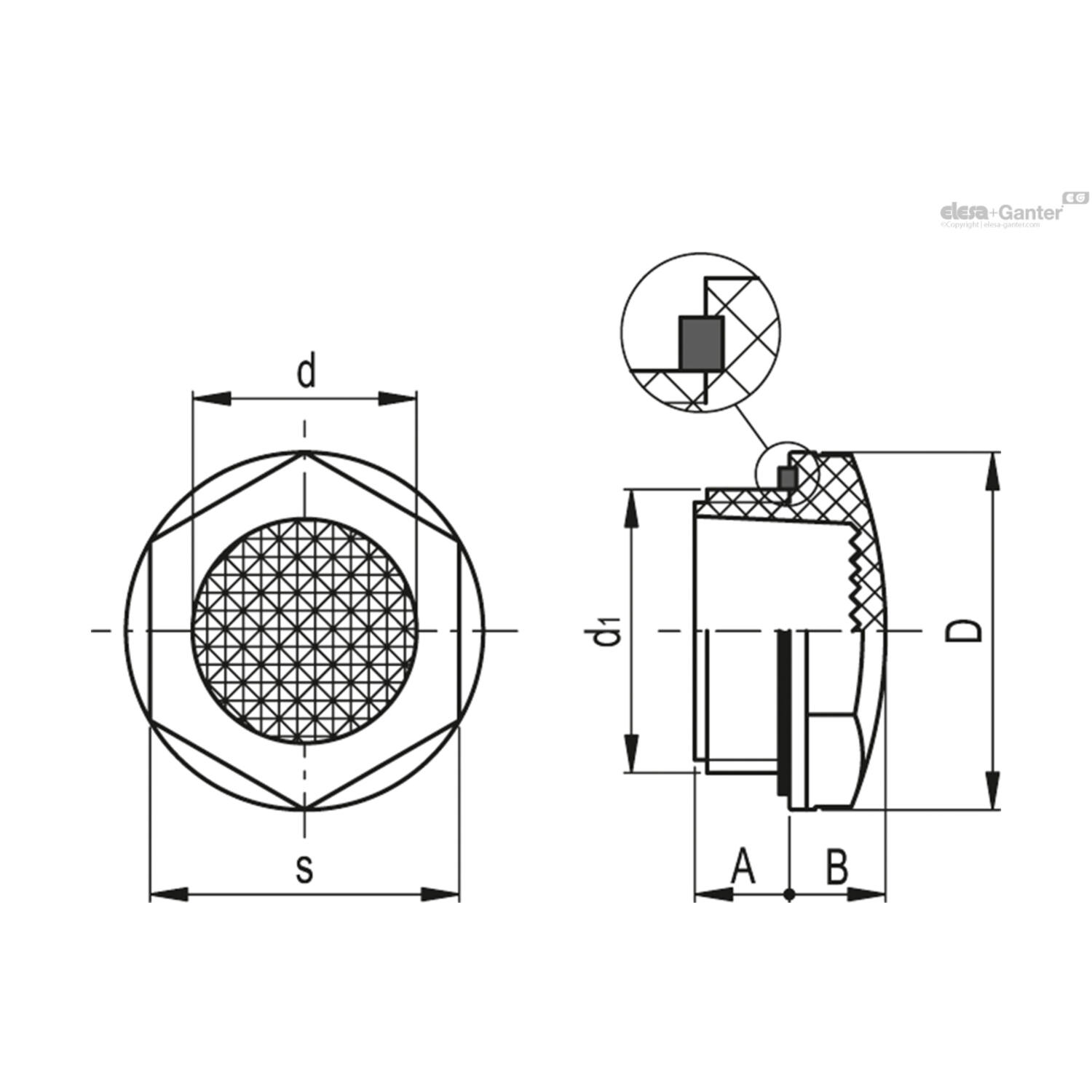

Gewicht (g) |
D |
s |
d |
a |
d1 |
aanhaalmoment eenheid |
B |
|---|---|---|---|---|---|---|---|
| 6 | 28 | 24 | 15 | 10.5 | G 1/2 | 8÷10 | 9 |
| 9 | 35 | 32 | 20 | 10.5 | G 3/4 | 10÷12 | 10.5 |
| 13 | 42.5 | 38 | 24 | 11 | G 1 | 10÷12 | 13.5 |
| 21 | 52 | 41 | 30.5 | 19 | G1 1/4 | 12÷14 | 16 |
