MPG
Geleiderail klemmen

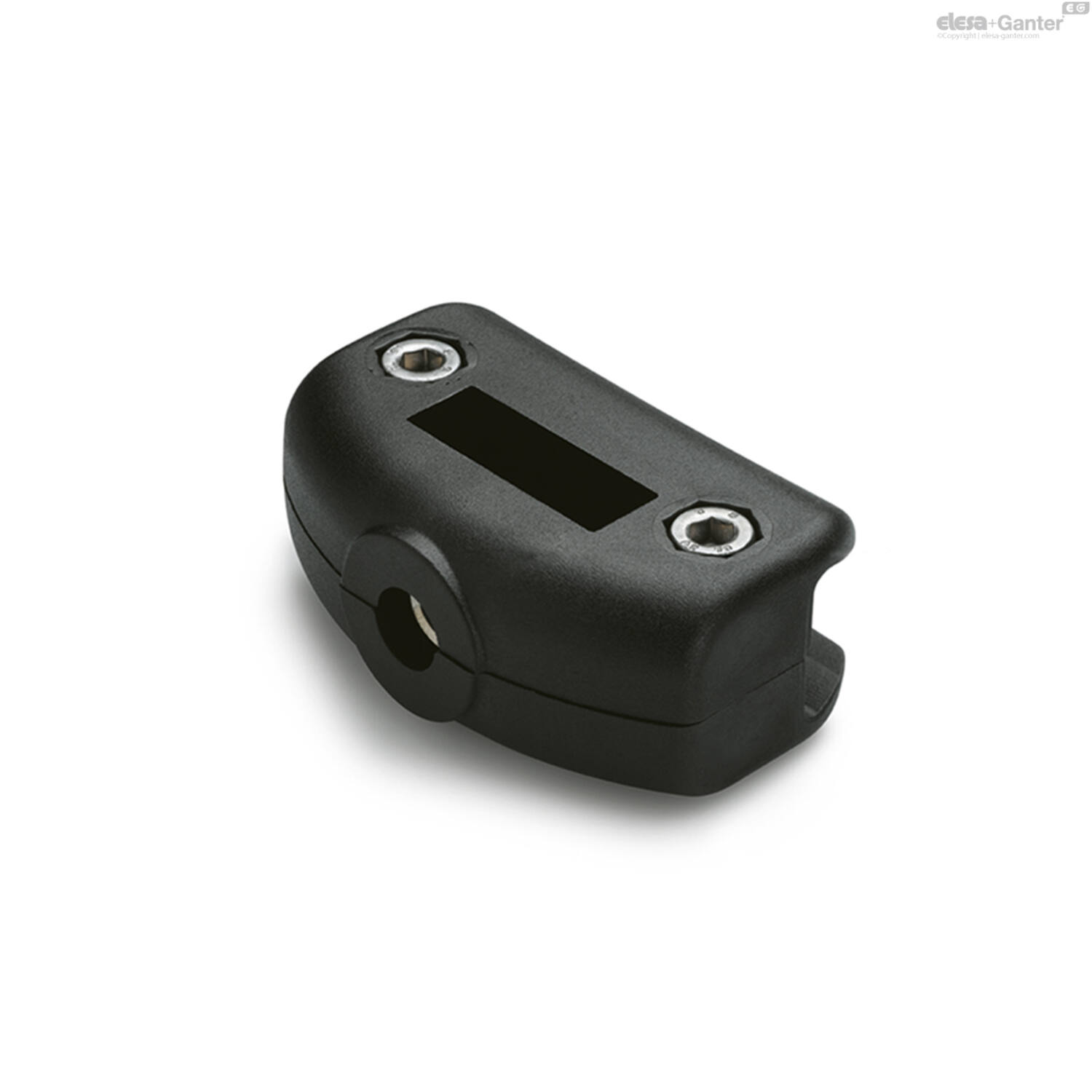

MPG-C: for round guide.
MPG-T: for both the standard trapezoidal guides.
MPG-R: for rectangular guide.

Omschrijving

1Main specifications

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

AISI 304 stainless steel cylindrical head screws with hexagon socket, nickel-plated brass nuts.

2Assembly instructions

Mount the guide rail clamp on the support bar (dimension 25x8 mm), the assembly consists in inserting the bar into the specific clamp slot (Fig.1).
Insert the guide into the clamp housing and then clamp the screws (Fig.2).
Set the height of the clamp and clamp by means of a M8 screw, not supplied (Fig.3).

Sleep voor meer info

Code	Product omschrijving	Aantal	CAD
Toon alleen voorraad Filters resetten			Filter:
201500101	MPG-C-10	€ 3,49
201500102	MPG-C-12	€ 3,49
201500103	MPG-C-14	€ 3,49
201500100	MPG-C-8	€ 3,49

Gewicht (g)	d	l	H

45	10	15	36
46	12	15	36
47	14	15	36
44	8	16	36
