Omschrijving
Material
Special glass-fibre reinforced polyamide based (PA) SUPER-technopolymer, black colour, matte finish.
Standard executions
Central plain pass-through hole and two holes for pins.
- RDB-F: front mounting by means of two holes for cylindrical-head screws.
- RDB-CF: with built-in case, front mounting by means of two holes for cylindrical-head screws.
- RDB-B: rear mounting by means of two pass-through holes and two stainless steel hexagonal nuts (included in the supply).
- RDB-CB: with built-in case, rear mounting by means of two pass-through holes and two stainless steel hexagonal nuts (included in the supply).
Features and applications
The toothed clamping elements RDB-F and RDB-B, coupled between them or with the executions RDB-CF or RDB-CB, allow to lock the position of two components rotating around an axis.
The locking angle is adjustable with a pitch of 6 °.
Accessories on request
AISI 301 stainless steel push springs facilitating the detachment of the toothed clamping elements.
Uitvoering
| Filters resetten | Filter: | ||||
Code |
Product omschrijving |
Aantal |
Prijs |
Bestel |
CAD |
|---|---|---|---|---|---|
| 201583880 | RDB.32-60-CB |
|
|||
| 201583900 | RDB.40-60-CB |
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

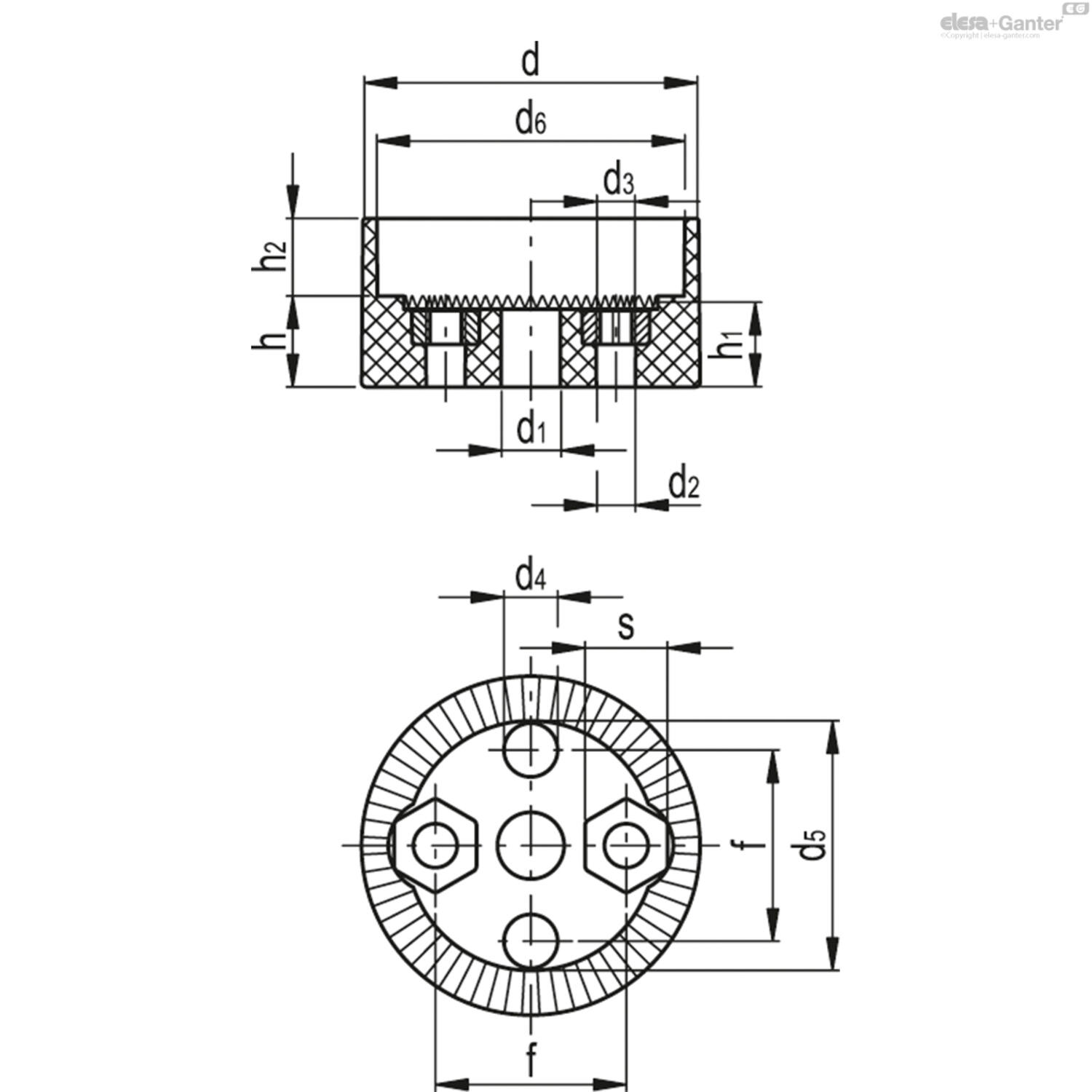

h2 |
d4 |
h |
d2 |
f |
Gewicht (g) |
d6 |
s |
d |
d1 |
h1 |
h3 |
w min. |
d3 |
d5 |
C#[Nm] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8.2 | 5 | 9.5 | 4 | 18 | 16 | 32.5 | 7 | 35.5 | 6.3 | 9 | 18 | 1.2 | M4 | 23.5 | 80 |
| 10.5 | 6 | 12 | 5 | 23 | 28 | 40 | 8 | 43.5 | 8.3 | 11.4 | 22.8 | 1.3 | M5 | 30 | 140 |
