RE.C6

Zwenkwielen - algemeen gebruik

Omschrijving

1Main specifications

Covering

Injected polyurethan, hardness 55 Shore D.

Wheel centre body

Polyamide-based technopolymer (PA).

Rolling action

Hub with pass-through hole.

Fixed plate bracket

Electrolytically zinc-plated steel sheet bracket.

Turning plate bracket

Electrolytically zinc-plated steel sheet bracket.

The presence of a double ball race and the direct contact between the plate and the ball race ring with built-in pin ensure excellent manoeuvrability.

Front-actuated brake

Total brake that locks the wheel and bracket rotation. The optimised dimensions and the retractable pedal ensure minimal space occupied and maximum actuation ease.

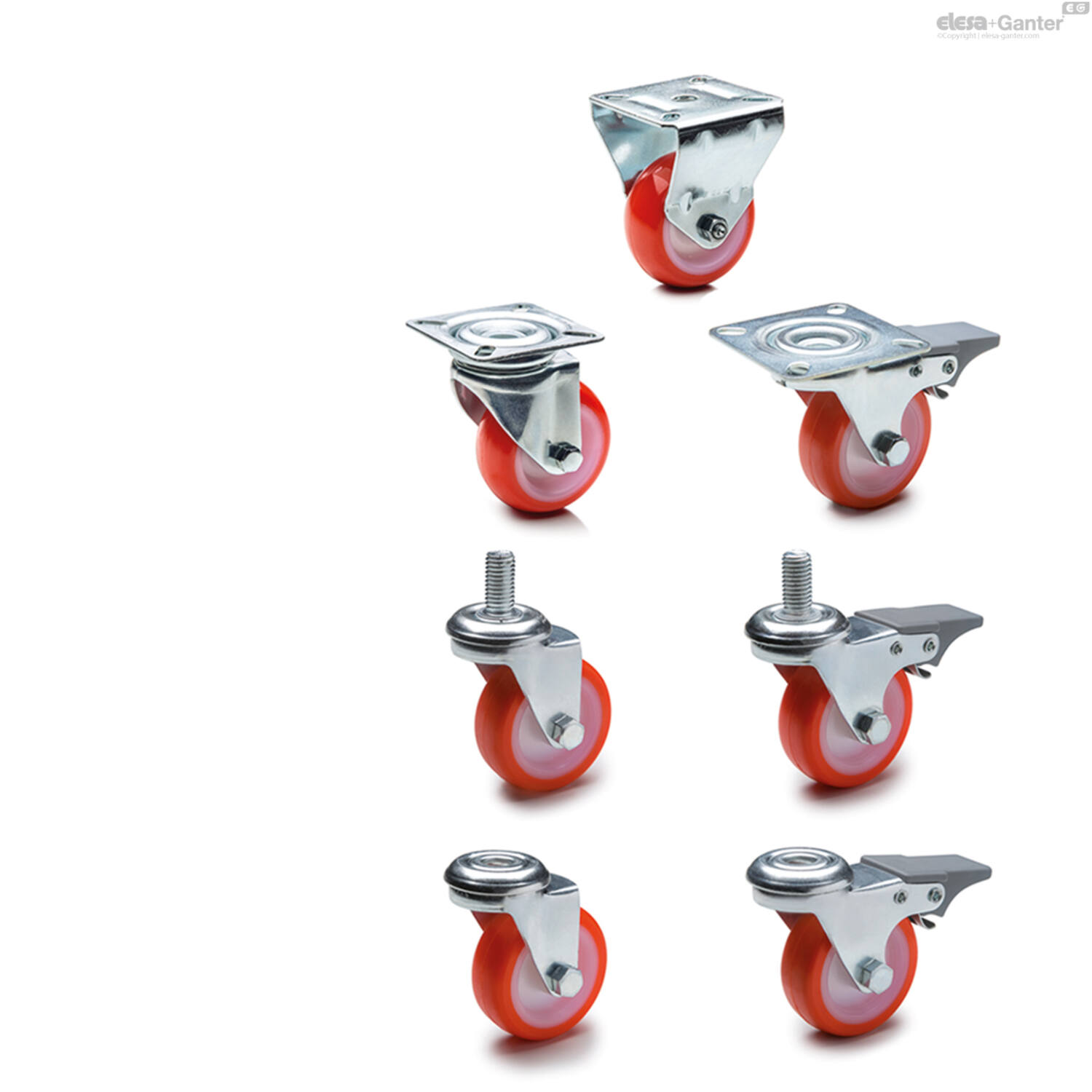

Standard executions

  • PBL: fixed plate bracket, without brake.
  • SBL: turning plate bracket, without brake.
  • SBF: turning plate bracket, with brake.
  • CBL: turning plate bracket and threaded centre pin, without brake.
  • CBF: turning plate bracket and threaded centre pin, with brake.
  • FBL: turning plate bracket and centre pass-through hole, without brake.
  • FBF: turning plate bracket and centre pass-through hole, with brake.
2General information

Applications

Wheels for the general public, excellent smoothness and elasticity features, high wear and tearing resistance.

Environmental conditions

Suitable for use in industrial and institutional environments, even in the presence of moisture and chemical agents.

The good resistance to frequent cleaning cycles makes it suitable for environments where it is necessary to ensure hygiene.

Scroll onderstaande tabel om meer te zien

Code

Product omschrijving

Aantal

Prijs

Bestel

CAD

l3

Gewicht (g)

D

d

l4

dyn. draagkracht cap.unit

Filter
470072345 RE.C6-040-RBL
€ 2,20
18 20 40 8 21 400
470072346 RE.C6-050-RBL
€ 2,54
18 20 50 8 22 550
470072347 RE.C6-060-RBL
€ 4,42
25 60 60 8 28 700
