RE.F7-N-HT

Wielen van monolithisch Duroplast

Wheel centre body

Phenolic based (PF) Duroplast monolithic wheel, resistant to temperatures up to 300°C.

Rolling action

Hub with steel or stainless steel tube (SST executions) and PTFE bosses.

Turning plate bracket

Zinc-plated steel or AISI 304 stainless steel (SST version) sheet, the bracket is designed to withstand loads up to 2000N. The presence of a double ball race turns and the direct contact between the plate and the ball race ring with built-in pin ensure excellent manoeuvrability. Does not require maintenance. It consists of (see Fig.1):

1. fitting plate: electrolytically zinc-plated steel or AISI 304 stainless steel sheet;
2. fork: electrolytically zinc-plated steel or AISI 304 stainless steel sheet;
3. ball race ring: electrolytically zinc-plated steel or AISI 304 stainless steel sheet;
4. central pin: incorporated in the plate, cold reflanged;
5. rotation system: dual ball ring, high temperature grease-lubricated;
6. dust seal: RAL 7015 dark grey technopolymer.

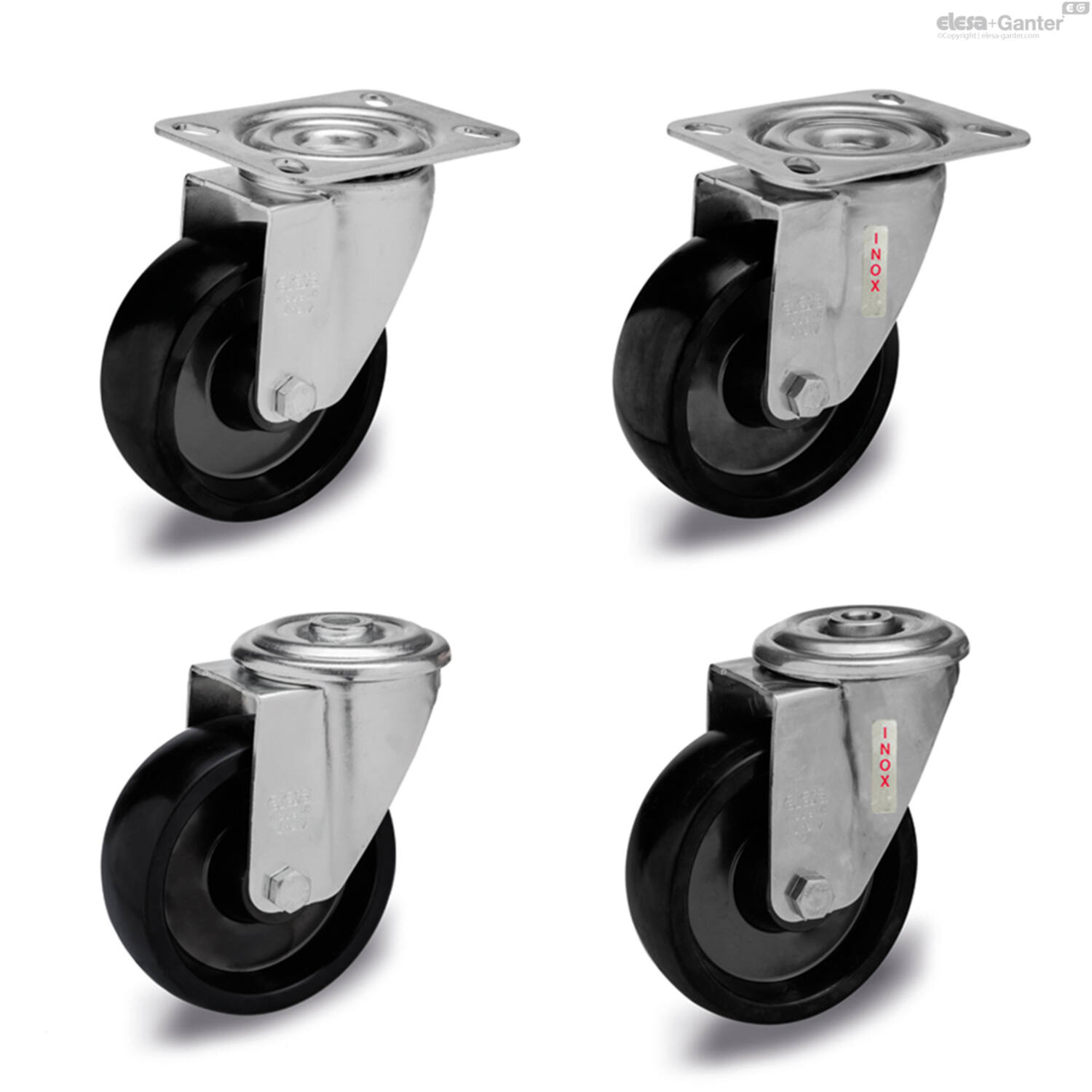

Standard executions

• SBL: turning plate bracket, without brake.
• FBL: turning plate bracket and centre pass-through hole, without brake.

Index for bracket material:

• N: zinc-plated steel plate bracket.
• N-SST: AISI 304 stainless steel bracket.



Applications

Being resistant to high temperatures, RE.F7-N-HT wheel is particularly suitable for use in food industries and cooking ovens, especially in the baking sector.
