RE.F8-N

Wielen van technopolymeer

Wheel centre body

Polyamide-based technopolymer (PA).

Rolling action

Hub with pass-through hole.

Fixed plate bracket

Zinc-plated steel or AISI 304 stainless steel (SST version) sheet, the bracket is designed to withstand loads up to 3000N.

Turning plate bracket

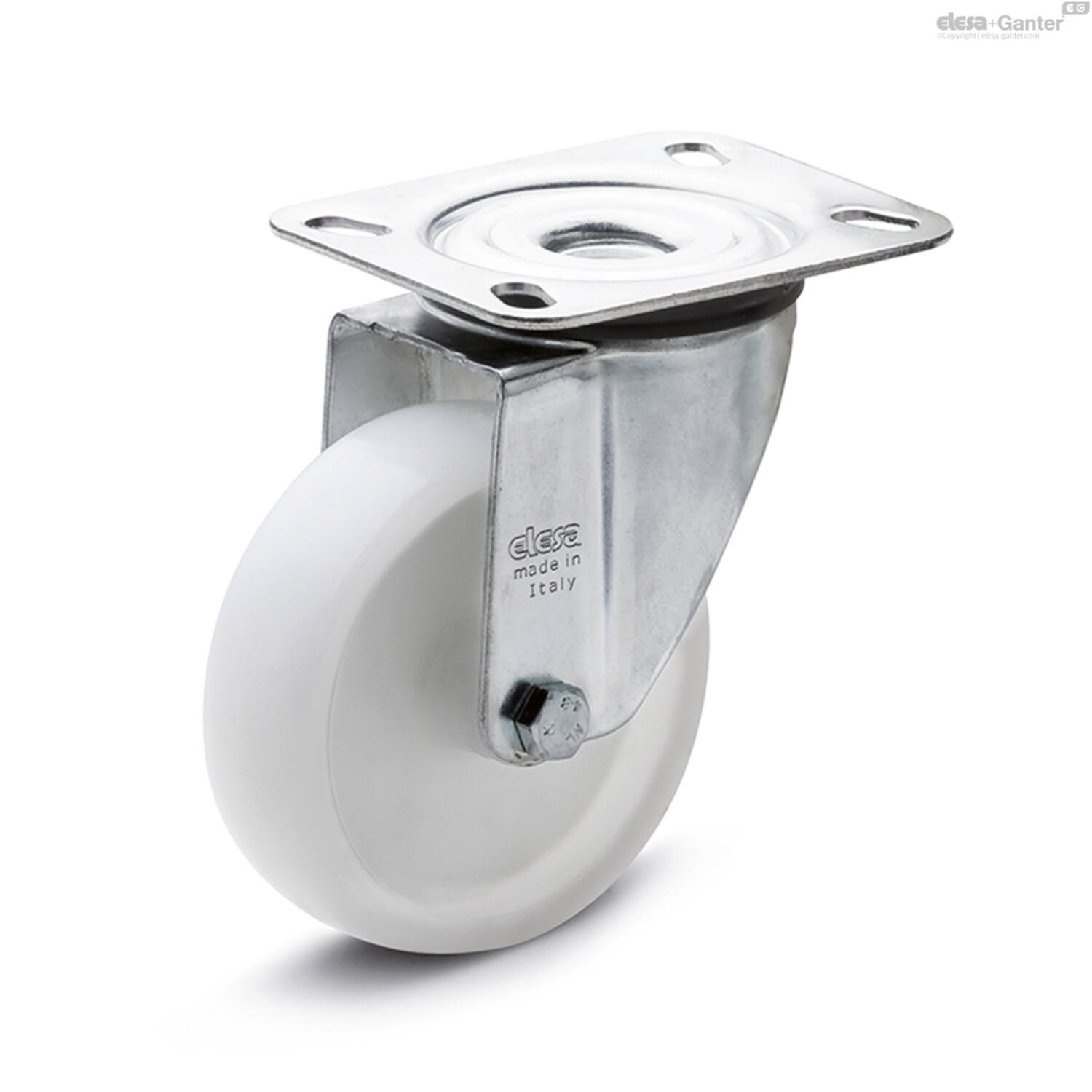

Zinc-plated steel or AISI 304 stainless steel (SST version) sheet, the bracket is designed to withstand loads up to 3000N. The presence of a double ball race turns and the direct contact between the plate and the ball race ring with built-in pin ensure excellent manoeuvrability. Does not require maintenance. It consists of (see Fig.1):

1. fitting plate: electrolytically zinc-plated steel or AISI 304 stainless steel sheet;
2. fork: electrolytically zinc-plated steel or AISI 304 stainless steel sheet;
3. ball race ring: electrolytically zinc-plated steel or AISI 304 stainless steel sheet;
4. central pin: incorporated in the plate, cold reflanged;
5. rotation system: dual grease-lubricated ball race;
6. dust seal: RAL 7015 dark grey technopolymer.

Brake

Total brake that locks the wheel and bracket rotation. The optimised dimensions and the retractable pedal ensure minimal space occupied and maximum actuation ease. Hardened carbon steel or stainless steel (SST version) spring.

Standard executions

• PBL: fixed plate bracket, without brake.
• SBL: turning plate bracket, without brake.
• SBF: turning plate bracket, with brake.
• FBL: turning plate bracket and centre pass-through hole, without brake.
• FBF: turning plate bracket and centre pass-through hole, with brake.

Index for bracket material:

• N: zinc-plated steel plate bracket.
• N-SST: AISI 304 stainless steel bracket.



Applications

Excellent wear and tearing resistance. For further information see RE.F8.
