SFV.
Ontluchtingsdop met enkel ventiel
Omschrijving
Cover
Polyamide based (PA) technopolymer, semi-matte finish.

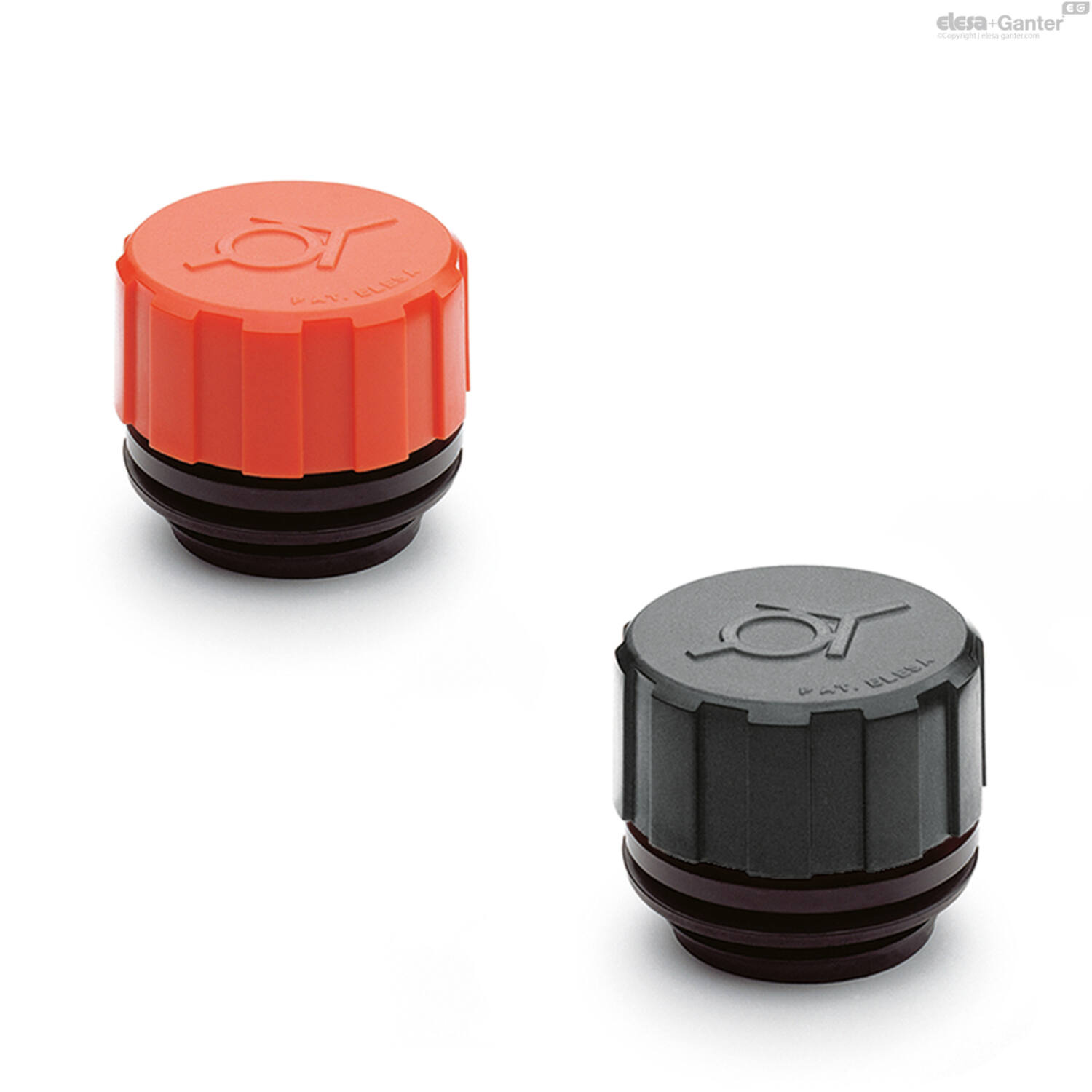

- SFV.: RAL 2004 orange, with graphic symbol ""valve"".
- SFV.....-C9: RAL 9005 black colour, with graphic symbol ""valve"".
- SFV.....-C2-N: RAL 2004 orange, without graphic symbol ""valve"".
- SFV.....-C9-N: RAL 9005 black colour, without graphic symbol ""valve"".
Threaded fitting
Polyamide based (PA) technopolymer, black colour, semi-matte finish.
Packing ring
NBR synthetic rubber.
Sealing disk
Technopolymer with NBR synthetic rubber O-ring.
Spring
Stainless steel
Standard executions
- SFV-10 mb: valve (sealing disk) opens when pressure exceeds 0.010 bar (set at 10 mb).
- SFV-100 mb: valve (sealing disk) opens when pressure exceeds 0.100 bar (set at 100 mb).
Features and applications
SFV. valve breather caps are particularly suitable for all those applications (speed reducers, variators or compressors) when the internal air pressure must not exceed a certain value (10 or 100 mb).
In these cases, the safety valve of the cap allows the expulsion of the exceeding air in the reservoir, thus re-establishing the pressure values for which the valve is set.
Sealing disc (closed in normal pressure conditions) prevents dust from getting in and oil-losses.
Uitvoering
Scroll onderstaande tabel om meer te zien
Code |
Product omschrijving |
Aantal |
Prijs |
Bestel |
CAD |
L# |
h |
d2 |
Gewicht (g) |
D |
d |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Filter |
|
|
|
|
|
|
|||||
| 201001690 | SFV.1 100mb |
|
36.5 | 11.5 | 17 | 25 | 42 | G 1 | |||
| 470046120 | SFV.1 100mb-C9 |
|
36.5 | 11.5 | 17 | 25 | 42 | G 1 | |||
| 201001650 | SFV.1/2 100mb |
|
29.5 | 9.5 | 10 | 12 | 31 | G 1/2 | |||
| 470046108 | SFV.1/2 100mb-C9 |
|
29.5 | 9.5 | 10 | 12 | 31 | G 1/2 | |||
| 201001610 | SFV.1/4 100mb |
|
29.5 | 9.5 | 8 | 11 | 31 | G 1/4 | |||
| 470046096 | SFV.1/4 100mb-C9 |
|
29.5 | 9.5 | 8 | 11 | 31 | G 1/4 | |||
| 201001530 | SFV.16x1.5 100mb |
|
29.5 | 9.5 | 10 | 12 | 31 | M16x1.5 | |||
| 470046072 | SFV.16x1.5 100mb-C9 |
|
29.5 | 9.5 | 10 | 12 | 31 | M16x1.5 | |||
| 201001550 | SFV.18x1.5 100mb |
|
29.5 | 9.5 | 10 | 12 | 31 | M18x1.5 | |||
| 470046078 | SFV.18x1.5 100mb-C9 |
|
29.5 | 9.5 | 10 | 12 | 31 | n.v.t. | |||
| 201001570 | SFV.20x1.5 100mb |
|
29.5 | 9.5 | 10 | 12 | 31 | M20x1.5 | |||
| 470046084 | SFV.20x1.5 100mb-C9 |
|
29.5 | 9.5 | 10 | 12 | 31 | M20x1.5 | |||
| 201001590 | SFV.22x1.5 100mb |
|
29.5 | 9.5 | 10 | 13 | 31 | M22x1.5 | |||
| 470046090 | SFV.22x1.5 100mb-C9 |
|
29.5 | 9.5 | 10 | 13 | 31 | M22x1.5 | |||
| 201001670 | SFV.3/4 100mb |
|
36.5 | 11.5 | 17 | 23 | 42 | G 3/4 | |||
| 470046114 | SFV.3/4 100mb-C9 |
|
36.5 | 11.5 | 17 | 23 | 42 | G 3/4 | |||
| 201001630 | SFV.3/8 100mb |
|
29.5 | 9.5 | 10 | 12 | 31 | G 3/8 | |||
| 470046102 | SFV.3/8 100mb-C9 |
|
29.5 | 9.5 | 10 | 12 | 31 | G 3/8 | |||
