TCR. Vuldoppen
TCR. 1
TCR. 2

TCR.
Vuldoppen

Bekijk volledig
__logo__ELE_OD__ __logo__RoHS__ __logo__PA__ __logo__g10030__

Omschrijving

1Main specifications

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Packing ring

NBR synthetic rubber O-Ring.

The positioning of the O-Ring in its housing guarantees a high tightening torque.

Maximum continuous working temperature

100°C.

Graphic symbol ""fill""

According to DIN regulations.

2Accessories on request

Accessories on request

TCR. oil fill plugs are suitable for mounting aluminium plates with graphic symbols type MH.-.

Uitvoering

TCR.
TCR. Vuldoppen
Sleep voor meer info
Toon alleen voorraad
Filters resetten 		Filter:

Code

Product omschrijving

Aantal

Prijs

Bestel

CAD
470002254 TCR.1
€ 3,34
470002256 TCR.1 1/2
€ 5,22
470002255 TCR.1 1/4
€ 4,86
470002252 TCR.1/2
€ 2,07
109600001 TCR.1/4
€ 2,12
470002253 TCR.3/4
€ 2,66
470002251 TCR.3/8
€ 2,46
470002261 TCRF.1
€ 3,25
470002263 TCRF.1 1/2
€ 5,10
470002262 TCRF.1 1/4
€ 4,71
470002259 TCRF.1/2
€ 2,10
470002260 TCRF.3/4
€ 2,71

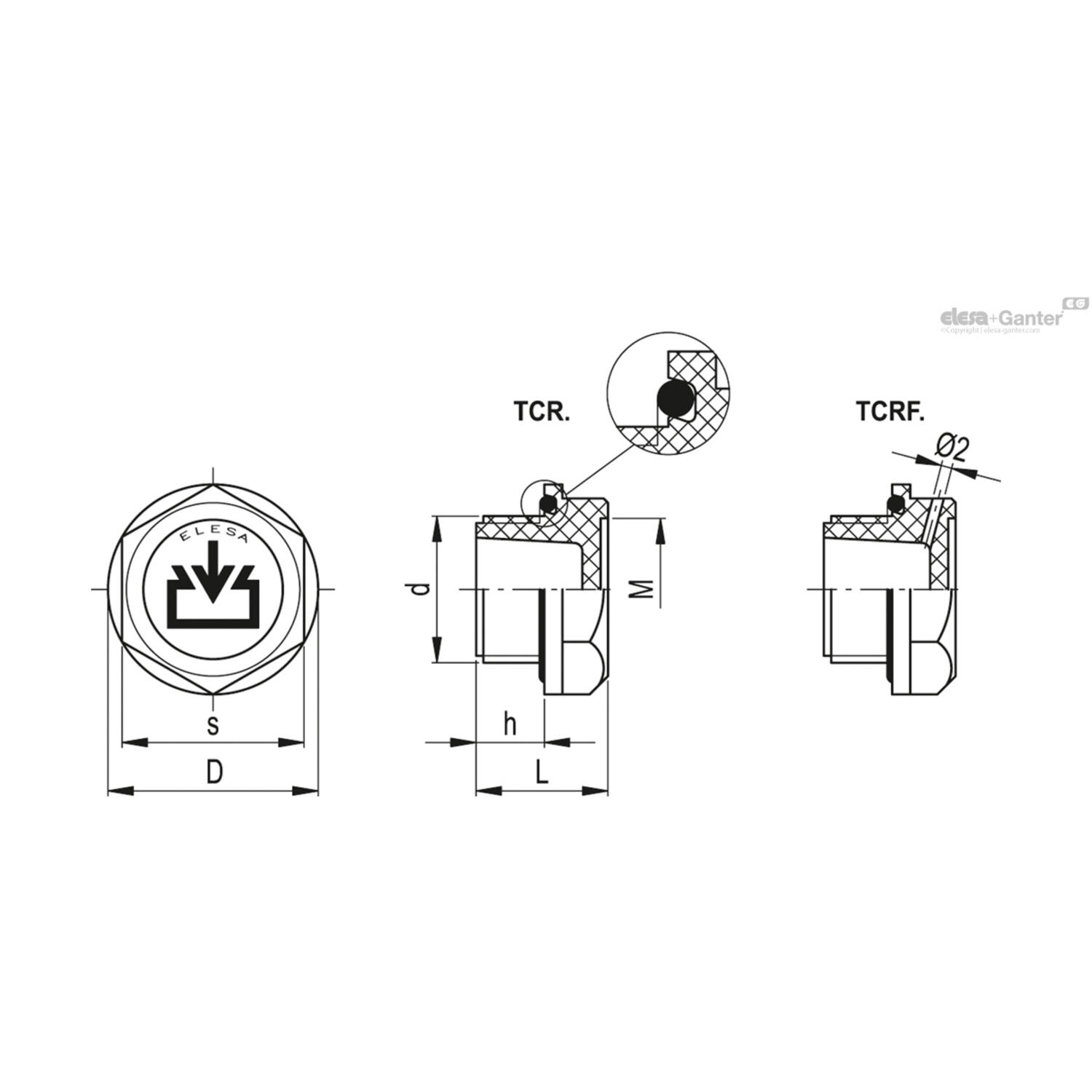

L

h

Gewicht (g)

D

s

d

aanhaalmoment eenheid

m
23 13 18 44 38 G 1 12÷15 31
28 15 51 63.5 55 G1 1/2 15÷18 46
26 14 32 53.5 46 G1 1/4 15÷18 38
20 11 8 32 27 G 1/2 8÷10 20.5
17 9 4 22 19 G 1/4 4÷6 15
22 12 14 37 32 G 3/4 10÷12 25
18 9 6 25.5 22 G 3/8 8÷10 17
23 13 18 44 38 G 1 12÷15 31
28 15 51 63.5 55 G1 1/2 15÷18 46
26 14 32 53.5 46 G1 1/4 15÷18 38
20 11 8 32 27 G 1/2 8÷10 20.5
22 12 14 37 32 G 3/4 10÷12 25
