TLA. Spansluitingen
TLA.SST 1
TLA.SST 2

TLA.
Spansluitingen

Verzinkt staal of RVS (1.4301 = A2 = AISI304) of vernikkeld staal

Bekijk volledig
__logo__INOX__ __logo__RoHS__

Omschrijving

1Main specifications

Standard executions

  • TLA: basic hook clamp.
  • TLAL: hook clamp with padlock hole.
  • TLAS: hook clamp with security stop and technopolymer push button in RAL 3000 red colour or with stainless steel spring.

Indexes for materials and treatments to add to the above-mentioned standard executions:

  • Z: lever body and bracket in zinc-plated steel.
  • SST: lever body and bracket in AISI 304 stainless steel.
  • NH: lever body and bracket in nickel-plated steel.
2Other executions

Special executions on request

  • Hook clamps in unplated steel.
  • Catch brackets in different shapes and finishes.

Uitvoering

TLA.Z
TLA.Z Spansluiting met spanbeugel, verzinkt staal
TLA.SST
TLA.SST Spansluiting met spanbeugel, RVS
Sleep voor meer info
Toon alleen voorraad
Filters resetten 		Filter:

Code

Product omschrijving

Aantal

Prijs

Bestel

CAD
200901500 TLA.SST-16.4/102+R
€ 3,39
200901040 TLA.SST-23/140.5+R
€ 7,22
200901102 TLA.SST-30/193.5+R
€ 19,25

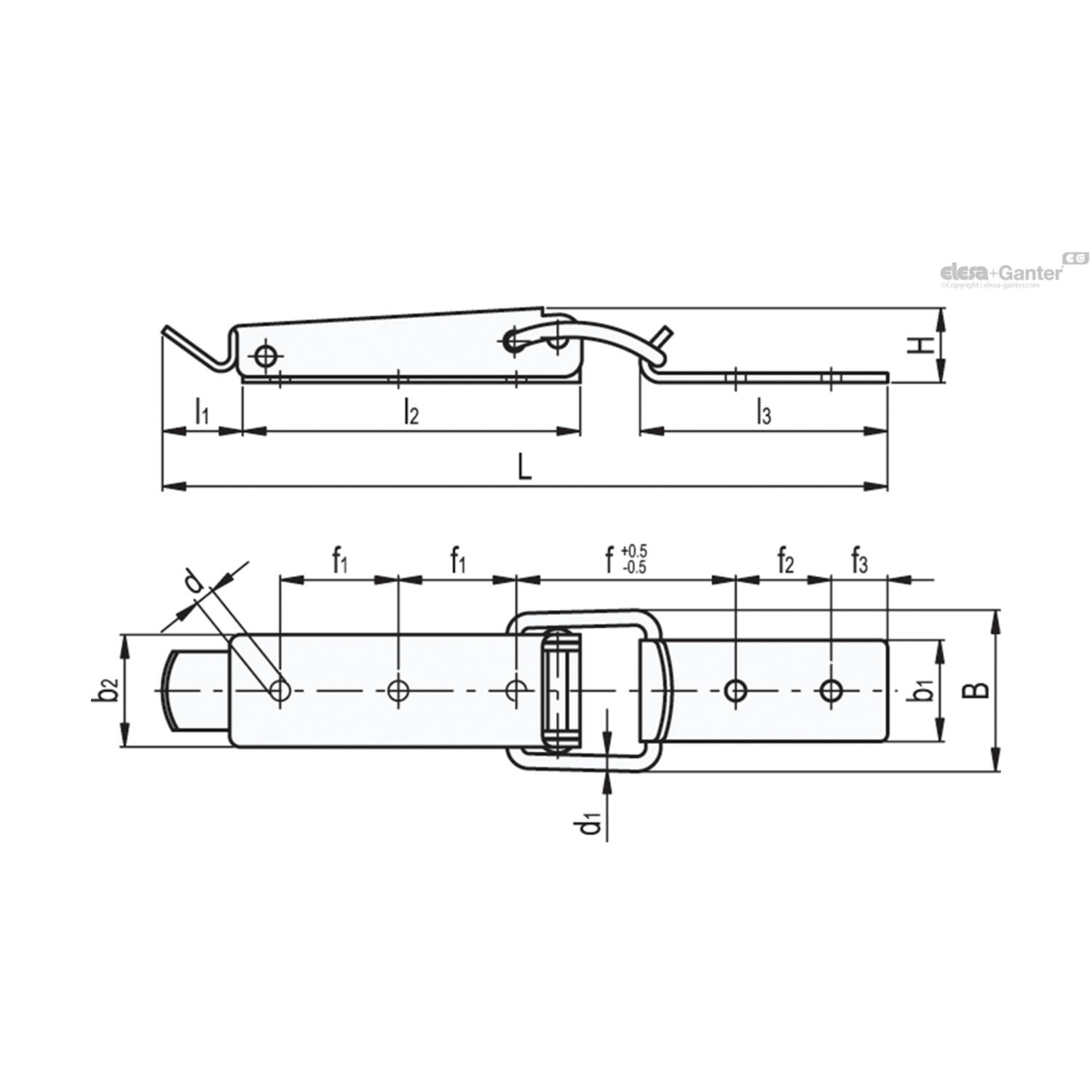

b2

h

l1

l3

f

Gewicht (g)

d

b1

d1

B

l2
n.v.t. 11 16 30 n.v.t. 31 n.v.t. 13 2 23 44
23 12.5 16 43 38 78 n.v.t. 19 3 34 70
30 19 21.5 66 n.v.t. 188 5.3 27 4 43 90
