TMB. Vuldoppen
TMB. 1

TMB.
Vuldoppen

Bekijk volledig
__logo__ELE_OD__ __logo__RoHS__ __logo__AN__ __logo__g10030__ __logo__g18030__ __logo__HTrosso__

Omschrijving

1Main specifications

Material

Black anodised aluminium.

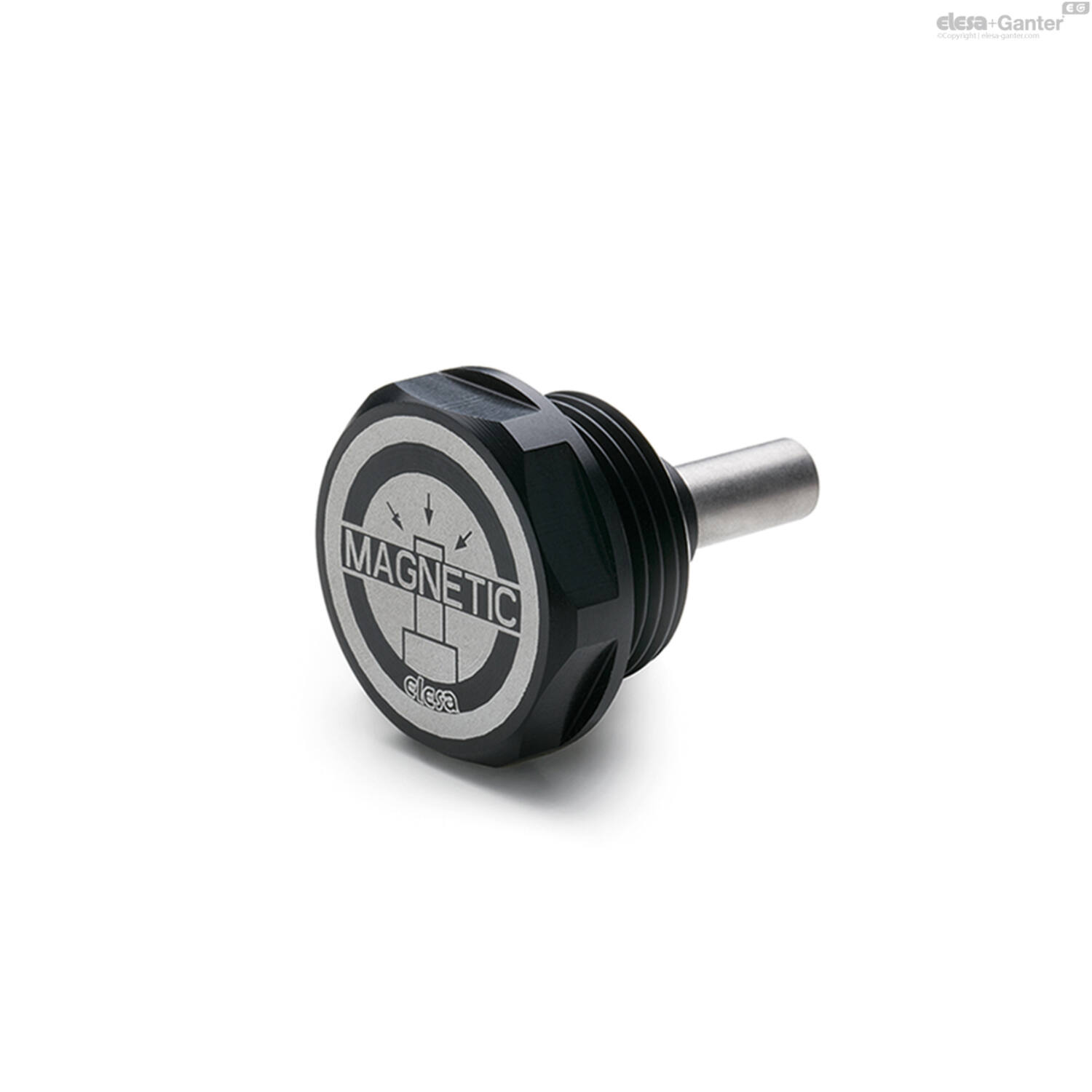

Marked ""MAGNETIC"" and graphic symbol, laser engraved.

Permanent magnetic element

(AINiCo) Aluminium-nickel-cobalt with a high attractive power, to keep metal particles in oil.

Standard executions

  • TMB: NBR synthetic rubber flat packing ring. Max working temperature 100°C.
  • TMB-HT: FKM synthetic rubber flat packing ring. Max working temperature 180°C.
2General information

Technical data

The positioning of the packing ring in its housing guarantees a high tightening torque, therefore the plug can be used even in pressurised reservoirs.

Uitvoering

TMB.
TMB. Magnetische plug
Sleep voor meer info
Toon alleen voorraad
Filters resetten 		Filter:

Code

Product omschrijving

Aantal

Prijs

Bestel

CAD
201522675 TMB-HT.1
€ 17,93
201522685 TMB-HT.1 1/2
€ 27,13
201522680 TMB-HT.1 1/4
€ 19,81
201522665 TMB-HT.1/2
€ 13,35
201522655 TMB-HT.1/4
€ 10,32
201522670 TMB-HT.3/4
€ 16,03
201522660 TMB-HT.3/8
€ 11,59
201522610 TMB-HT.M14x1,5
€ 10,32
201522615 TMB-HT.M16x1,5
€ 11,59
201522620 TMB-HT.M20x1,5
€ 13,35
201522625 TMB-HT.M26x1,5
€ 16,03
201522630 TMB-HT.M27x1,5
€ 16,03
201522635 TMB-HT.M33x1,5
€ 17,93
201522640 TMB-HT.M40x1,5
€ 19,81
201522645 TMB-HT.M42x1,5
€ 19,81
201522650 TMB-HT.M42x2
€ 19,81
201522595 TMB.1
€ 16,30
201522605 TMB.1 1/2
€ 24,62
201522600 TMB.1 1/4
€ 18,06
201522585 TMB.1/2
€ 12,20
201522575 TMB.1/4
€ 9,37
201522590 TMB.3/4
€ 14,57
201522580 TMB.3/8
€ 10,52
201522530 TMB.M14x1,5
€ 9,37
201522535 TMB.M16x1,5
€ 10,52
201522540 TMB.M20x1,5
€ 12,20
201522545 TMB.M26x1,5
€ 14,57
201522550 TMB.M27x1,5
€ 14,57
201522555 TMB.M33x1,5
€ 16,30
201522560 TMB.M40x1,5
€ 18,06
201522565 TMB.M42x1,5
€ 18,06
201522570 TMB.M42x2
€ 18,06

L

h

Gewicht (g)

s

d

d1

m
20.5 11.5 65 38 G 1 8 35.5
24 13 131 50 G 1 1/2 8 37
24 13 107 46 G 1 1/4 8 37
18.5 11 28 24 G 1/2 8 34
16.5 9 14 19 G 1/4 6 30
20 11.5 45 32 G 3/4 8 35.5
16.5 9 22 22 G 3/8 8 31
16.5 9 14 19 M14x1.5 6 30
16.5 9 22 22 M16x1.5 8 31
18.5 11 28 24 M20x1.5 8 34
20 11.5 45 32 M26x1.5 8 35.5
20 11.5 46 32 M27x1.5 8 35.5
20 11.5 65 38 M33x1.5 8 35.5
24 13 107 46 M40x1.5 8 37
24 13 110 46 M42x1.5 8 37
24 13 113 46 M42x2 8 37
20.5 11.5 65 38 G 1 8 35.5
24 13 131 50 G 1 1/2 8 37
24 13 107 46 G 1 1/4 8 37
18.5 11 28 24 G 1/2 8 34
16.5 9 14 19 G 1/4 6 30
20 11.5 45 32 G 3/4 8 35.5
16.5 9 22 22 G 3/8 8 31
16.5 9 14 19 M14x1.5 6 30
16.5 9 22 22 M16x1.5 8 31
18.5 11 28 24 M20x1.5 8 34
20 11.5 45 32 M26x1.5 8 35.5
20 11.5 46 32 M27x1.5 8 35.5
20 11.5 65 38 M33x1.5 8 35.5
24 13 107 46 M40x1.5 8 37
24 13 110 46 M42x1.5 8 37
24 13 113 46 M42x2 8 37
