VAD-XX

Handwielen voor tellers

Opmerking: Handwiel voor zwaartekracht of positieve aandrijving positie indicator

Bekijk volledig

Omschrijving

1Main specifications

Material

Aluminium, epoxy resin coating, black colour, matte finish.

Standard executions

H7 reamed through hole.

Revolving handle (for +I versions)I.621+x- in polyamide based (PA) technopolymer, black colour, matte finish.

  • VAD-GXX: for gravity indicators, without handle.
  • VAD-GXX+I: for gravity indicators, with handle.
  • VAD-PXX: for positive drive indicators, without handle.
  • VAD-PXX+I: for positive drive indicators, with handle.

Rear flange with internal crown gear wheel in acetal resin based (POM) technopolymer. Black-oxide steel screw and anchor pin.

2General information

Indicator choice (to be ordered separately)

To choose the indicator see the table below for possible assembly with indicators.

See also ""Assembly instructions"" for gravity indicators type G or positive drive indicators type P.

Scroll onderstaande tabel om meer te zien

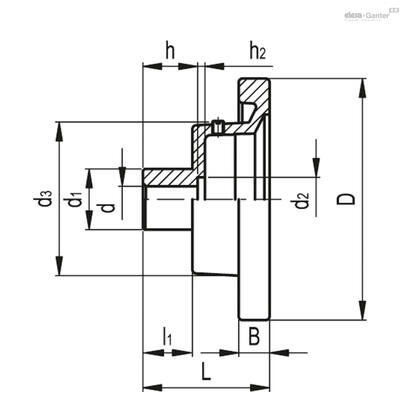

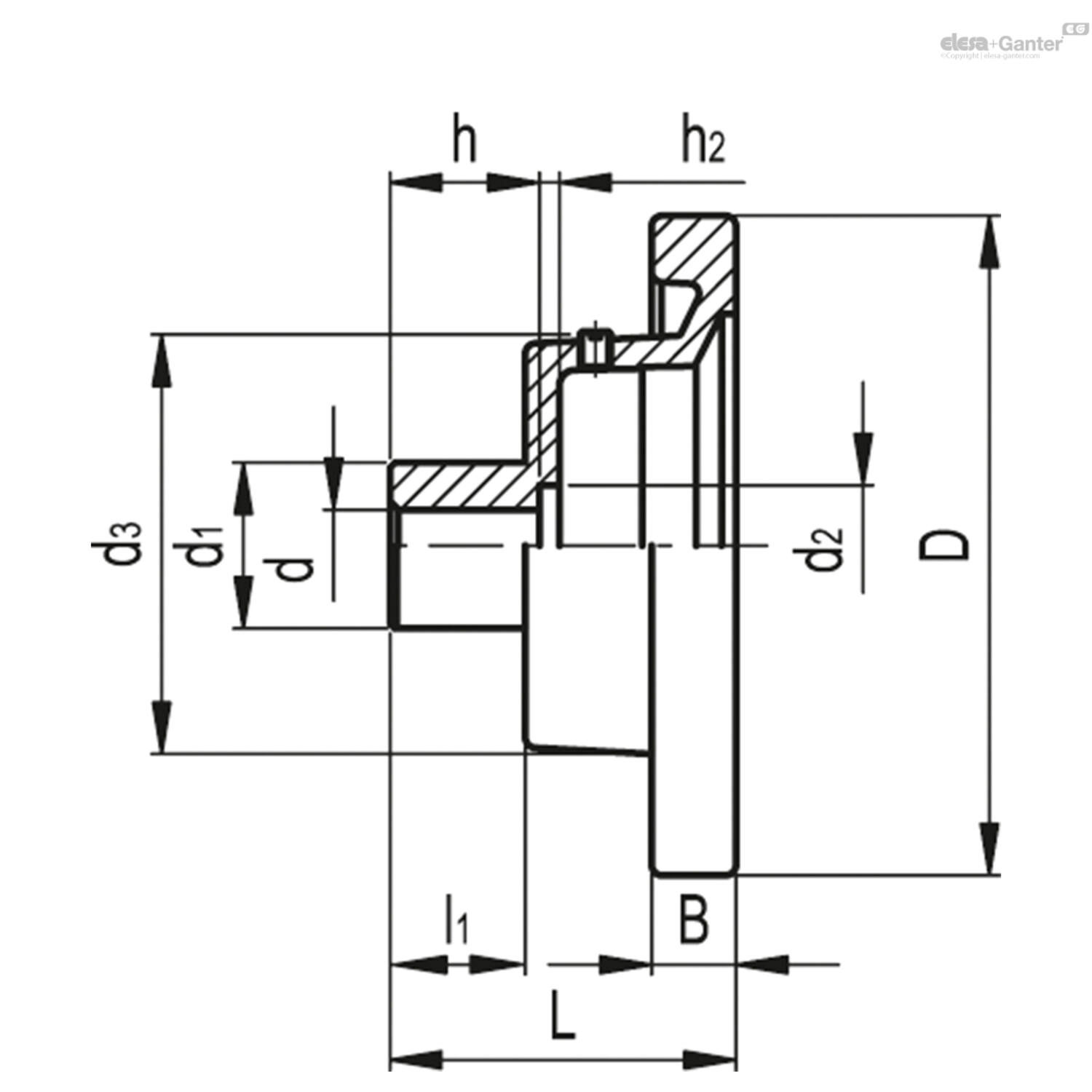

Code

Product omschrijving

Aantal

Prijs

Bestel

CAD

h2

L

h

d2

l1

handwiel met indicator comb.

Gewicht (g)

D

d1

d3

dH7

B

Filter
201207140 VAD.100-GXX1 A-10
€ 62,42
3.5 58 17 20.5 17.5 GA01 - GA11 235 100 28 56 10 14
201207180 VAD.125-GXX2 A-12
€ 76,49
4 61 18 25.5 18 GA02 - GA12 - GW12 370 125 31 76 12 15
201207220 VAD.160-GXX2 A-14
€ 99,48
4 68 20 29 19 GA02 - GA12 - GW12 625 160 36 78 14 18
201207260 VAD.160-GXX5 A-14
€ 136,52
4 64 23.5 25.5 20 GA05 760 160 36 120 14 18
201207291 VAD.200-GXX2 A-18
€ 141,28
4.5 75 24 33 21 GA02 - GA12 - GW12 980 200 42 79 18 20.5
201207293 VAD.250-GXX2 A-22
€ 201,54
4.5 81.5 28 37 24.5 GA02 - GA12 - GW12 1500 250 48 80 22 23
201207100 VAD.80-GXX1 A-10
€ 53,17
3.5 48 16 20.5 15.5 GA01 - GA11 175 80 26 56 10 13
