VC.792-XX

Handwielen voor positieindicatoren

Omschrijving

1Main specifications

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Standard executions

Black-oxide steel boss, H7 reamed hole, fitting to shaft by means of a supplied grub screw with hexagon socket and cup end UNI 5929-85.

  • VC.792-GXX: for gravity indicators.
  • VC.792-PXX: for positive drive indicators.

Rear flange with internal crown gear wheel in acetal resin based (POM) technopolymer. Black-oxide steel screw and anchor pin.

2General information

Features and applications

The ergonomic design enables an effective grip. The lobed shape with no cavities prevents unhealthy residues from depositing and guarantees perfect cleaning. Particularly suitable for applications on machines and equipment whose parts must be frequently cleaned by using water jets or steam.

Indicator choice (to be ordered separately)

To choose the indicator see the table below for possible assembly with indicators.

See also ""Assembly instructions"" for gravity indicators type G or positive drive indicators type P.

3Accessories on request

Accessories on request

Cover CP-XX- for use without the indicator.

4Special executions on request

Special executions on request

Knob with stainless steel boss.

Scroll onderstaande tabel om meer te zien

Code

Product omschrijving

Aantal

Prijs

Bestel

CAD

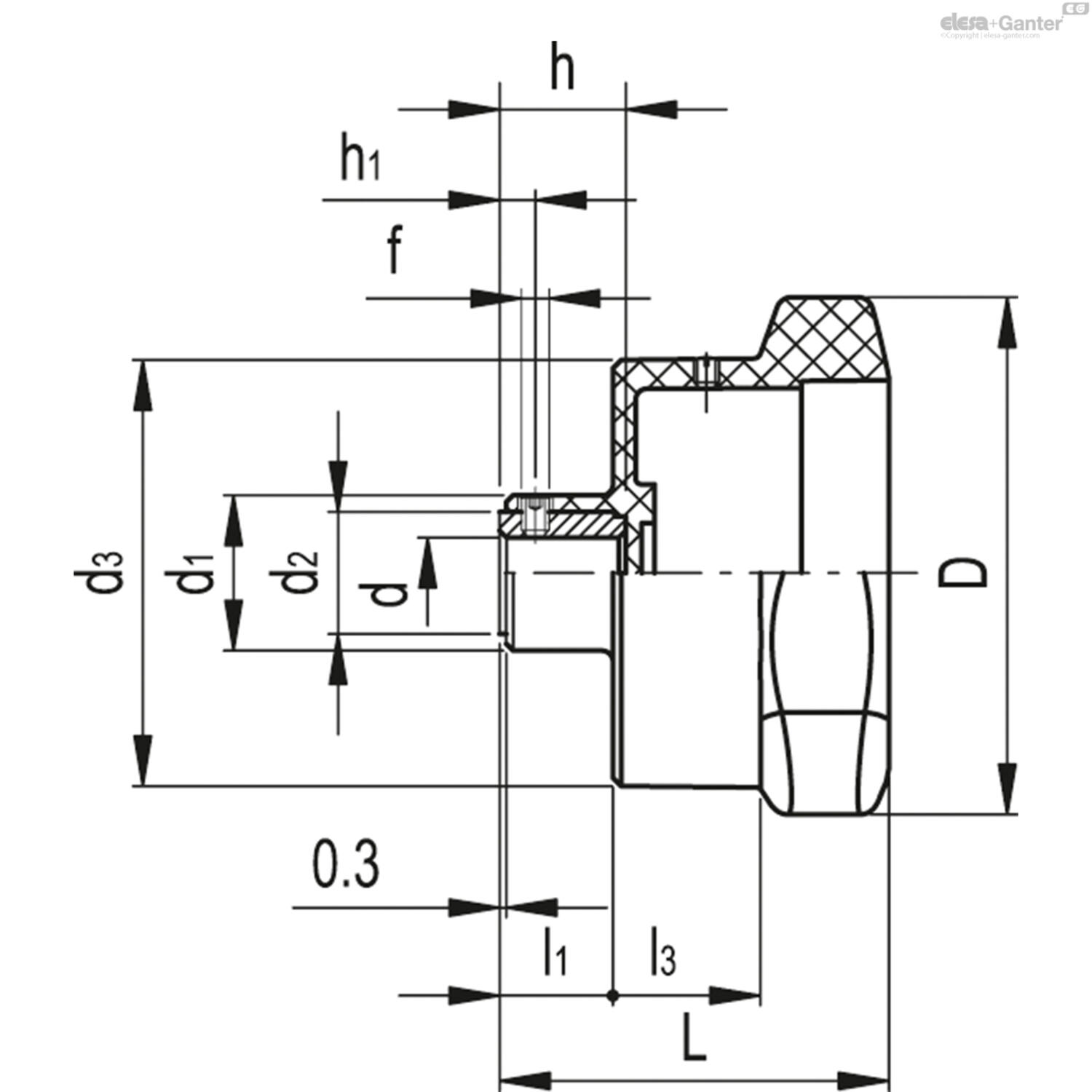

L

h

d2

l1

handwiel met indicator comb.

l3

f

Gewicht (g)

D

d1

h1

d3

dH7

Filter
201578025 VC.792/72-GXX1 A-10
€ 12,79
52 17 18 15.9 GA01 - GA11 19 M5 79 72 24 6 56 10
201578035 VC.792/98-GXX2 A-12
€ 15,74
58 22 22 20.5 GA02 - GA12 - GW12 19 M5 147 98 27.5 6 76.5 12
