FRB+C Vulzeef met flens
FRB+C 1
FRB+C 2

FRB+C

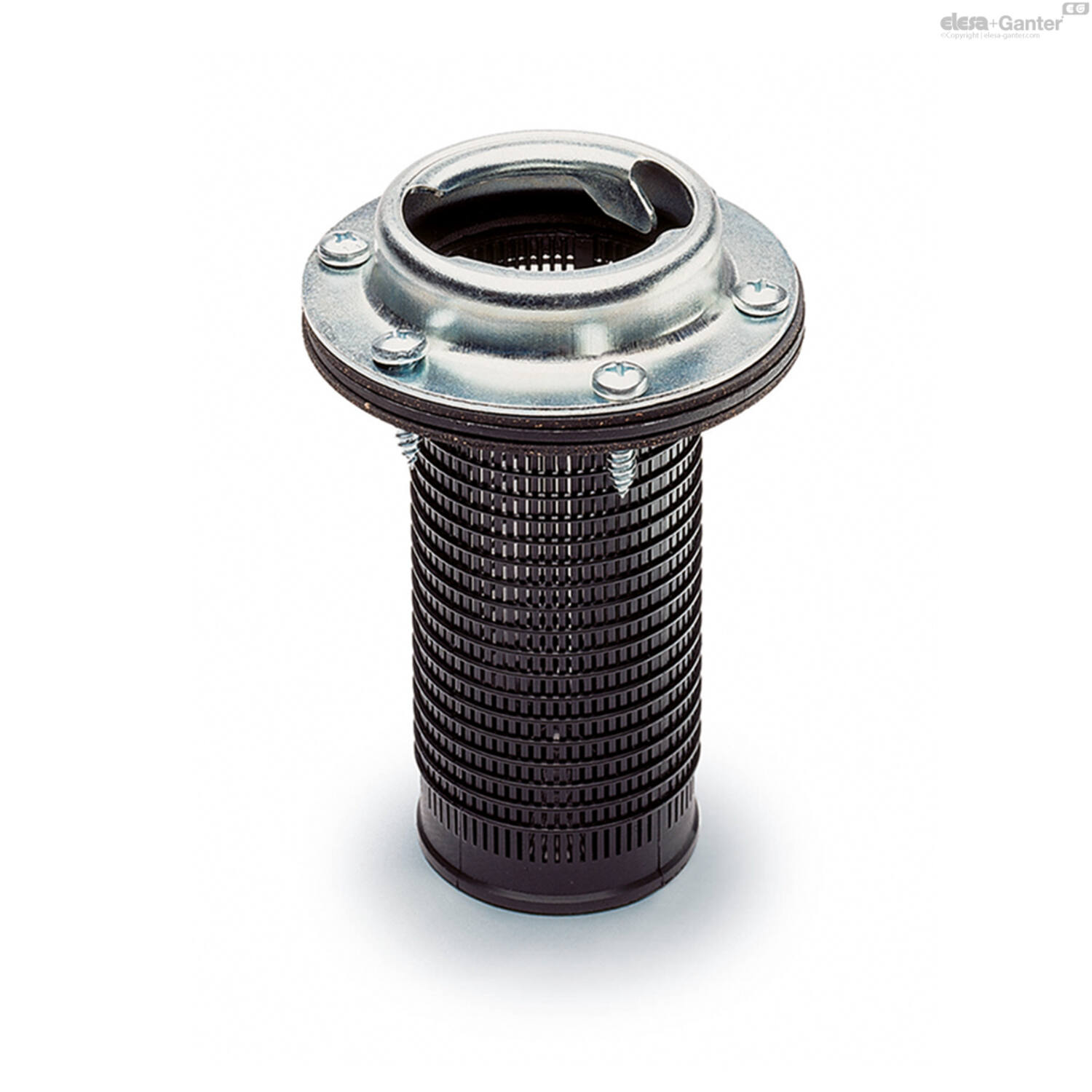

Vulzeef met flens

Bekijk volledig
__logo__ELE_OD__ __logo__IF88__ __logo__RoHS__ __logo__PP__ __logo__g90__

Omschrijving

1Main specifications

Material

  • Flange: zinc-plated steel with bayonet connector.
  • Basket: polypropylene based (PP) technopolymer, black colour.

Packing rings

Cork impregnated MGS based rubber.

Mounting

By means of six zinc-plated steel self-tapping screws TC-N10 (Ø 4.8x19) UNI 6951-DIN 7971, supplied.

2General information

Note

The breather cap to be coupled to the flange is not included in the supply and has to be ordered sepatately.

Depending on the customer's requirements, can be used breather caps type SFN., SFP., SFW..

3Special executions

Special executions on request

Flange with bayonet connector without basket (FRB).

Uitvoering

FRB+C
FRB+C Vulzeef
Sleep voor meer info
Toon alleen voorraad
Filters resetten 		Filter:

Code

Product omschrijving

Aantal

Prijs

Bestel

CAD
201000110 FRB+C
€ 15,40

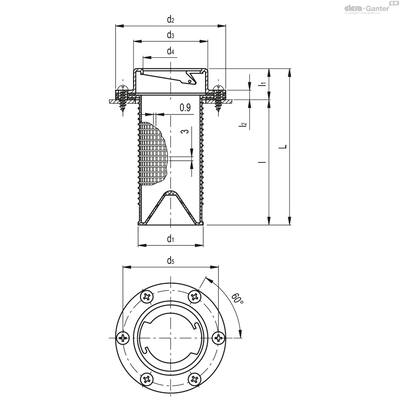

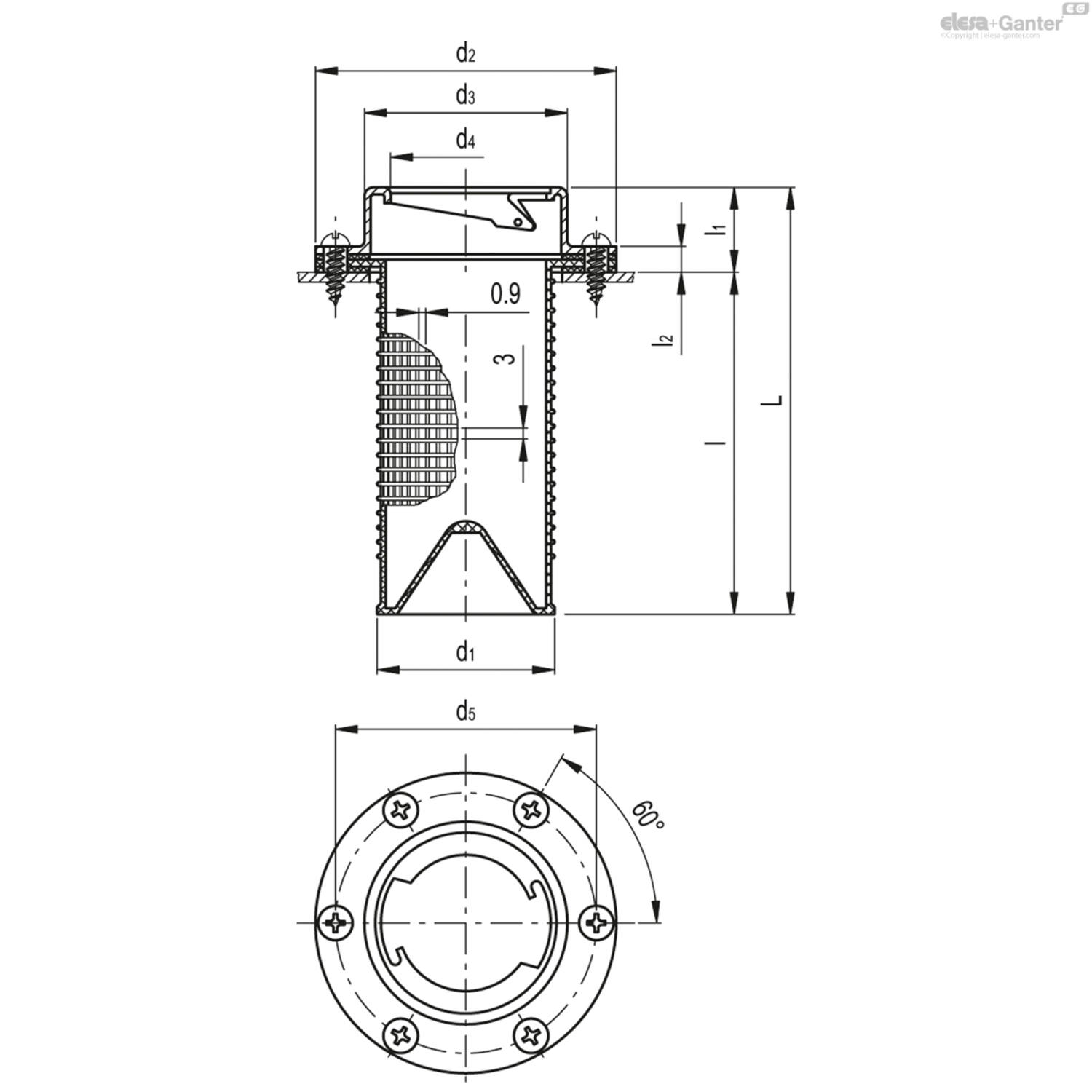

d4

L

d2

l1

Gewicht (g)

d1

l

d3

d5

l2
39 114.5 83 20 125 49 94.5 58 72 7
